Extron DTP T DP 4K 230 DisplayPort Twisted Pair Transmitter
- • Sends one DisplayPort source with embedded audio over a single STP cable run
- • Supports 4K 4096x2160 and UHD 3840x2160 at 30 Hz, plus 2560x1600 at 60 Hz
- • 1080p at 60 Hz reaches 230 ft (70 m); 4K/UHD at 30 Hz reaches 130 ft (40 m)
- • Handles up to 10.8 Gbps, 2.7 Gbps per lane, at a 300 MHz max pixel clock
- • Separate analog stereo audio input on a 3.5 mm jack, -10 dBV nominal level
- • Passes bidirectional RS-232 and IR control on the same twisted pair link
- • Local or remote powering: 3.4 W device draw, 12 W remote power budget
- • Quarter-rack metal enclosure, 4.3 in wide, 0.5 lbs (0.3 kg), no cooling vents
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

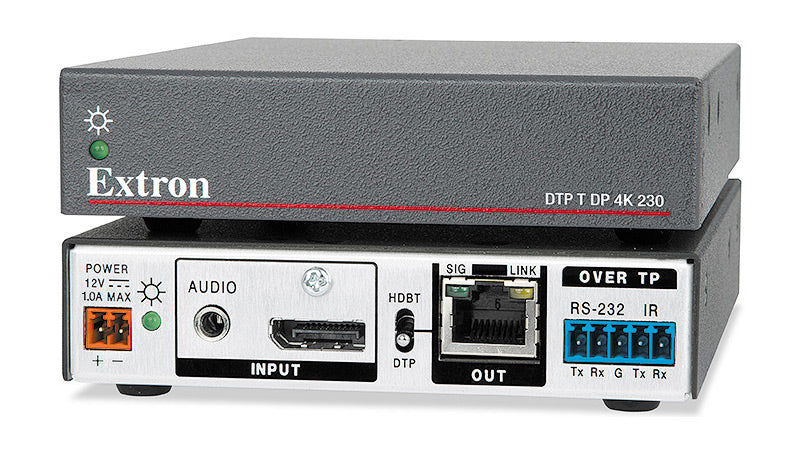

Extron DTP T DP 4K 230 (part number 60-1076-12) — a quarter-rack DisplayPort sending unit for DTP 230 twisted pair links.
This transmitter takes one DisplayPort source and packs its video, embedded digital audio, a separate analog stereo feed, and bidirectional RS-232 and IR control onto a single shielded twisted pair run terminated to TIA/EIA T568B. It is the sending half of a pair; the matching DTP R DP 4K 230 receiver is ordered separately. Because the link carries control and audio alongside the picture, a rack-room DisplayPort source can drive a remote display without pulling a separate cable for every signal type.
Key Capabilities
- Accepts one DisplayPort input on a female DisplayPort connector — DisplayPort 1.1a with HDCP 1.4 and 2.3, Single Stream Transport only.
- Carries up to 10.8 Gbps (2.7 Gbps per lane) with a 300 MHz maximum pixel clock on the transmitter side.
- Handles 4K 4096x2160 and UHD 3840x2160 at 30 Hz, or 2560x1600 at 60 Hz with reduced blanking.
- Adds analog stereo audio on a 3.5 mm jack — greater than 10k ohms DC coupled, -10 dBV nominal, +7 dBV maximum unbalanced.
- Passes RS-232 at 300 to 115200 baud and TTL-level IR from 30 kHz to 60 kHz through the shared 5-pole captive screw port.
- Draws 3.4 watts at the device and can be fed remotely inside a 12 watt remote power budget.

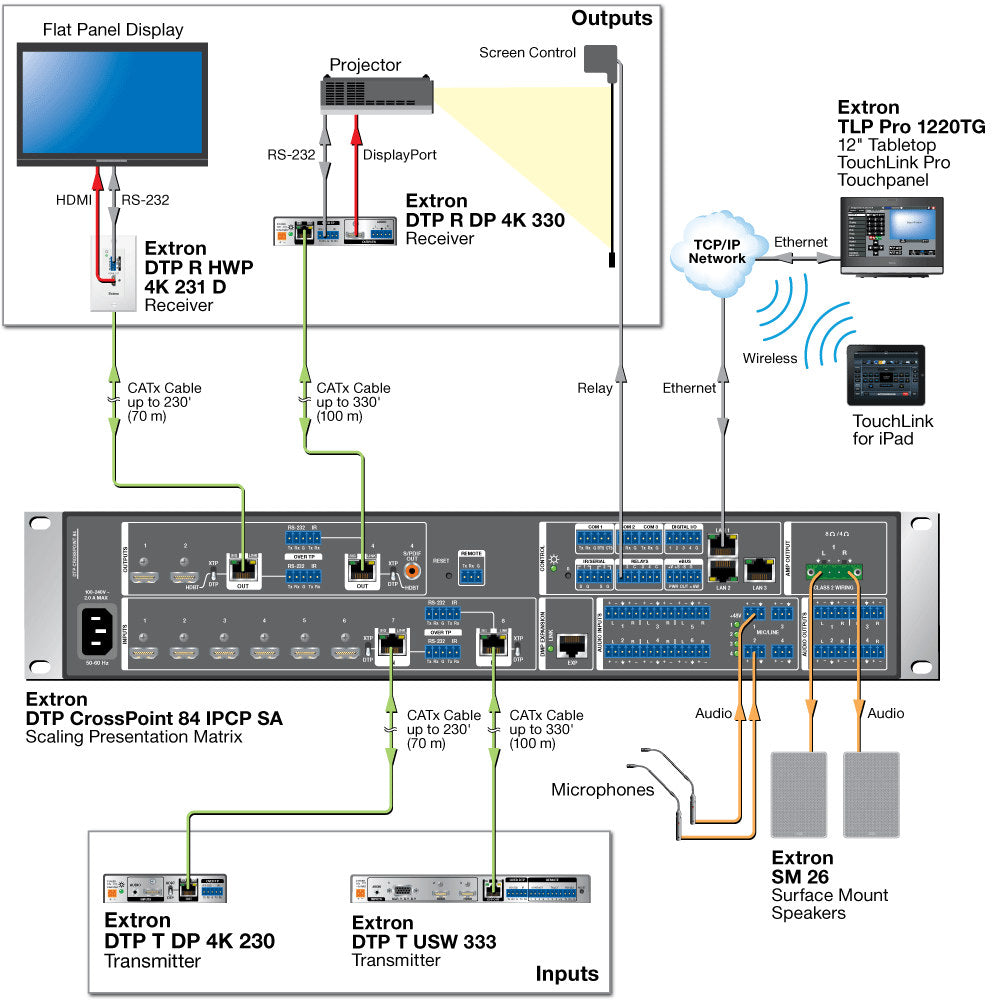

Where It Is Used
Fits boardrooms, lecture halls, classrooms, training suites, control rooms and medical imaging reading areas — anywhere a DisplayPort computer or player lives in a secured rack while the screen sits across the room. Convection cooling with no vents keeps the unit silent inside furniture and credenza installs.
Specifications at a Glance
- Reach: 230 ft (70 m) at 1080p 60 Hz; 130 ft (40 m) at 2560x1600 60 Hz and at 4K/UHD 30 Hz.
- Cable: solid conductor 24 AWG or better; 400 MHz bandwidth STP recommended.
- Enclosure: metal, 1.0" H x 4.3" W x 6.0" D quarter rack wide, 0.5 lbs (0.3 kg).
- Power: external 12 VDC, 1.5 A, 18 watt supply fed from 100-240 VAC.
- Warranty: 3 years parts and labor, plus a 7 year Everlast power supply warranty.
Also referenced as Extron DTPTDP4K230, DTP-T-DP-4K-230, part number 60107612.
