Extron DTP HDMI 4K 230 Tx HDMI Twisted Pair Transmitter
- • Puts HDMI, analog audio and control on one shielded CATx run
- • Covers 230 ft (70 m) at 1080p/60 on 24 AWG STP cable
- • Sends 4K/UHD at 30 Hz, or 60 Hz with 4:2:0 chroma
- • 10.2 Gbps data rate, 300 MHz pixel clock, HDCP 2.3
- • 3.5 mm stereo input at -10 dBV nominal, +7 dBV maximum
- • RS-232 to 115200 baud shares the 5-pole port with IR
- • Only 2.5 W, or remote powered within a 12 W budget
- • 0.5 lb quarter-rack metal case, UL 2043 plenum rated
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

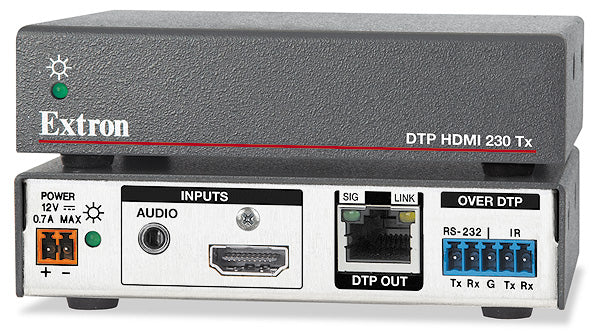

Extron DTP HDMI 4K 230 Tx (part number 60-1271-12) — the source-end transmitter of Extron's DTP HDMI 230 4K pair, folding HDMI, analog audio and control onto one shielded twisted pair cable.
Put this unit next to the laptop, camera or media player. A single female HDMI type A connector takes the source (DVI-D works too with the right cable or adapter), and everything leaves on one female RJ-45 terminated to TIA/EIA T568B. A 3.5 mm stereo jack adds a PC-level analog audio feed alongside the video, and the same 5-pole captive screw connector handles both RS-232 at up to 115200 baud and TTL-level infrared, so room control shares the cable instead of needing its own. The matching DTP HDMI 4K 230 Rx receiver is a separate order.
Key Capabilities
- Sends 4K at 4096x2160 and UHD at 3840x2160 at 30 Hz, or either at 60 Hz using 4:2:0 chroma subsampling
- Handles a 10.2 Gbps maximum data rate and a 300 MHz maximum pixel clock
- Carries HDCP 2.3 protected sources; built to HDMI 1.4, DVI 1.0 and CEA-861E
- Covers 230 feet (70 m) at 1080p/60, and 130 feet (40 m) at 2560x1600 or 4K/UHD
- Accepts a -10 dBV nominal analog stereo input on a 3.5 mm jack, with a +7 dBV unbalanced ceiling
- Consumes just 2.5 watts, or draws remote power from the receiver within a 12 watt budget
Where It Is Used
Lecterns and conference tables where the rack is down the hall, classrooms and training rooms feeding a projector at the front, digital signage head ends, and imaging or command environments where the source workstation and the viewing display cannot share a room. The vented-free metal case cools by convection and is UL rated for plenum airspaces.
Specifications at a Glance
- Video input: 1 female HDMI type A, single link HDMI or DVI-D
- Link: 1 female RJ-45, 24 AWG solid shielded twisted pair rated to 400 MHz
- Control: RS-232 on a 5-pole captive screw shared with IR, 30 kHz to 60 kHz
- Enclosure: metal, 1.0 in H x 4.3 in W x 3.0 in D, quarter rack wide, 0.5 lbs (0.3 kg)
- Thermal dissipation: 7.4 BTU/hr for the device, 10.4 BTU/hr with the supply
Also referenced as Extron DTPHDMI4K230Tx, DTP-HDMI-4K-230-Tx, part number 60127112.
