Extron DTP HDMI 4K 230 Rx HDMI Twisted Pair Receiver
- • Rebuilds HDMI from one shielded CATx run at the display end
- • Reaches 230 ft (70 m) at 1080p/60 over STP cable
- • Passes 4K/UHD at 30 Hz, or 60 Hz with 4:2:0 chroma
- • 10.2 Gbps data rate and 300 MHz pixel clock, HDCP 2.3
- • RS-232 and 30-60 kHz IR pass through on the same cable
- • Draws 4.2 W, or takes remote power within a 12 W budget
- • Quarter-rack metal enclosure, 1.0 lb, convection cooled
- • 3-year warranty; 7 years on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

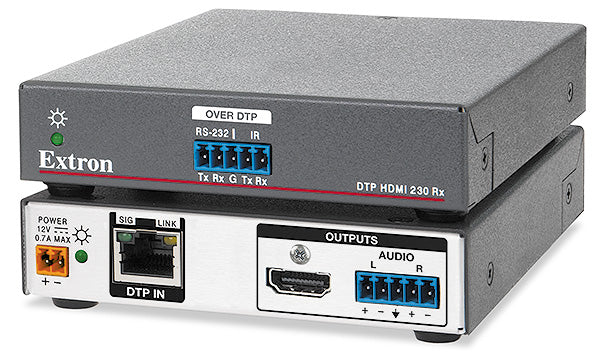

Extron DTP HDMI 4K 230 Rx (part number 60-1271-13) — the display-end receiver of Extron's DTP HDMI 230 4K extension pair, rebuilding HDMI from a single shielded twisted pair run.

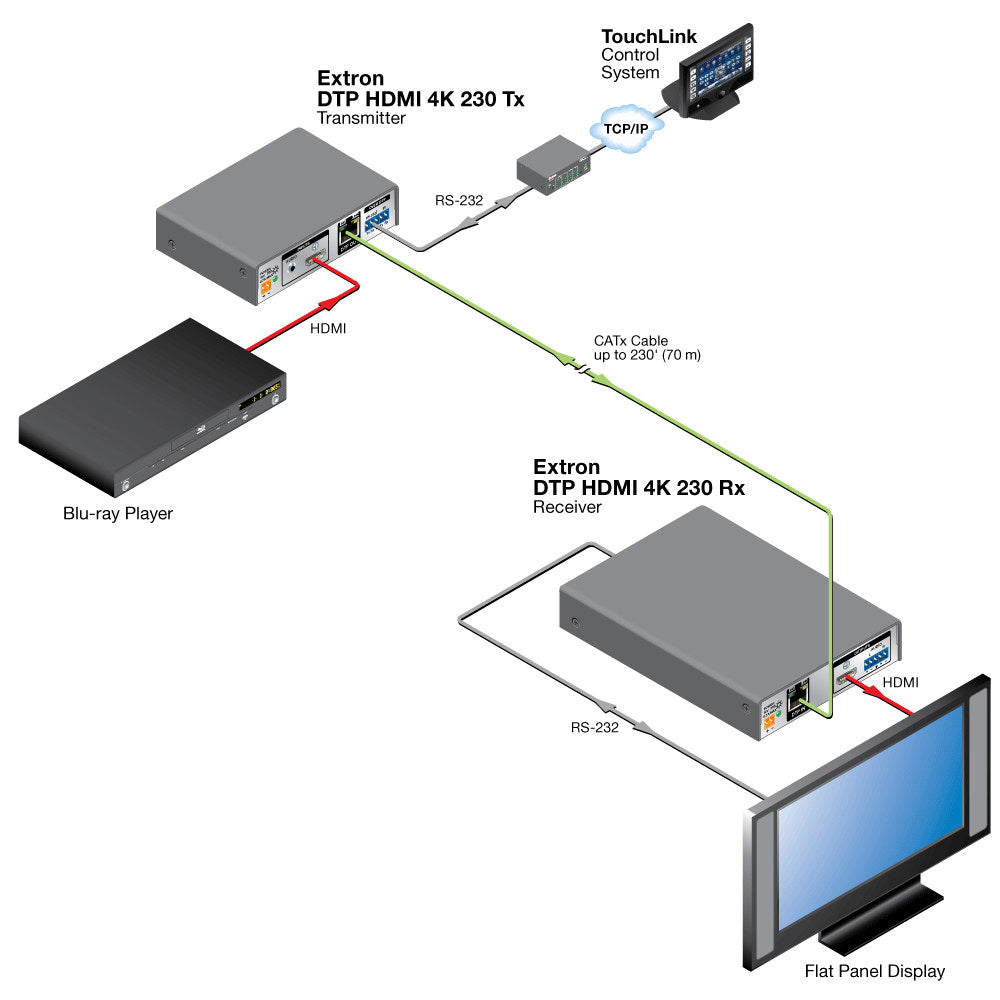

A DTP link always takes two boxes, and this is the one that belongs at the far end. It terminates shielded CATx on a female RJ-45, recovers the digital video stream, and hands it off through one female HDMI type A connector that will also feed a DVI-D sink when an appropriate cable or adapter is fitted. Because serial and infrared commands travel on the same pair, a control processor sitting back in the rack still reaches the projector or panel without a second wire pull. The matching DTP HDMI 4K 230 Tx transmitter is ordered separately.
Key Capabilities
- Delivers 4K at 4096x2160 or UHD at 3840x2160, both at 30 Hz, and either at 60 Hz with 4:2:0 chroma subsampling
- Supports a 10.2 Gbps maximum data rate and a 300 MHz maximum pixel clock
- Passes HDCP 2.3 protected content and conforms to HDMI 1.4, DVI 1.0 and CEA-861E
- Spans 230 feet (70 m) at 1080p/60, or 130 feet (40 m) at 2560x1600 and at 4K/UHD
- Breaks out RS-232 on a 3-pole captive screw connector plus modulated IR from 30 kHz to 60 kHz
- Runs on 4.2 watts locally, or accepts remote power from the transmitter inside a 12 watt budget
Where It Is Used
This end of the pair suits boardrooms and huddle spaces where the codec and switcher live in a closet, classrooms and lecture halls fed by ceiling-mounted projectors, and control rooms or medical imaging suites where a display wall sits well away from the equipment rack. Convection cooling with no vents keeps it silent, and the unit is UL rated for plenum airspaces.
Specifications at a Glance
- Video output: 1 female HDMI type A, single link HDMI or DVI-D
- Link: 1 female RJ-45, TIA/EIA T568B, 24 AWG solid STP rated to 400 MHz
- Analog audio output: 3.5 mm 5-pole captive screw, above +11 dBu balanced into 600 ohms
- Enclosure: metal, 1.0 in H x 4.3 in W x 6.0 in D, quarter rack wide, 1.0 lb (0.5 kg)
- Warranty: 3 years parts and labor, 7 years on the Everlast power supply
Also referenced as Extron DTPHDMI4K230Rx, DTP-HDMI-4K-230-Rx, part number 60127113.
