Extron DTP HD DA8 4K 230 HDMI DTP Distribution Amplifier
- • One HDMI input distributed to 8 DTP 230 twisted-pair outputs
- • 1080p @ 60 Hz travels up to 230 ft (70 m) on shielded twisted pair
- • 4K/UHD and 2560x1600 @ 60 Hz supported out to 130 ft (40 m)
- • Eight female RJ-45 outputs plus a local HDMI and stereo output
- • RS-232 and IR pass through on all 8 DTP endpoints
- • 10.2 Gbps data rate, 300 MHz pixel clock, HDCP 1.4 compliant
- • 1U metal chassis, 5.0 lbs, 78.7 W, 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

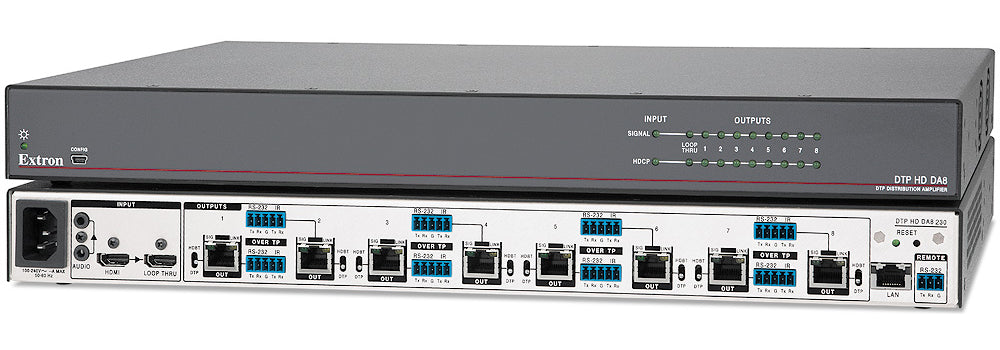

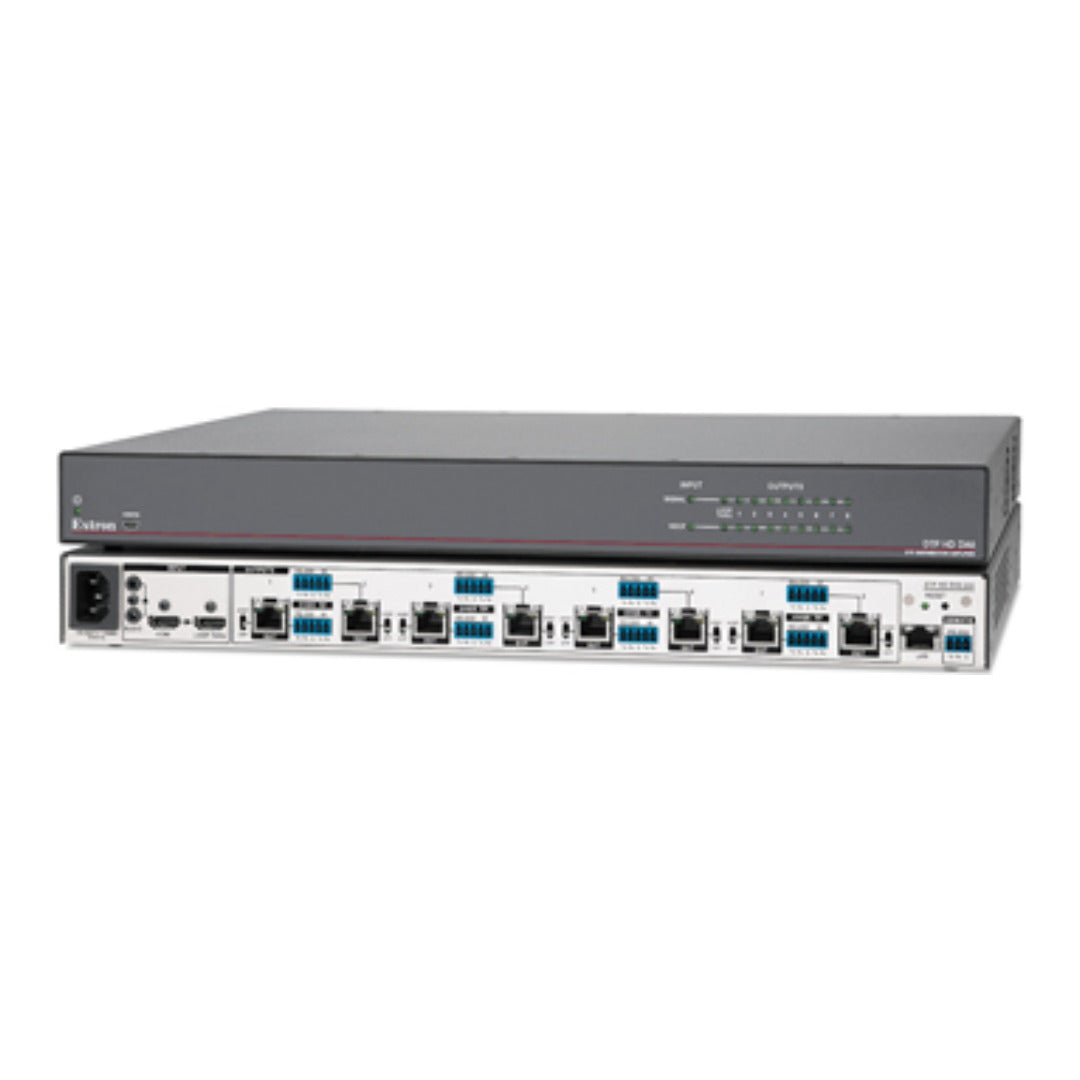

Extron DTP HD DA8 4K 230 (part number 60-1438-01) — a 1U rack distribution amplifier that splits a single HDMI source across eight DTP twisted-pair links.
When one source has to feed eight remote displays, running eight long HDMI cables is neither practical nor reliable. This eight-output amplifier takes one HDMI feed (or DVI-D via an appropriate adapter) and rebroadcasts it over eight shielded twisted-pair links terminated to the TIA/EIA T568B standard. Operating in DTP mode, each link delivers video with embedded audio plus analog stereo, RS-232, IR, and remote power for the far-end receiver. A local HDMI output and a local analog stereo jack stay live in the rack for monitoring or a house audio feed.
Key Capabilities
- One female HDMI type A input feeding eight DTP 230 outputs.
- Eight female RJ-45 connectors plus a single-link HDMI local output.
- 1080p @ 60 Hz reaches 230' (70 m); 2560x1600 @ 60 Hz and 4K/UHD reach 130' (40 m).
- Carries a 10.2 Gbps data rate at a 300 MHz maximum pixel clock, HDCP 1.4 compliant.
- Managed from a front-panel Mini USB-B port, RS-232 captive screw, or 10/100Base-T Ethernet.
- Eight 5-pole captive screw ports relay RS-232 and IR out to the DTP endpoints.
Where It Is Used
Multi-screen boardrooms, lecture halls and training centers, houses of worship, sports bars and stadium concourses, control rooms and command centers, retail signage networks, and hospital imaging suites — anywhere a single feed must appear on eight screens spread across a building.
Specifications at a Glance
- Video standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
- Power consumption 78.7 watts; thermal dissipation 125 BTU/hr
- Metal enclosure, 1.75" H x 17.5" W x 10.6" D, 1U high and full rack wide
- Product weight 5.0 lbs (2.3 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron DTPHDDA84K230, DTP-HD-DA8-4K-230, part number 60143801.
