Extron DTP HD DA4 4K 330 HDMI DTP Distribution Amplifier
- • One HDMI input distributed to 4 DTP 330 twisted-pair outputs
- • Every supported format reaches 330 ft (100 m) on shielded twisted pair
- • 4K/UHD at 30 and 60 Hz holds the full 100 m run
- • Local HDMI and analog stereo outputs stay live at the rack
- • RS-232 and IR pass through to each connected DTP endpoint
- • 10.2 Gbps data rate, 300 MHz pixel clock, HDCP 1.4 compliant
- • 1U metal chassis, 4.9 lbs, 46.3 W, 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP HD DA4 4K 330 (part number 60-1437-51) — a 1U rack distribution amplifier that pushes one HDMI source down four DTP twisted-pair links at full 100 metre reach.
Where the 230-series stops short on high-resolution material, this 330 model keeps every supported format at the same distance. One HDMI feed (or DVI-D through a suitable adapter) enters the front of the signal chain and leaves on four shielded twisted-pair links terminated to the TIA/EIA T568B standard. Each link delivers picture plus embedded audio, and in DTP mode it also hands the receiver analog stereo, RS-232, IR, and remote power. A local HDMI output and a local analog stereo jack remain available in the rack for monitoring.
Key Capabilities
- One female HDMI type A input with a single-link HDMI local output.
- Four DTP 330 outputs on four female RJ-45 connectors.
- 1080p @ 60 Hz, 2560x1600 @ 60 Hz and 4K/UHD @ 30 and 60 Hz all reach 330' (100 m).
- Supports a 10.2 Gbps data rate with a 300 MHz maximum pixel clock, HDCP 1.4 compliant.
- Controlled by front-panel Mini USB-B, RS-232 captive screw, or 10/100Base-T Ethernet via SIS, PCS, or Telnet.
- Four 5-pole captive screw ports relay RS-232 and IR out to the DTP endpoints.
Where It Is Used
Large auditoriums, stadium and arena concourses, sprawling corporate campuses, university lecture theatres, control rooms, transport hubs, and hospital imaging suites. The extra reach matters when the rack and the displays sit on opposite ends of a building and pulling a repeater into the middle is not an option.
Specifications at a Glance
- Video standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
- Power consumption 46.3 watts; thermal dissipation 87.8 BTU/hr
- Metal enclosure, 1.75" H x 17.5" W x 10.6" D, 1U high and full rack wide
- Product weight 4.9 lbs (2.2 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron DTPHDDA44K330, DTP-HD-DA4-4K-330, part number 60143751.
Specifications
Specifications

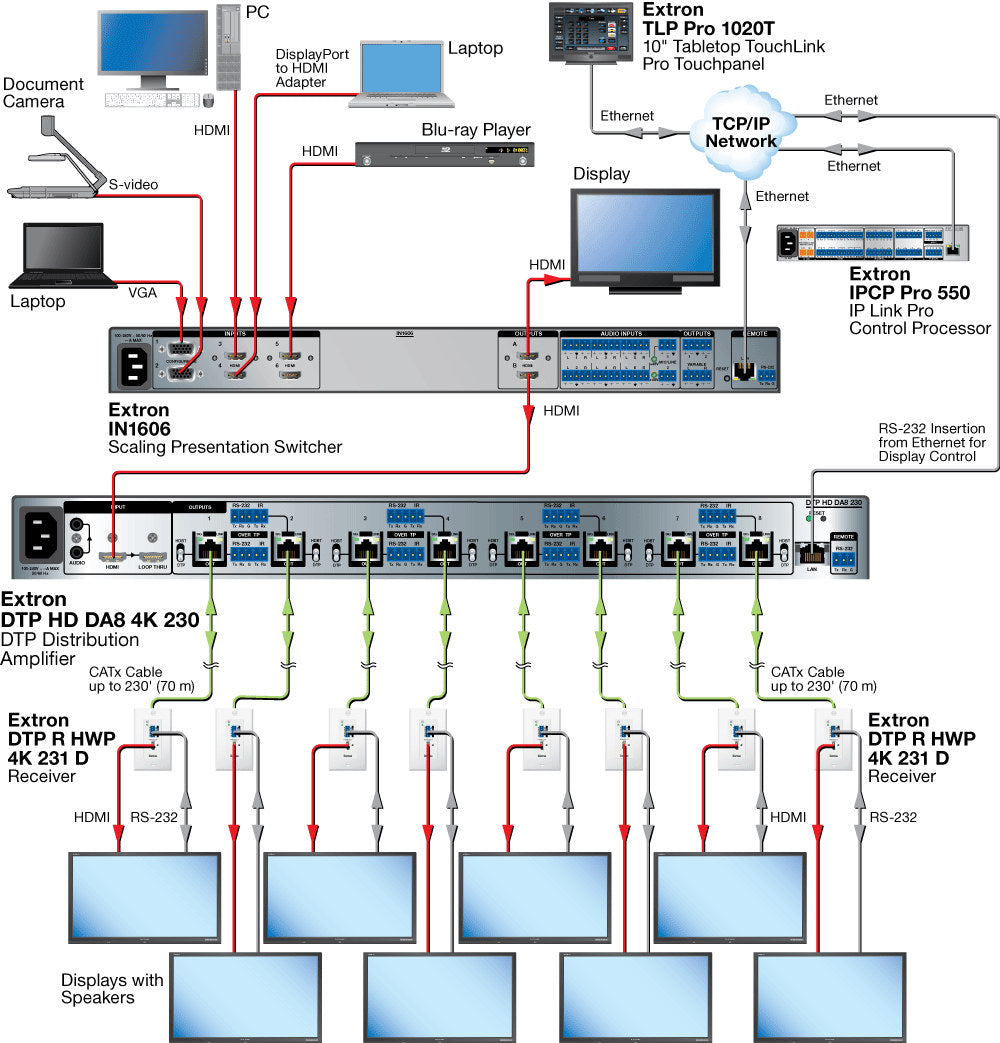

Diagram
