Extron DTP HD DA4 4K 230 HDMI DTP Distribution Amplifier
- • One HDMI input distributed to 4 DTP 230 twisted-pair outputs
- • 1080p @ 60 Hz travels up to 230 ft (70 m) on shielded twisted pair
- • 4K/UHD and 2560x1600 @ 60 Hz supported out to 130 ft (40 m)
- • Local HDMI and analog stereo outputs stay live at the rack
- • RS-232 and IR pass through to each connected DTP endpoint
- • 10.2 Gbps data rate, 300 MHz pixel clock, HDCP 1.4 compliant
- • 1U metal chassis, 4.9 lbs, 45.6 W, 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

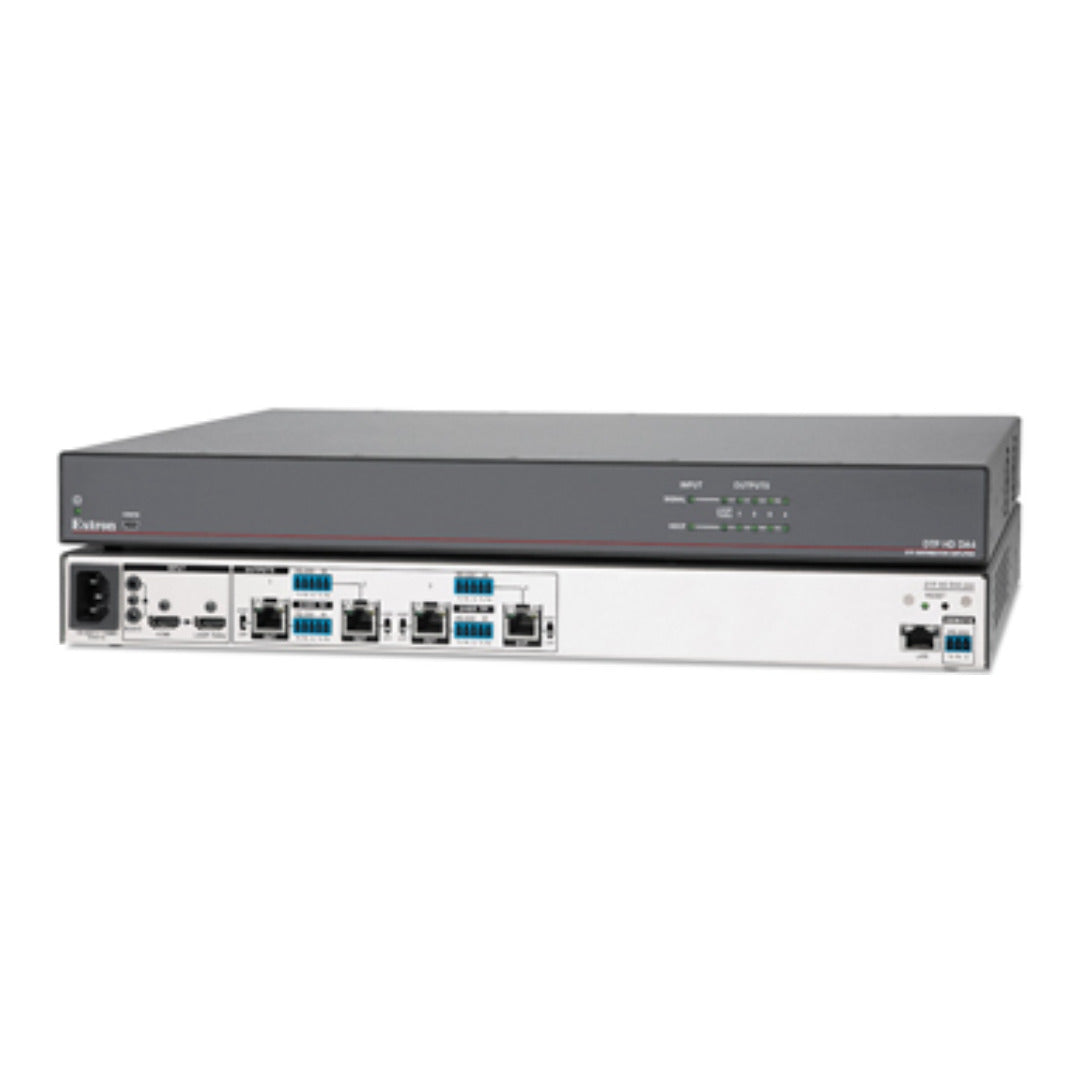

Extron DTP HD DA4 4K 230 (part number 60-1437-01) — a 1U rack-mount distribution amplifier that fans a single HDMI source out to four DTP twisted-pair links.
Long HDMI runs give up well before they reach the far corner of a large room. This unit answers that by accepting one HDMI feed (or DVI-D through an appropriate adapter) and rebroadcasting it across four shielded twisted-pair links terminated to the TIA/EIA T568B standard. In DTP mode each link carries the picture with its embedded audio and adds analog stereo, RS-232, IR, and remote power for the receiver at the other end. Back at the rack, a local HDMI output and a local analog stereo jack remain live for a confidence monitor or a house sound feed.
Key Capabilities
- One female HDMI type A input, plus a single-link HDMI local output.
- Four DTP 230 outputs presented on four female RJ-45 connectors.
- 1080p @ 60 Hz reaches 230' (70 m); 2560x1600 @ 60 Hz and 4K/UHD reach 130' (40 m).
- Handles a 10.2 Gbps data rate and a 300 MHz maximum pixel clock, HDCP 1.4 compliant.
- Managed over front-panel Mini USB-B, RS-232 captive screw, or 10/100Base-T Ethernet using SIS, PCS, or Telnet.
- Four 5-pole captive screw ports pass RS-232 and IR straight through to the DTP endpoints.
Where It Is Used
Boardrooms and divisible conference suites, lecture halls, classrooms, houses of worship, control rooms and command centers, signage clusters, and medical imaging reading rooms — anywhere one source has to land on several displays that sit farther from the rack than an HDMI cable can sensibly span.
Specifications at a Glance
- Video standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
- Power consumption 45.6 watts; thermal dissipation 85.5 BTU/hr
- Metal enclosure, 1.75" H x 17.5" W x 10.6" D, 1U high and full rack wide
- Product weight 4.9 lbs (2.2 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron DTPHDDA44K230, DTP-HD-DA4-4K-230, part number 60143701.
