Extron DTP DVI 4K 230 Tx DVI Twisted Pair Extender Transmitter
- • Takes one single link DVI-D input plus a local DVI-D loop-through
- • Two female DVI-I connectors on the source side of the link
- • 1080p at 60 Hz reaches the full 230 ft (70 m) over shielded twisted pair
- • 4K/UHD and 2560x1600 at 60 Hz rated out to 130 ft (40 m)
- • Sends RS-232 and 30-60 kHz IR control along with video and audio
- • Draws just 3.4 watts and dissipates 10.3 BTU/hr
- • Compact 3.0 in deep metal enclosure weighing 0.5 lbs (0.3 kg)
- • Backed by a 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP DVI 4K 230 Tx (part number 60-1272-12) — the source-end unit of Extron's DTP DVI 4K 230 extension pair, launching DVI video, analog stereo audio and control down a single shielded twisted pair run.

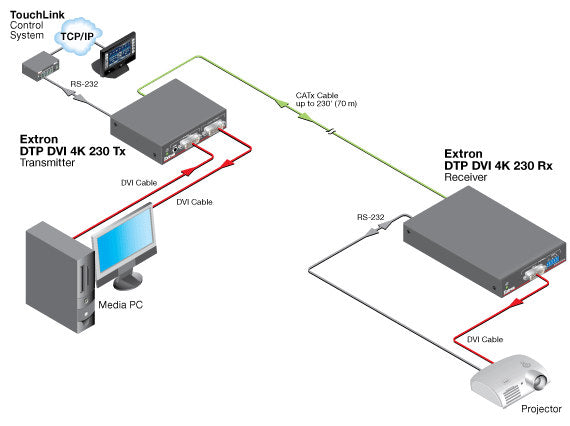

Sited at the rack, the credenza or the lectern, this transmitter takes one single link DVI-D feed and drives it to a matching DTP DVI 4K 230 Rx over one RJ-45 terminated link. A second female DVI-I port provides a local loop-through, so a confidence monitor at the source position stays fed while the remote display runs off the twisted pair. Serial and infrared control ride the same cable in both directions. Transmitter and receiver are ordered separately, and either unit can supply power to the other end.
Key Capabilities
- One single link DVI-D input plus one local DVI-D loop-through, on two female DVI-I connectors.
- 1080p at 60 Hz carries the full 230' (70 m); 2560x1600 and 4K/UHD are rated to 130' (40 m).
- 300 MHz maximum pixel clock and a 10.2 Gbps ceiling, at 8, 10 or 12 bits per color.
- RS-232 on a 5-pole captive screw connector shared with the TTL IR port, 30 kHz to 60 kHz.
- Unbalanced PC-level stereo input on a 3.5 mm jack, greater than 10k ohms and DC coupled.
- Draws 3.4 watts and can be powered remotely across the link within a 12 watt budget.
Where It Is Used
Ampronix ships this transmitter into boardrooms, training rooms, lecture theatres, courtrooms, command centers and medical imaging suites — wherever the computer or player has to live in a secured rack while the picture, sound and control all have to surface at a display well beyond DVI cable reach.
Specifications at a Glance
- Resolution range: 2560x1600 at 60 Hz with reduced blanking, 4096x2160 at 30 Hz, and 4K/UHD at 60 Hz when 4:2:0 chroma subsampling is used.
- Link: one female RJ-45, TIA/EIA T568B, solid 24 AWG or better STP rated at 400 MHz.
- Metal quarter-rack enclosure, 1.0 in H x 4.3 in W x 3.0 in D, 0.5 lbs (0.3 kg).
- Thermal dissipation 10.3 BTU/hr; operating range +32 to +122 °F (0 to +50 °C).
- Three-year parts and labor warranty; Everlast power supply carries seven years.
Also referenced as Extron DTPDVI4K230Tx, DTP-DVI-4K-230-Tx, part number 60127212.
