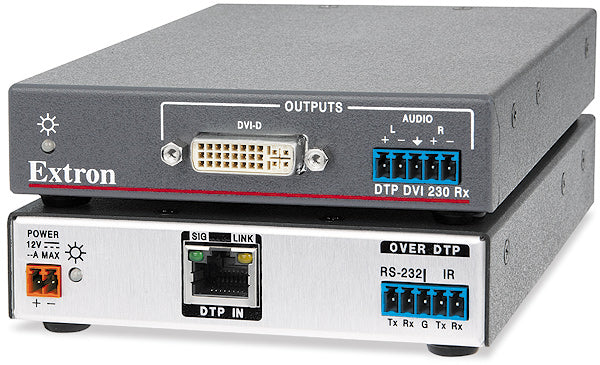

Extron DTP DVI 4K 230 Rx (part number 60-1272-13) — the display-end unit of Extron's DTP DVI 4K 230 extension pair, recovering DVI video, analog stereo audio and control from a single shielded twisted pair run.

Mounted behind a flat panel, above a projector or inside a lectern, this receiver terminates the twisted pair link driven by a DTP DVI 4K 230 Tx and hands off a single link DVI-D signal on one female DVI-I connector. Alongside the picture it restores line-level stereo audio on a 5-pole captive screw connector, RS-232 on a 3-pole captive screw connector, and a modulated IR path — so one cable does the work of four. Transmitter and receiver are sold separately, and either end can feed power to the other across the link.

Key Capabilities

Single link DVI-D output on one female DVI-I connector; DVI 1.0, HDMI 1.4 and HDCP 2.3 compliant.
1080p at 60 Hz travels the full 230' (70 m); 2560x1600 and 4K/UHD are rated to 130' (40 m).
300 MHz maximum pixel clock and a 10.2 Gbps ceiling, at 8, 10 or 12 bits per color.
Balanced or unbalanced stereo output — 50 ohms unbalanced, 100 ohms balanced, greater than +11 dBu into 600 ohms.
Serial pass-through from 300 to 115200 baud plus TTL IR from 30 kHz to 60 kHz.
Draws 4.2 watts and can be powered remotely across the link within a 12 watt budget.

Where It Is Used

Ampronix places this receiver in boardrooms, lecture halls, classrooms, courtrooms, signage endpoints and medical imaging read rooms — anywhere the display sits far outside practical DVI cable range and the integrator still needs audio and serial control delivered at the far end without pulling extra conduit.

Specifications at a Glance

Resolution range: 2560x1600 at 60 Hz with reduced blanking, 4096x2160 at 30 Hz, and 4K/UHD at 60 Hz when 4:2:0 chroma subsampling is used.
Link: one female RJ-45, TIA/EIA T568B, solid 24 AWG or better STP rated at 400 MHz.
Metal quarter-rack enclosure, 1.0 in H x 4.3 in W x 6.0 in D, 1.0 lb (0.5 kg).
Thermal dissipation 13.0 BTU/hr; operating range +32 to +122 °F (0 to +50 °C).
Three-year parts and labor warranty; Everlast power supply carries seven years.

Also referenced as Extron DTPDVI4K230Rx, DTP-DVI-4K-230-Rx, part number 60127213.

Specifications

Part Number: 60-1272-13

Manufacturer: Extron

Model: DTP DVI 4K 230 Rx

Condition: New

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Resolution Range: Up to 2560x1600 @ 60 Hz (reduced blanking), or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Color Bit Depth: 8, 10, or 12 bits, subject to the maximum data rate limit

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Formats: RGB and YCbCr digital video

Standards: DVI 1.0, HDMI 1.4, HDCP 2.3, CEA-861E

Signal Type: HDMI 1.4, HDCP 2.3

Video Output - Number/Signal Type: 1 single link DVI-D (or HDMI with appropriate cable or adapter)

Video Output - Connectors: 1 female DVI-I

Interconnection Connector: 1 female RJ-45 per unit

Termination Standard: TIA/EIA T568B

Transmission Distance - 1080p @ 60 Hz: Up to 230' (70 m) over shielded twisted pair (STP) or XTP DTP 24 STP cable

Transmission Distance - 2560x1600 @ 60 Hz: Up to 130' (40 m) over shielded twisted pair (STP) or XTP DTP 24 STP cable

Transmission Distance - 4K/UHD @ 30 Hz and 60 Hz: Up to 130' (40 m) over shielded twisted pair (STP) or XTP DTP 24 STP cable

Cable Requirements: Solid conductor, 24 AWG or better

Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair)

Audio Gain: Unbalanced output 0 dB; balanced output +6 dB

Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB

THD + Noise: 0.03% @ 20 Hz to 20 kHz at maximum output

Signal-to-Noise Ratio: Greater than 90 dB at maximum output (15 dBu), balanced (unweighted)

Stereo Channel Separation: Greater than 80 dB @ 1 kHz to 20 kHz

Audio Input - Number/Signal Type: 1 PC level stereo, unbalanced

Audio Input - Connectors: (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground)

Audio Input - Impedance: Greater than 10k ohms, DC coupled

Audio Input - Nominal Level: -10 dBV (316 mVrms)

Audio Input - Maximum Level: +7 dBV (unbalanced)

Audio Output - Number/Signal Type: 1 stereo (2 channel), balanced/unbalanced

Audio Output - Connectors: (1) 3.5 mm captive screw connector, 5 pole

Audio Output - Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output - Gain Error: Plus or minus 0.1 dB channel to channel

Audio Output - Maximum Level (600 ohm): Greater than +11 dBu, balanced

Serial Control Port Input (Receiver): 1 set of proprietary signals on a female RJ-45 jack

Serial Control Port Output (Receiver): RS-232 via a 3.5 mm, 3 pole captive screw connector

Baud Rate and Protocol: 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

IR Control Port: (1) 3.5 mm captive screw connector, 5 pole (shared with the RS-232 control port); TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR Control Pin Configuration: 3 = GND, 4 = IR Tx, 5 = IR Rx

Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 1.5 A, 18 watts

Power Consumption - Device: 4.2 watts

Power Consumption - Device and Power Supply: 5.8 watts

Remote Power Budget: 12 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Thermal Dissipation - Device: 13.0 BTU/hr

Thermal Dissipation - Device and Power Supply: 18.6 BTU/hr

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0 in H x 4.3 in W x 6.0 in D (quarter rack wide); 2.5 cm H x 10.9 cm W x 15.2 cm D. Depth excludes connectors.

Product Weight: 1.0 lb (0.5 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI. UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply. Complies with the appropriate requirements of RoHS and WEEE. CE and FCC testing is conducted with STP I/O cable.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

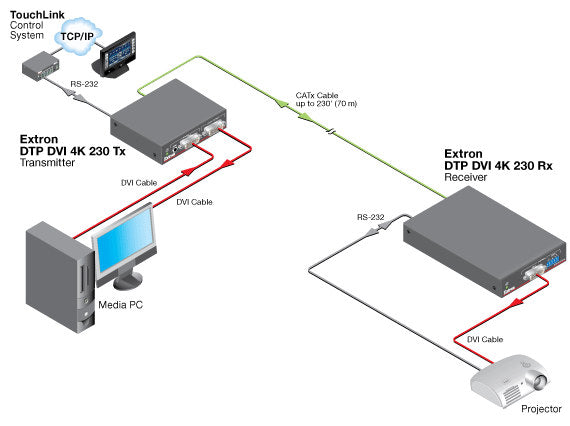

Diagram

Resources

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 (dtp-dvi-4k-230_A6.pdf)

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | Extron Government Solutions

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 (dtp_dvi_230_A4_jp_ONLINE.pdf)

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 (dtpdvi4k230_bro_A4_cn.pdf)

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 (DTP-DVI-4K-230_BR_A4_SP_RevA5.pdf)

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | Extron-Lösungen für Behörden

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | Solutions Extron pour structures gouvernementales

Brochure | DTP DVI 4K 230 Rx 60-1272-13 | Soluzioni Extron per ambienti governativi

Manual | DTP DVI 4K 230 Rx 60-1272-13 | Cleaning Instruction Card

Manual | DTP DVI 4K 230 Rx 60-1272-13 | DTP Compatibility Guide

Manual | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 Tx/Rx Setup Guide

Manual | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 Tx/Rx User Guide

Manual | DTP DVI 4K 230 Rx 60-1272-13 | DTP互換性ガイド

Specifications | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 230 4K Tx/Rx

Panel Drawing | DTP DVI 4K 230 Rx 60-1272-13 | DTP DVI 4K 230 Rx
