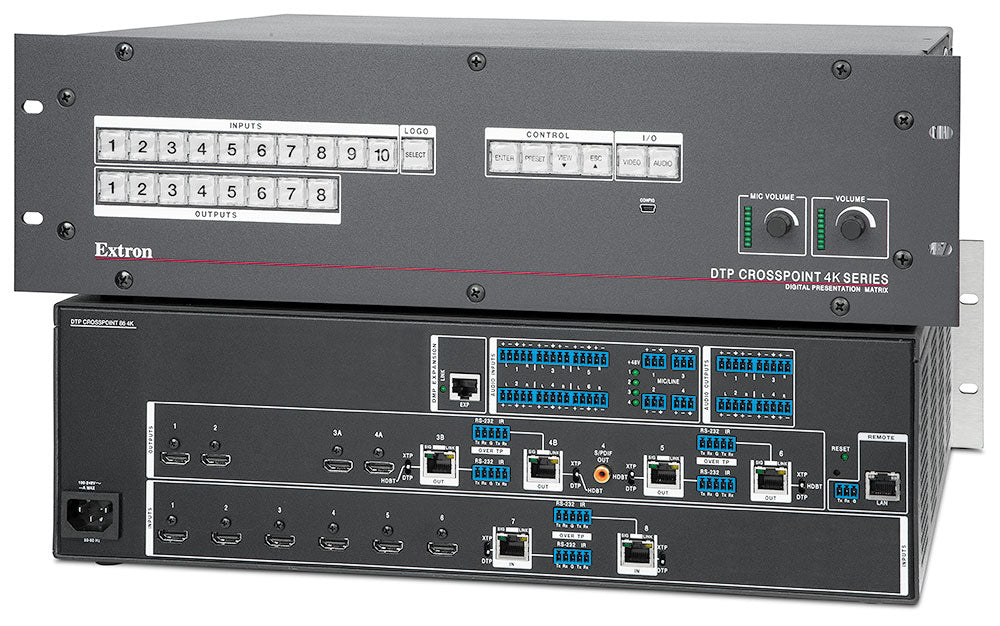

Extron DTP CrossPoint 86 4K IPCP Q SA (part number 60-1382-92A) bundles the stereo amplifier version of Extron's 3U 8x6 4K presentation matrix with the LL UI Upgrade, a LinkLicense user-interface entitlement.
Order this variant when the design calls for a licensed user interface as well as the switching hardware. Underneath that license the frame is the standard IPCP Q SA build: eight video sources in, six outputs with scaling on four twisted pair ports and two buffered HDMI ports, a 4x4 microphone mixer feeding an 8x6 stereo audio matrix, and a Class D power stage rated 25 watts rms per channel into 8 ohms. Serial, infrared, relay and digital I/O connections all sit on the rear panel.
Key Capabilities
- Includes the LL UI Upgrade, a LinkLicense user-interface entitlement for the built-in processor
- 25 watts rms per channel Class D stereo amplifier working into a 4 ohm minimum load
- Eight sources in and six displays out, with scaling on four DTP, XTP or HDBaseT ports
- 2 GB SDRAM and 8 GB flash on the resident IPCP Pro xi control processor
- Microphone input gain adjustable from -18 dB to +80 dB in 0.1 dB steps
- Web interface handling up to 200 concurrent sessions with 40.0 MB of user memory
Where It Is Used
Multipurpose rooms across hospitals, universities and government facilities where a touchpanel or browser interface forms part of the deliverable. The stereo amplifier fits spaces built around a matched loudspeaker pair rather than a distributed constant voltage line.
Specifications at a Glance
- Amplifier THD plus noise below 0.1% at 1 kHz, 3 dB under clipping
- 147 watts consumed, 376 BTU/hr dissipated
- Video handled to 10.2 Gbps with a 300 MHz pixel clock
- 3U high, full rack wide, 17 lbs (7.7 kg), internal universal supply
- 3 years on the product and 7 years on the Everlast power supply
Also referenced as Extron DTPCrossPoint864KIPCPQSA, DTP-CrossPoint-86-4K-IPCP-Q-SA, part number 60138292A.
Specifications
Specifications
Part Number: 60-1382-92A
Manufacturer: Extron
Model: DTP CrossPoint 86 4K IPCP Q SA
Condition: New
Video Routing: 8 x 6 matrix
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, or 4K (4096x2160) at 30 Hz and UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling, supported only at the non-scaled HDMI outputs
Formats: RGB and YCbCr digital video
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Signal Type: HDMI 1.4, HDCP 1.4
Frame Rate: 24, 25, 30, 50, or 60 fps, subject to the maximum data rate limit
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0, subject to the maximum data rate limit
Color Bit Depth: 8 bits per color
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 300 MHz pixel clock (HDMI)
Colors: 1.07 billion (10-bit processing)
Video Inputs: 6 HDMI digital video (HDCP compliant); 2 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
Video Input Horizontal Frequency: 15 kHz to 100 kHz
Video Input Vertical Frequency: 24 Hz to 75 Hz
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K through 4K at 30 Hz
Matrix Video Outputs (Non-Scaled): 2 HDMI digital video (HDCP compliant)
Matrix Video Output Connectors: 2 female HDMI
Scaled Twisted Pair Outputs: 4 DTP, XTP, or HDBaseT (configurable); 2 buffered HDMI digital video (HDCP compliant)
Scaled Output Connectors: 4 female RJ-45; 2 female HDMI
Video Output Power for Active Cables (HDMI Pin 18): 6.6 W total power for all HDMI ports, 1.1 W per HDMI port maximum
Logos: 16 logos; resolution range up to 4096x2160; BMP, JPG, PNG, TIFF file formats; transparency, RGB key, level key and alpha key effects
Twisted Pair Connectors: Female RJ-45
Termination Standard: TIA/EIA T568B
Signal Transmission Distance: Resolutions up to 1920x1200 and 1080p: up to 330 ft (100 m) with DTP 330, up to 230 ft (70 m) with DTP 230. 2560x1600 (reduced blanking) and 4K at 30 Hz: up to 330 ft (100 m) with DTP 330, up to 130 ft (40 m) with DTP 230. Using shielded twisted pair cable or XTP DTP 24 TP cable
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair); Extron XTP DTP 24 shielded twisted pair cable strongly recommended
Audio Routing: 8 x 6 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio THD + Noise: 0.02% at 1 kHz nominal level
Audio Signal to Noise: 105 dB at maximum balanced output (unweighted)
Audio Crosstalk: Less than -90 dB, 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB, 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
HDMI Audio Formats (Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole for analog line level inputs; 6 female HDMI type A; 2 female RJ-45
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced/unbalanced, with phantom power
Mic/Line Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: Greater than +21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: Less than -120 dBV (1.0 uVrms) at +40 dB input gain
CMRR: Greater than 70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB, in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
DC Phantom Power: +48 VDC, plus or minus 10% (inputs 1-4), switched on or off
Audio Outputs: 4 HDMI embedded; 4 DTP (embedded digital and remote balanced/unbalanced analog), XTP (embedded digital), or HDBaseT (embedded digital); 4 stereo balanced/unbalanced analog (variable); 1 SPDIF
Audio Output Connectors: 4 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: Stereo audio 50 ohms unbalanced, 100 ohms balanced; S/PDIF 75 ohms
Audio Output Gain Error: Plus or minus 0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): Greater than +21 dBu balanced, or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: 1 RJ-45, proprietary transmission type; 16 channels Rx and 16 channels Tx; 24 bit, 48 kHz sampling, uncompressed audio; shielded CAT 6 up to 10 meters
Power Amplifier Output: 1 stereo or mono (2 channels total)
Power Amplifier Connector: (1) 5 mm screw lock captive screw connector, 4-pole; accepts wires of 22 AWG to 12 AWG
Power Amplifier Load Impedance: 4 ohms minimum
Power Amplifier Type: Class D
Power Amplifier Output Power: 25 watts (rms) per channel, 8 ohms, 1 kHz, 0.1% THD; 50 watts per channel, 4 ohms, 1 kHz, 0.1% THD
Power Amplifier Frequency Response: 20 Hz to 20 kHz, +1/-3 dB at 1 watt
Power Amplifier THD + Noise: Less than 0.1%, 1 kHz, 3 dB below clipping
Power Amplifier Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Power Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Serial Baud Rate and Protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female USB mini-B; USB 2.0, low speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; default gateway 0.0.0.0; DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer; Telnet
Serial Pass-Through Ports (RS-232 over Twisted Pair): RS-232 via (2) 3.5 mm, 5-pole captive screw connectors at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the IR ports; 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even, odd, mark, or space parity; pin 1 = Tx, 2 = Rx, 3 = Gnd
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz via (2) 3.5 mm captive screw connectors, 5-pole at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the RS-232 ports; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: Built-in Extron IPCP Pro xi control processor
Control Processor SDRAM: 2 GB
Control Processor Flash: 8 GB
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network Interface Controllers: 1
Control Processor Network Switch: 1 unmanaged 3 port switch
Control Processor Ethernet Connectors: 3 female RJ-45 connectors
Control Processor Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Control Processor Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Control Processor Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Processor Serial Connectors: (1) 3.5 mm captive screw connector, 5-pole; (2) 3.5 mm captive screw connectors, 3-pole
Control Processor Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control Processor Serial Pin Configurations: 5-pole RS-232 (default) pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS; RS-422 pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+; RS-485 pins 1 and 2 tied together = data-, 3 = Gnd, 4 and 5 tied together = data+; 3-pole pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Control: 4 digital input/output (configurable); (1) 3.5 mm captive screw connector, 5-pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: 29k ohms
Digital Input Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high greater than 2.8 VDC; high to low less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC maximum
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole; 300 to 115200 baud (9600 baud default); for each port pin 1 = signal, 2 = Gnd
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays; (1) 204 mm captive screw, 6-pole; contact rating 24 VDC, 1 A
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 147 watts
Remote Power Capability: Supports up to six endpoints (two DTP Tx, four DTP Rx); remote power is not available in XTP and HDBaseT modes
Operating Temperature/Humidity: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90%, noncondensing
Storage Temperature/Humidity: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90%, noncondensing
Cooling: Fans, air flows from right to left as viewed from the front panel
Thermal Dissipation: 376 BTU/hr
Mounting: Rack mount
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D. Depth excludes connectors and knobs; width excludes rack ears
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor

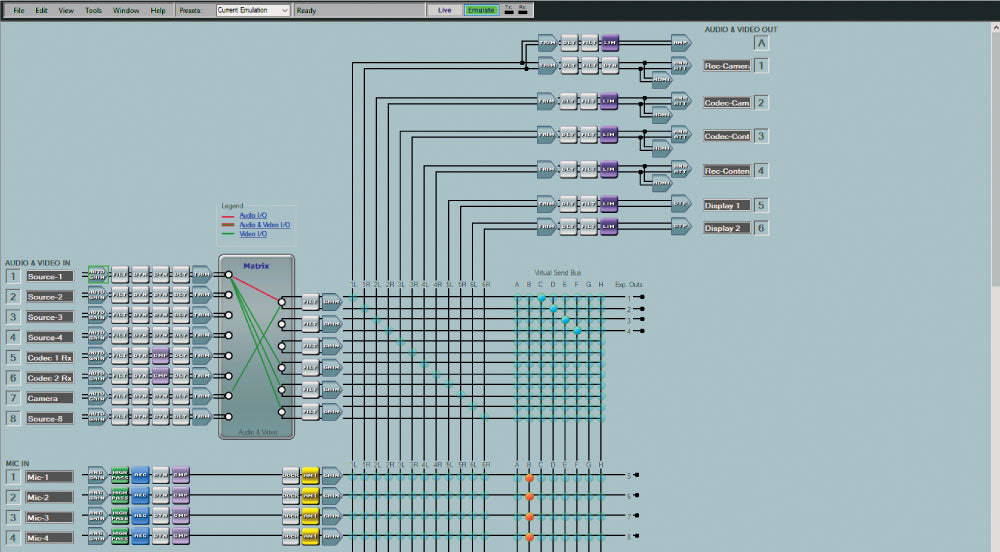

Diagram
Diagram
Resources
Resources
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast Power Supplies
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Extron Government Solutions
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Alimentatori Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K 系列
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K-Serie
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast 电源
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast-Netzteile
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Extron-Lösungen für Behörden
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Fuentes de alimentación Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Gamme DTP CrossPoint 4K
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Soluzioni Extron per ambienti governativi
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Sources d'alimentation Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Серия DTP CrossPoint 4K
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Cleaning Instruction Card
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP Compatibility Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K Series Setup Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K Series User Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | IPCP Pro Q xi and xi Series User Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP互換性ガイド
Panel Drawing | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 86 4K
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Extron DTP CrossPoint 86 4K IPCP Q SA 8x6 4K Matrix Switcher 60-1382-92A
Extron DTP CrossPoint 86 4K IPCP Q SA 8x6 4K Matrix Switcher 60-1382-92A
Manufacturer: Extron
Type: DTP Systems
Extron DTP CrossPoint 86 4K IPCP Q SA 8x6 4K Matrix Switcher
- • Supplied with the LL UI Upgrade LinkLicense user-interface entitlement
- • 25 W rms per channel Class D stereo amplifier, 50 W per channel at 4 ohms
- • 8x6 seamless 4K matrix routing 6 HDMI and 2 twisted pair sources
- • IPCP Pro xi processor onboard: 2 GB SDRAM, 8 GB flash, 3 RJ-45 ports
- • Mic gain trims across a 98 dB range in 0.1 dB steps on four inputs
- • Built-in web server supports up to 200 simultaneous sessions
- • Four relays, four digital I/O and two IR or serial ports for room control
- • 3 year product warranty and a 7 year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP CrossPoint 86 4K IPCP Q SA (part number 60-1382-92A) bundles the stereo amplifier version of Extron's 3U 8x6 4K presentation matrix with the LL UI Upgrade, a LinkLicense user-interface entitlement.
Order this variant when the design calls for a licensed user interface as well as the switching hardware. Underneath that license the frame is the standard IPCP Q SA build: eight video sources in, six outputs with scaling on four twisted pair ports and two buffered HDMI ports, a 4x4 microphone mixer feeding an 8x6 stereo audio matrix, and a Class D power stage rated 25 watts rms per channel into 8 ohms. Serial, infrared, relay and digital I/O connections all sit on the rear panel.
Key Capabilities
- Includes the LL UI Upgrade, a LinkLicense user-interface entitlement for the built-in processor
- 25 watts rms per channel Class D stereo amplifier working into a 4 ohm minimum load
- Eight sources in and six displays out, with scaling on four DTP, XTP or HDBaseT ports
- 2 GB SDRAM and 8 GB flash on the resident IPCP Pro xi control processor
- Microphone input gain adjustable from -18 dB to +80 dB in 0.1 dB steps
- Web interface handling up to 200 concurrent sessions with 40.0 MB of user memory
Where It Is Used
Multipurpose rooms across hospitals, universities and government facilities where a touchpanel or browser interface forms part of the deliverable. The stereo amplifier fits spaces built around a matched loudspeaker pair rather than a distributed constant voltage line.
Specifications at a Glance
- Amplifier THD plus noise below 0.1% at 1 kHz, 3 dB under clipping
- 147 watts consumed, 376 BTU/hr dissipated
- Video handled to 10.2 Gbps with a 300 MHz pixel clock
- 3U high, full rack wide, 17 lbs (7.7 kg), internal universal supply
- 3 years on the product and 7 years on the Everlast power supply
Also referenced as Extron DTPCrossPoint864KIPCPQSA, DTP-CrossPoint-86-4K-IPCP-Q-SA, part number 60138292A.
Specifications
Specifications
Part Number: 60-1382-92A
Manufacturer: Extron
Model: DTP CrossPoint 86 4K IPCP Q SA
Condition: New
Video Routing: 8 x 6 matrix
Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)
Maximum Pixel Clock: 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling)
Resolution: Up to 2560x1600 (reduced blanking) at 60 Hz, or 4K (4096x2160) at 30 Hz and UHD (3840x2160) at 30 Hz; 4K/UHD at 60 Hz with 4:2:0 chroma subsampling, supported only at the non-scaled HDMI outputs
Formats: RGB and YCbCr digital video
Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E
Signal Type: HDMI 1.4, HDCP 1.4
Frame Rate: 24, 25, 30, 50, or 60 fps, subject to the maximum data rate limit
Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0, subject to the maximum data rate limit
Color Bit Depth: 8 bits per color
Digital Pixel Data Bit Depth: 8, 10, or 12 bits per channel; 300 MHz pixel clock (HDMI)
Colors: 1.07 billion (10-bit processing)
Video Inputs: 6 HDMI digital video (HDCP compliant); 2 DTP or XTP (configurable)
Video Input Connectors: 6 female HDMI type A; 2 female RJ-45
Video Input Horizontal Frequency: 15 kHz to 100 kHz
Video Input Vertical Frequency: 24 Hz to 75 Hz
Video Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 2K through 4K at 30 Hz
Matrix Video Outputs (Non-Scaled): 2 HDMI digital video (HDCP compliant)
Matrix Video Output Connectors: 2 female HDMI
Scaled Twisted Pair Outputs: 4 DTP, XTP, or HDBaseT (configurable); 2 buffered HDMI digital video (HDCP compliant)
Scaled Output Connectors: 4 female RJ-45; 2 female HDMI
Video Output Power for Active Cables (HDMI Pin 18): 6.6 W total power for all HDMI ports, 1.1 W per HDMI port maximum
Logos: 16 logos; resolution range up to 4096x2160; BMP, JPG, PNG, TIFF file formats; transparency, RGB key, level key and alpha key effects
Twisted Pair Connectors: Female RJ-45
Termination Standard: TIA/EIA T568B
Signal Transmission Distance: Resolutions up to 1920x1200 and 1080p: up to 330 ft (100 m) with DTP 330, up to 230 ft (70 m) with DTP 230. 2560x1600 (reduced blanking) and 4K at 30 Hz: up to 330 ft (100 m) with DTP 330, up to 130 ft (40 m) with DTP 230. Using shielded twisted pair cable or XTP DTP 24 TP cable
Cable Requirements: Solid conductor, 24 AWG or better
Cable Recommendations: 400 MHz bandwidth, STP (shielded twisted pair); Extron XTP DTP 24 shielded twisted pair cable strongly recommended
Audio Routing: 8 x 6 stereo switching matrix; 4 x 4 microphone mixing matrix
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio THD + Noise: 0.02% at 1 kHz nominal level
Audio Signal to Noise: 105 dB at maximum balanced output (unweighted)
Audio Crosstalk: Less than -90 dB, 20 Hz to 20 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB, 20 Hz to 20 kHz
Digital Conversion: 24-bit, 48 kHz
HDMI Audio Formats (Pass-Through): LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio Inputs: 6 stereo analog line level, balanced or unbalanced; 6 stereo de-embedded from HDMI (PCM only); 2 DTP (de-embedded from HDMI [PCM only] and remote balanced/unbalanced analog) or XTP (embedded digital)
Audio Input Connectors: (6) 3.5 mm captive screw connectors, 5-pole for analog line level inputs; 6 female HDMI type A; 2 female RJ-45
Analog Audio Nominal Level: +4 dBu, -10 dBV adjustable via input gain
Analog Audio Maximum Level: +21 dBu balanced, +15 dBu unbalanced
Analog Audio Input Gain Adjustment: -18 dB to +24 dB, 0.1 dB steps, adjustable per input
Mic/Line Inputs: 4 mono, mic/line, balanced/unbalanced, with phantom power
Mic/Line Connectors: (4) 3.5 mm captive screw connectors, 3-pole
Mic/Line Impedance: 10k ohms unbalanced, 20k ohms balanced
Mic/Line Nominal Level: -60 dBV, +4 dBu, -10 dBV, adjustable via input gain
Mic/Line Maximum Level: Greater than +21 dBu at rated THD+N when mic gain is set to 0 dB
Equivalent Input Noise: Less than -120 dBV (1.0 uVrms) at +40 dB input gain
CMRR: Greater than 70 dB typical
Mic/Line Input Gain Adjustment: -18 dB to +80 dB, in 0.1 dB steps, adjustable per input
Microphone Volume Range: -100 dB to +12 dB
DC Phantom Power: +48 VDC, plus or minus 10% (inputs 1-4), switched on or off
Audio Outputs: 4 HDMI embedded; 4 DTP (embedded digital and remote balanced/unbalanced analog), XTP (embedded digital), or HDBaseT (embedded digital); 4 stereo balanced/unbalanced analog (variable); 1 SPDIF
Audio Output Connectors: 4 female HDMI; 4 RJ-45; (4) 3.5 mm captive screw, 5-pole; 1 RCA
Audio Output Impedance: Stereo audio 50 ohms unbalanced, 100 ohms balanced; S/PDIF 75 ohms
Audio Output Gain Error: Plus or minus 0.1 dB channel to channel
Audio Output Maximum Level (Hi-Z): Greater than +21 dBu balanced, or +15 dBu unbalanced
Output Volume Range: 0 to -100 dB in 0.1 dB steps
EXP Port: 1 RJ-45, proprietary transmission type; 16 channels Rx and 16 channels Tx; 24 bit, 48 kHz sampling, uncompressed audio; shielded CAT 6 up to 10 meters
Power Amplifier Output: 1 stereo or mono (2 channels total)
Power Amplifier Connector: (1) 5 mm screw lock captive screw connector, 4-pole; accepts wires of 22 AWG to 12 AWG
Power Amplifier Load Impedance: 4 ohms minimum
Power Amplifier Type: Class D
Power Amplifier Output Power: 25 watts (rms) per channel, 8 ohms, 1 kHz, 0.1% THD; 50 watts per channel, 4 ohms, 1 kHz, 0.1% THD
Power Amplifier Frequency Response: 20 Hz to 20 kHz, +1/-3 dB at 1 watt
Power Amplifier THD + Noise: Less than 0.1%, 1 kHz, 3 dB below clipping
Power Amplifier Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Power Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3-pole (rear panel)
Serial Baud Rate and Protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female USB mini-B; USB 2.0, low speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP, ARP, Telnet
Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; default gateway 0.0.0.0; DHCP off
Web Server: Up to 200 simultaneous sessions; 40.0 MB nonvolatile user memory
Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer; Telnet
Serial Pass-Through Ports (RS-232 over Twisted Pair): RS-232 via (2) 3.5 mm, 5-pole captive screw connectors at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the IR ports; 300 to 115200 baud; 8 or 7 data bits; 1 or 2 stop bits; no parity (default), even, odd, mark, or space parity; pin 1 = Tx, 2 = Rx, 3 = Gnd
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz via (2) 3.5 mm captive screw connectors, 5-pole at the switcher inputs/TP Tx and (2) at the switcher outputs/TP Rx, shared with the RS-232 ports; pin 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Control Processor: Built-in Extron IPCP Pro xi control processor
Control Processor SDRAM: 2 GB
Control Processor Flash: 8 GB
Control Processor Software: Extron Global Configurator Plus and Professional for Windows
Control Options: GlobalViewer, TouchLink for Web, TouchLink for iPad, or TouchLink Pro touchpanels
Control Processor Network Interface Controllers: 1
Control Processor Network Switch: 1 unmanaged 3 port switch
Control Processor Ethernet Connectors: 3 female RJ-45 connectors
Control Processor Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Control Processor Ethernet Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Control Processor Ethernet Default Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1
Control Processor Serial Ports: 1 bidirectional RS-232, RS-422, RS-485 (port 1); 2 bidirectional RS-232 (ports 2 and 3)
Control Processor Serial Connectors: (1) 3.5 mm captive screw connector, 5-pole; (2) 3.5 mm captive screw connectors, 3-pole
Control Processor Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control Processor Serial Pin Configurations: 5-pole RS-232 (default) pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS; RS-422 pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+; RS-485 pins 1 and 2 tied together = data-, 3 = Gnd, 4 and 5 tied together = data+; 3-pole pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital I/O Control: 4 digital input/output (configurable); (1) 3.5 mm captive screw connector, 5-pole
Digital Input Voltage Range: 0 to 24 VDC, clamped at +30 VDC
Digital Input Impedance: 29k ohms
Digital Input Programmable Pullup: 1k ohms to +5 VDC
Digital Input Thresholds: Low to high greater than 2.8 VDC; high to low less than 2.0 VDC
Digital Outputs: 250 mA sink from 24 VDC maximum
Digital I/O Pin Configuration: 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = Gnd
IR/Serial Control Ports: 2 programmable: unidirectional RS-232 (plus or minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz; (1) 3.5 mm captive screw connector, 5-pole; 300 to 115200 baud (9600 baud default); for each port pin 1 = signal, 2 = Gnd
IR Output Carrier Frequency: 30 kHz to 300 kHz
Relay Control: 4 normally open relays; (1) 204 mm captive screw, 6-pole; contact rating 24 VDC, 1 A
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 147 watts
Remote Power Capability: Supports up to six endpoints (two DTP Tx, four DTP Rx); remote power is not available in XTP and HDBaseT modes
Operating Temperature/Humidity: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90%, noncondensing
Storage Temperature/Humidity: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90%, noncondensing
Cooling: Fans, air flows from right to left as viewed from the front panel
Thermal Dissipation: 376 BTU/hr
Mounting: Rack mount
Enclosure Type: Metal
Enclosure Dimensions: 5.25 in H x 17.4 in W x 16 in D (3U high, full rack wide); 13.3 cm H x 44.2 cm W x 40.6 cm D. Depth excludes connectors and knobs; width excludes rack ears
Product Weight: 17 lbs (7.7 kg)
Regulatory Compliance: CE, C-tick, c-UL, FCC Class A, ICES, UL, KC, VCCI; complies with the appropriate requirements of RoHS and WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
Diagram
Diagram
Resources
Resources
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast Power Supplies
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Extron Government Solutions
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Alimentatori Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K 系列
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K-Serie
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast 电源
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Everlast-Netzteile
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Extron-Lösungen für Behörden
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Fuentes de alimentación Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Gamme DTP CrossPoint 4K
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Soluzioni Extron per ambienti governativi
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Sources d'alimentation Everlast
Brochure | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Серия DTP CrossPoint 4K
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | Cleaning Instruction Card
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP Compatibility Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K Series Setup Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 4K Series User Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | IPCP Pro Q xi and xi Series User Guide
Manual | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP互換性ガイド
Panel Drawing | DTP CrossPoint 86 4K IPCP Q SA 60-1382-92A | DTP CrossPoint 86 4K
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
