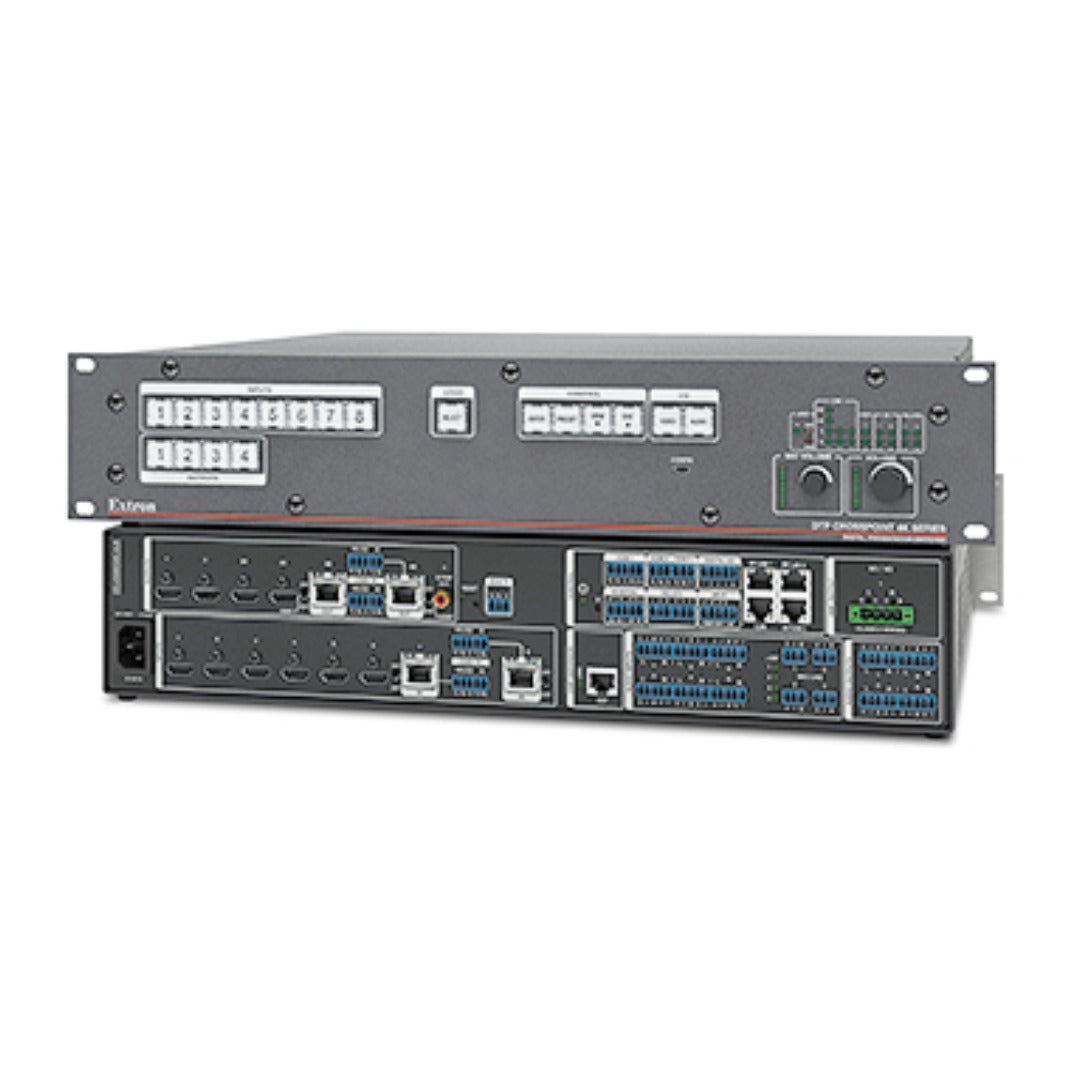

Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Matrix Switcher 60-1515-22
Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Matrix Switcher 60-1515-22
Extron DTP CrossPoint 84 4K IPCP SA 8x4 Scaling Presentation Matrix Switcher
- • 8x4 4K matrix switching with scaling on both twisted pair outputs
- • Two by 50 watt stereo power amplifier built into the switcher chassis
- • Six HDMI and two DTP/XTP inputs feed two HDMI plus two scaled outputs
- • 512 MB SDRAM and 4.5 GB flash on the onboard IPCP control processor
- • Audio path measures 105 dB S/N and 0.02% THD+N at 1 kHz nominal
- • Powers up to four DTP endpoints: two transmitters and two receivers
- • 136 watt draw, 355 BTU/hr, 14 lb 2U full-rack-width metal enclosure
- • Three-year product warranty plus 7-year Everlast power supply coverage
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron DTP CrossPoint 84 4K IPCP SA (part number 60-1515-22) — the 8x4 seamless scaling matrix ordered in the two-by-50-watt stereo power amplifier build, with the IPCP control processor on board.
Extron lists this dash number as the configuration carrying a 2 x 50 W stereo power amplifier. In practice that means a small or mid-size room can run its loudspeakers straight off the switcher: program audio and the microphone mix are summed inside the same chassis that routes video, and the amplifier sits behind the same Everlast supply. Two twisted pair outputs scale independently, so mismatched displays are not a problem.
Key Capabilities
- 8 x 4 video routing with seamless switching and per-output scaling on the twisted pair destinations.
- Six HDMI and two DTP/XTP inputs feeding two HDMI matrix outputs plus two scaled outputs.
- 512 MB SDRAM and 4.5 GB flash back the onboard IPCP control processor.
- Audio path measures 105 dB signal-to-noise and 0.02% THD+N at 1 kHz nominal level.
- Remote power reaches up to four DTP endpoints — two transmitters and two receivers.
- Class D amplification: 25 watts rms per channel into 8 ohms, 50 watts per channel into 4 ohms.
Where It Is Used
Clinical education rooms, imaging department conference spaces, engineering design reviews, small auditoriums and municipal meeting rooms — installations that want amplified sound and multi-display video without a separate amplifier chassis eating rack space and another power circuit.
Specifications at a Glance
- Video matrix 8 x 4; audio matrix 8 x 4 with a 4 x 4 mic mix
- Maximum data rate 10.2 Gbps; 300 MHz pixel clock
- 136 watts drawn; 355 BTU/hr dissipated
- 2U full rack width; 14 lbs (6.4 kg); metal enclosure
- 3-year product warranty; 7-year Everlast power supply warranty
Also referenced as Extron DTPCrossPoint844KIPCPSA, DTP-CrossPoint-84-4K-IPCP-SA, part number 60151522.
