Extron DTP CrossPoint 84 4K IPCP Q SA 8x4 Scaling Presentation Matrix Switcher
- • 8x4 seamless matrix switching with scaling at 4K and UHD up to 30 Hz
- • Six HDMI plus two configurable DTP or XTP inputs in one 2U rack-wide chassis
- • Built-in IPCP Q control processor with 2 GB SDRAM and 8 GB flash storage
- • Class D stereo amp rated 25 W per channel at 8 ohms, 50 W at 4 ohms
- • 8x4 stereo audio matrix paired with a 4x4 microphone mixing matrix
- • Four mic/line inputs with switchable +48 VDC phantom power
- • Draws 136 watts and dissipates 355 BTU/hr in a 14 lb metal enclosure
- • 3-year product warranty plus 7-year Everlast power supply coverage
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

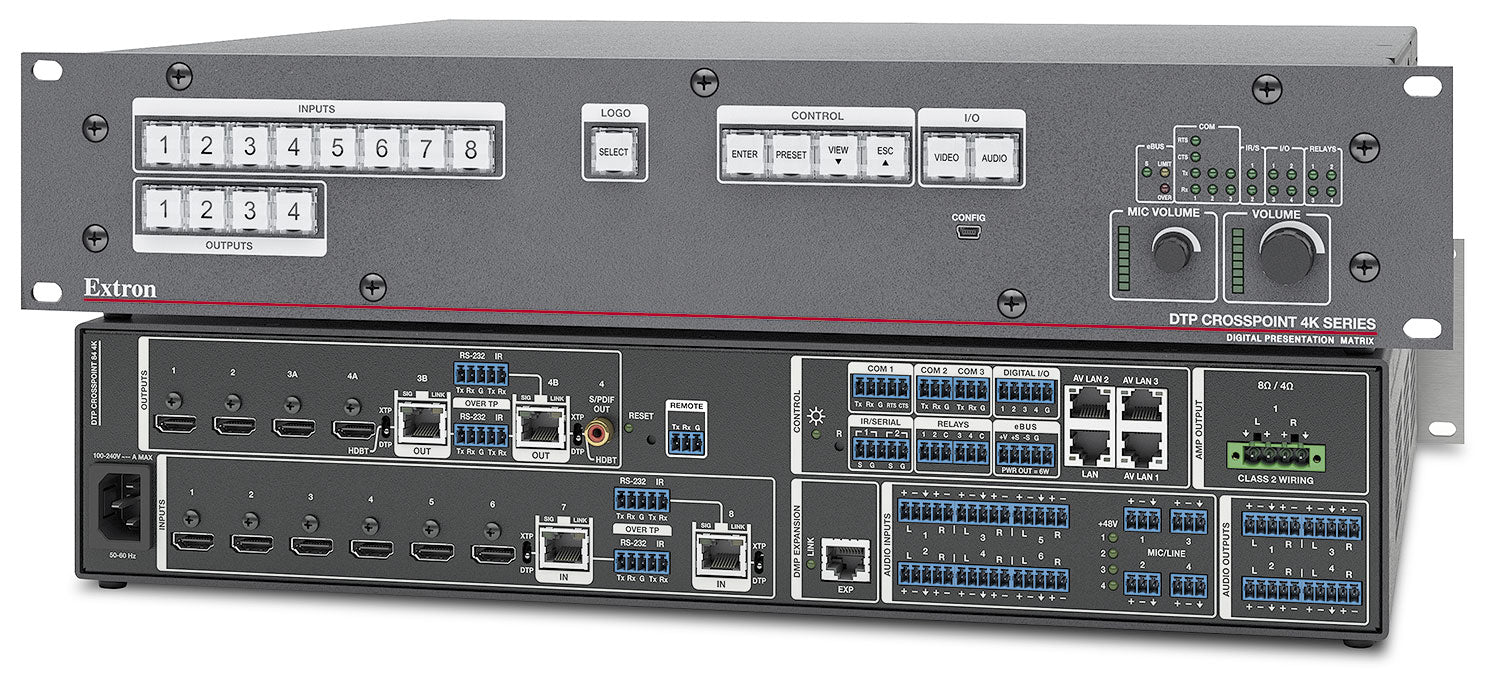

Extron DTP CrossPoint 84 4K IPCP Q SA (part number 60-1515-92) — an 8x4 seamless switching and scaling presentation matrix with an integrated IPCP Q control processor and a built-in stereo power amplifier.
This model collapses several rack units of equipment into one 2U frame: the video matrix, the audio mixer, the room control processor and the loudspeaker amplifier all live in the same chassis. Eight sources feed four destinations, and each of the two scaled outputs is independently configurable for DTP, XTP or HDBaseT twisted pair, so a lectern monitor and a far-wall projector can each be fed the rate they need without bolting on external scalers.
Key Capabilities
- Six HDMI inputs plus two configurable DTP or XTP twisted pair inputs — eight sources in total.
- Two non-scaled HDMI matrix outputs alongside two scaled twisted pair outputs and two buffered HDMI outputs.
- Accepts 4096x2160 and 3840x2160 at 30 Hz; 4K and UHD at 60 Hz pass through the non-scaled HDMI outputs using 4:2:0 subsampling.
- An 8x4 stereo audio matrix runs alongside a 4x4 microphone mixing matrix, fed by four mic/line inputs with switchable +48 VDC phantom power.
- The IPCP Q control processor carries 2 GB of SDRAM and 8 GB of flash, plus a three-port 10/100/1000 AV LAN switch, four relays, four digital I/O points and three serial ports.
- A Class D amplifier drives 25 watts rms per channel into 8 ohms, or 50 watts per channel into 4 ohms.
Where It Is Used
Divisible boardrooms, lecture halls, courtrooms, medical imaging conference suites, simulation labs and command centers — anywhere one rack space has to serve several displays, carry program and microphone audio out to ceiling speakers, and present a single control system to a touchpanel or a web browser.
Specifications at a Glance
- Routing: 8 x 4 video matrix and 8 x 4 stereo audio matrix
- Maximum data rate 10.2 Gbps with a 300 MHz pixel clock
- Power draw 136 watts; thermal dissipation 355 BTU/hr
- Enclosure 3.5 in. H x 17.4 in. W x 15.3 in. D, 2U full rack width, 14 lbs (6.4 kg)
- Warranty: 3 years parts and labor, with 7 years on the Everlast power supply
Also referenced as Extron DTPCrossPoint844KIPCPQSA, DTP-CrossPoint-84-4K-IPCP-Q-SA, part number 60151592.
