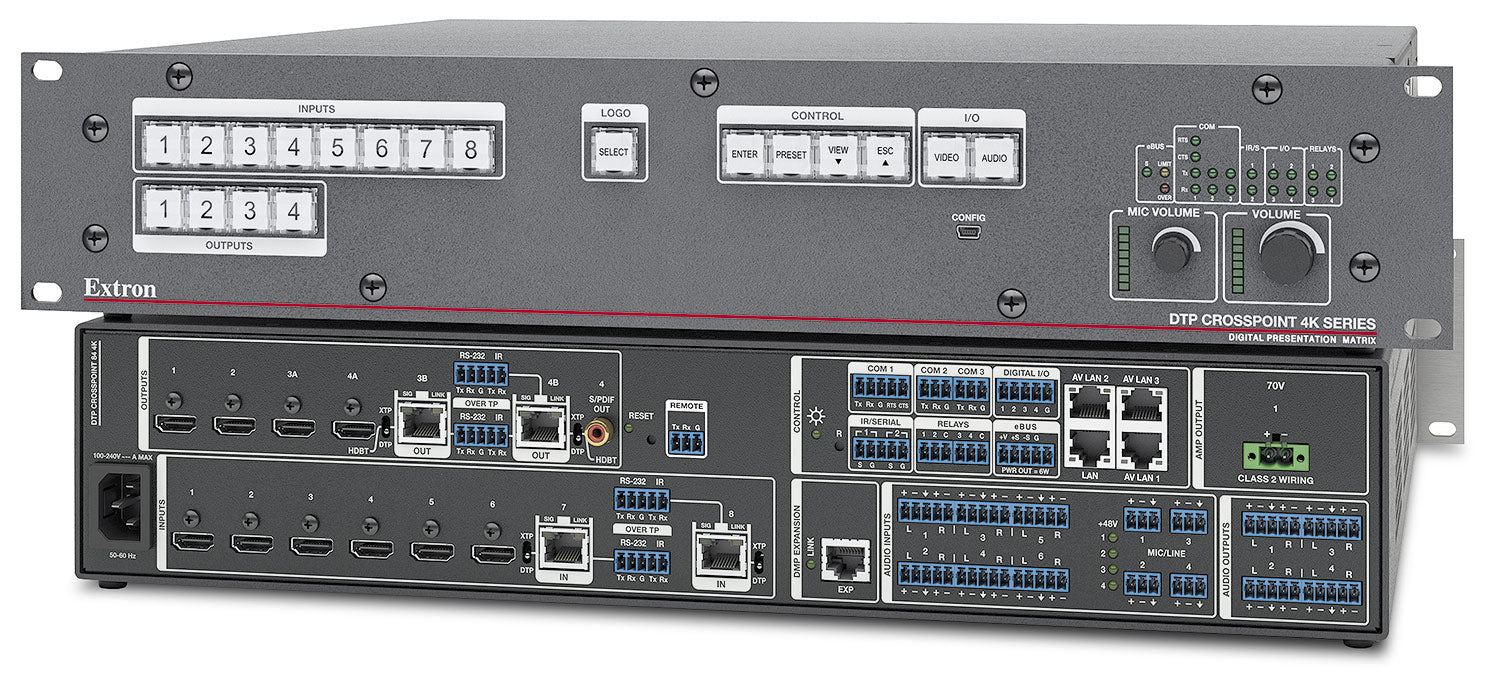

Extron DTP CrossPoint 84 4K IPCP Q MA 70 60-1515-93

Extron DTP CrossPoint 84 4K IPCP Q MA 70 8x4 Matrix Switcher 60-1515-93

Extron DTP CrossPoint 84 4K IPCP Q MA 70 8x4 Matrix Switcher 60-1515-93

Manufacturer: Extron

Type: DTP Systems

Extron DTP CrossPoint 84 4K IPCP Q MA 70 8x4 Matrix Switcher

  • • 8x4 4K matrix switching with Vector 4K scaling on every DTP output
  • • Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout
  • • Integrated 100 W, 70 V mono Class D power amplifier built in
  • • Quad-core IPCP Q control processor with 2 GB SDRAM, 8 GB flash and 3-port AV LAN
  • • Four-channel AEC and automixing for up to eight microphone zones
  • • DTP extension up to 330 ft (100 m) to DTP 330 endpoints over shielded twisted pair

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-DTPCROSSPOINT844KIPCPQMA70-60151593

Details

Extron DTP CrossPoint 84 4K IPCP Q MA 70 (part number 60-1515-93) — an all-in-one 8x4 4K matrix switcher, scaler, audio DSP, and amplifier and control processor built to replace a rack of separate boxes.

Rooms that need multiple displays, sound reinforcement, and centralized control usually end up with a switcher, a scaler, a DSP, an amplifier and a control processor stacked in a rack. The DTP CrossPoint 84 4K IPCP Q MA 70 folds those into a single 2U chassis with six HDMI inputs and two DTP twisted-pair inputs, switching to two HDMI outputs plus two independently scaled DTP outputs, Extron's Vector 4K scaling engine on every DTP output, and a full ProDSP audio engine with four channels of acoustic echo cancellation for conferencing. This unit carries a built-in 100 W, 70 V mono power amplifier and a quad-core IPCP Pro xi (IPCP Q) control processor with 2 GB SDRAM, 8 GB flash, and a dedicated 3-port AV LAN switch.

Key Capabilities

  • 8x4 4K matrix switching with Vector 4K scaling on every DTP output
  • Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout
  • Integrated 100 W, 70 V mono Class D power amplifier built in
  • Quad-core IPCP Q control processor with 2 GB SDRAM, 8 GB flash and 3-port AV LAN
  • Four-channel AEC and automixing for up to eight microphone zones
  • DTP extension up to 330 ft (100 m) to DTP 330 endpoints over shielded twisted pair

The DTP CrossPoint 84 4K IPCP Q MA 70 is built for boardrooms, divisible classrooms, houses of worship and control rooms that need 8x4 video switching, sound reinforcement, and centralized AV control from a single rack space, without wiring together a switcher, scaler, amplifier and controller separately.

Specifications at a Glance

  • Matrix: 8x4 with 4K scaling on DTP outputs
  • Inputs: 6 HDMI + 2 DTP/XTP (configurable)
  • Amplifier: a built-in 100 W, 70 V mono power amplifier
  • Control: a quad-core IPCP Pro xi (IPCP Q) control processor with 2 GB SDRAM, 8 GB flash, and a dedicated 3-port AV LAN switch
  • Enclosure: 2U rack mount, metal

Also referenced as Extron DTPCrossPoint844KIPCPQMA70, DTP-CrossPoint-84-4K-IPCP-Q-MA-70, part number 60151593.
