Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A
Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A
Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A
Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A
Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A
Extron DTP CrossPoint 82 4K IPCP Q SA 60-1583-92A

Extron DTP CrossPoint 82 4K IPCP Q SA 8x2 Matrix Switcher 60-1583-92A

Extron DTP CrossPoint 82 4K IPCP Q SA 8x2 Matrix Switcher 60-1583-92A

Manufacturer: Extron

Type: DTP Systems

Extron DTP CrossPoint 82 4K IPCP Q SA 8x2 Matrix Switcher

  • • 8x2 4K matrix switching with Vector 4K scaling on every DTP output
  • • Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout
  • • Integrated 2 x 50 W stereo Class D power amplifier (2 x 25 W @ 8 ohms) built in
  • • Quad-core IPCP Q control processor with 2 GB SDRAM, 8 GB flash and 3-port AV LAN
  • • Four-channel AEC and automixing for up to eight microphone zones
  • • DTP extension up to 330 ft (100 m) to DTP 330 endpoints over shielded twisted pair
  • • Pre-loaded with the LinkLicense for User Interfaces upgrade for mobile/PC control

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-DTPCROSSPOINT824KIPCPQSA-60158392A

Details

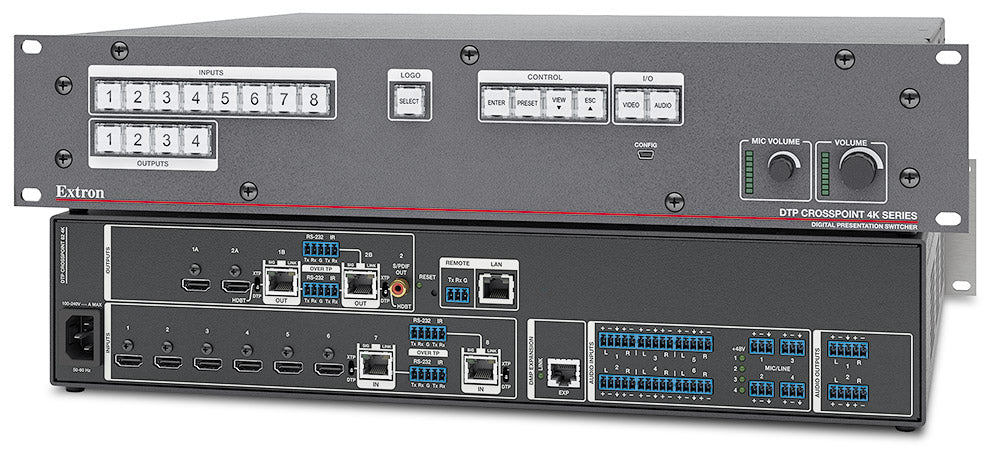

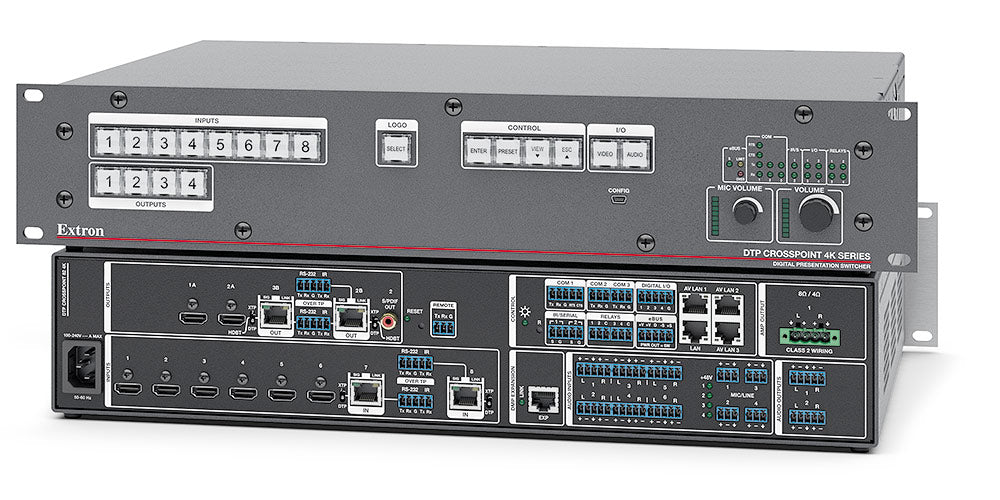

Extron DTP CrossPoint 82 4K IPCP Q SA (part number 60-1583-92A) — an all-in-one 8x2 4K matrix switcher, scaler, audio DSP, and amplifier and control processor built to replace a rack of separate boxes.

Rooms that need multiple displays, sound reinforcement, and centralized control usually end up with a switcher, a scaler, a DSP, an amplifier and a control processor stacked in a rack. The DTP CrossPoint 82 4K IPCP Q SA folds those into a single 2U chassis with six HDMI inputs and two DTP twisted-pair inputs, switching to two independently scaled DTP outputs, Extron's Vector 4K scaling engine on every DTP output, and a full ProDSP audio engine with four channels of acoustic echo cancellation for conferencing. This unit carries a built-in 2 x 50 W stereo power amplifier (2 x 25 W into 8 ohms) and a quad-core IPCP Pro xi (IPCP Q) control processor with 2 GB SDRAM, 8 GB flash, and a dedicated 3-port AV LAN switch. It ships with the LinkLicense for User Interfaces upgrade already applied, so a mobile device or PC can serve as the primary control interface out of the box.

Key Capabilities

  • 8x2 4K matrix switching with Vector 4K scaling on every DTP output
  • Six HDMI and two DTP/XTP-configurable inputs, HDCP compliant throughout
  • Integrated 2 x 50 W stereo Class D power amplifier (2 x 25 W @ 8 ohms) built in
  • Quad-core IPCP Q control processor with 2 GB SDRAM, 8 GB flash and 3-port AV LAN
  • Four-channel AEC and automixing for up to eight microphone zones
  • DTP extension up to 330 ft (100 m) to DTP 330 endpoints over shielded twisted pair

The DTP CrossPoint 82 4K IPCP Q SA is built for boardrooms, divisible classrooms, houses of worship and control rooms that need 8x2 video switching, sound reinforcement, and centralized AV control from a single rack space, without wiring together a switcher, scaler, amplifier and controller separately.

Specifications at a Glance

  • Matrix: 8x2 with 4K scaling on DTP outputs
  • Inputs: 6 HDMI + 2 DTP/XTP (configurable)
  • Amplifier: a built-in 2 x 50 W stereo power amplifier (2 x 25 W into 8 ohms)
  • Control: a quad-core IPCP Pro xi (IPCP Q) control processor with 2 GB SDRAM, 8 GB flash, and a dedicated 3-port AV LAN switch
  • Enclosure: 2U rack mount, metal

Also referenced as Extron DTPCrossPoint824KIPCPQSA, DTP-CrossPoint-82-4K-IPCP-Q-SA, part number 60158392A.
