Extron DTP CrossPoint 108 4K 10x8 Scaling Presentation Matrix Switcher
- • 10x8 matrix switching of HDMI and DTP sources at up to 4K resolution
- • Four independently scaled DTP outputs with Vector 4K scaling
- • Two scaled outputs carry mirrored HDMI for local monitoring
- • DTP extension up to 330 ft (100 m) over shielded twisted pair
- • ProDSP audio with four AEC channels and an eight-group automixer
- • Four mic/line inputs with switchable +48 VDC phantom power
- • Preamp output version: no amplifier and no control processor
- • 3U full-rack metal chassis, 17 lbs, 154 W internal supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

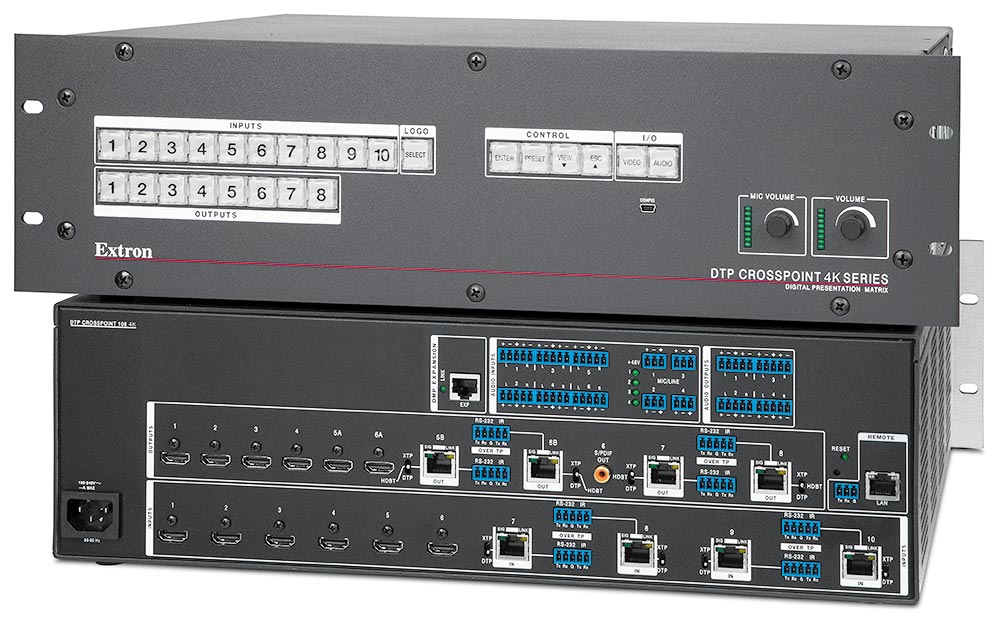

Extron DTP CrossPoint 108 4K (part number 60-1381-01) — a 10x8 seamless 4K scaling presentation matrix switcher with HDMI and DTP twisted pair I/O, built-in scaler and ProDSP audio processing, supplied with preamp outputs and no amplifier or control processor.
Extron built this 3U chassis to replace as many as eleven separate boxes in a large presentation system. Six HDMI inputs and four DTP inputs feed a 10x8 matrix; four HDMI outputs carry unscaled video while four DTP outputs each run through an independent Vector 4K scaling engine with seamless switching and logo keying. The audio side is a full ProDSP processor with a 10x8 stereo switching matrix, a 4x4 microphone mixing matrix, four AEC channels and an eight-group automixer. This part number is the preamp version — choose it when the room already has amplification and a separate control processor.
Key Capabilities
- 10x8 matrix switching of HDMI and DTP sources at resolutions up to 4K (4096x2160).
- Four independently scaled DTP outputs; two carry mirrored HDMI connections for local monitoring.
- Vector 4K scaling with 30-bit precision processing and 4:4:4 chroma sampling.
- DTP extension up to 330 ft (100 m) with DTP 330 endpoints, 230 ft (70 m) with DTP 230.
- Four mic/line inputs with switchable +48 VDC phantom power, matrix mixed into any output.
- EXP port links to an Extron DMP 128 Plus for a further 16 channels in each direction.
Where It Is Used
Large boardrooms, lecture halls, divisible and multipurpose rooms, courtrooms, council chambers and briefing centers — anywhere several displays, several sources and sound reinforcement have to be handled from one rack. The 3U full-rack metal enclosure runs on an internal 100-240 VAC supply.
Specifications at a Glance
- Matrix: 10 x 8, 6 HDMI + 4 DTP inputs, 4 HDMI + 4 scaled DTP outputs
- Maximum data rate 10.2 Gbps (3.4 Gbps per color), HDMI 1.4 / HDCP 1.4
- Audio S/N 105 dB, THD+Noise 0.02% at 1 kHz nominal, 24-bit/48 kHz
- Power consumption 154 W, thermal dissipation 440 BTU/hr
- Enclosure 5.25 in H x 17.4 in W x 16 in D, 17 lbs (7.7 kg)
Also referenced as Extron DTPCrossPoint1084K, DTP-CrossPoint-108-4K, part number 60138101.
