Extron DSP Configurator (part number 79-530-01) — the PC application for configuring Extron DSP audio processing over a direct link.

DSP Configurator centralizes every audio adjustment a processor can make — input mixing, output limiting, filtering, delay — into a single application window instead of requiring changes at the hardware front panel. On Extron switchers with built-in DSP, such as the DTP CrossPoint series, the same software also reaches the video routing and audio breakaway controls, so one tool can set up both signal paths.

Key Capabilities

• Full control interface for Extron DSP mixing, gain, dynamics, filtering, and delay
• Adds microphone ducking, loudness, and feedback suppression management

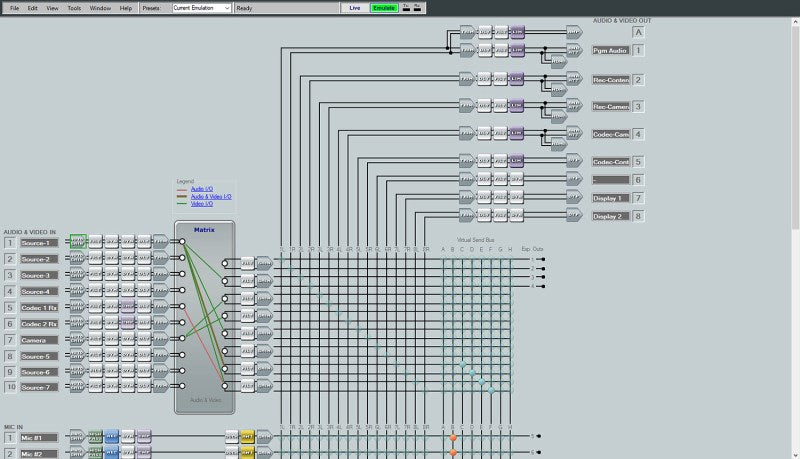

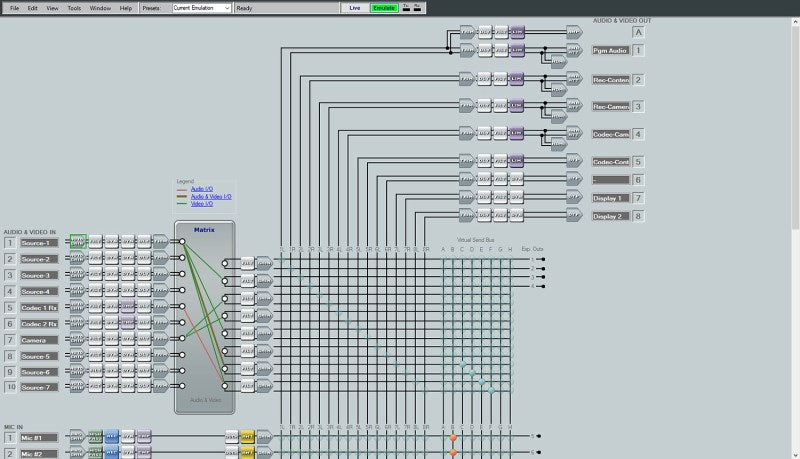

• Controls audio and video routing, including audio breakaway, on DTP CrossPoint switchers

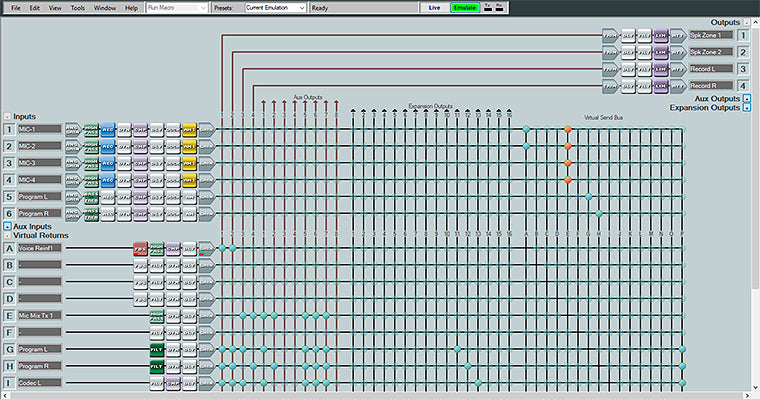

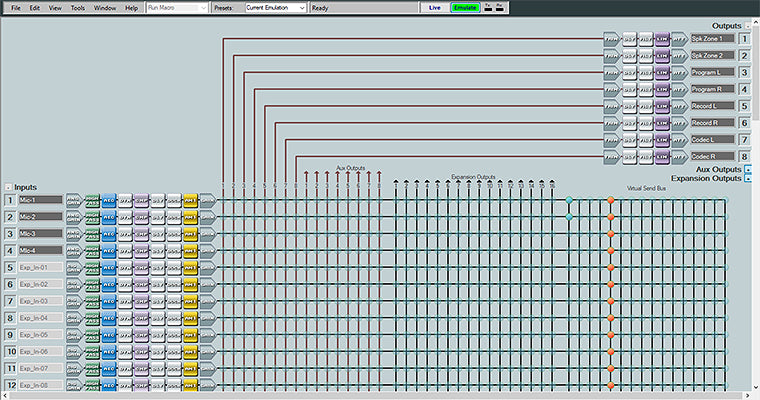

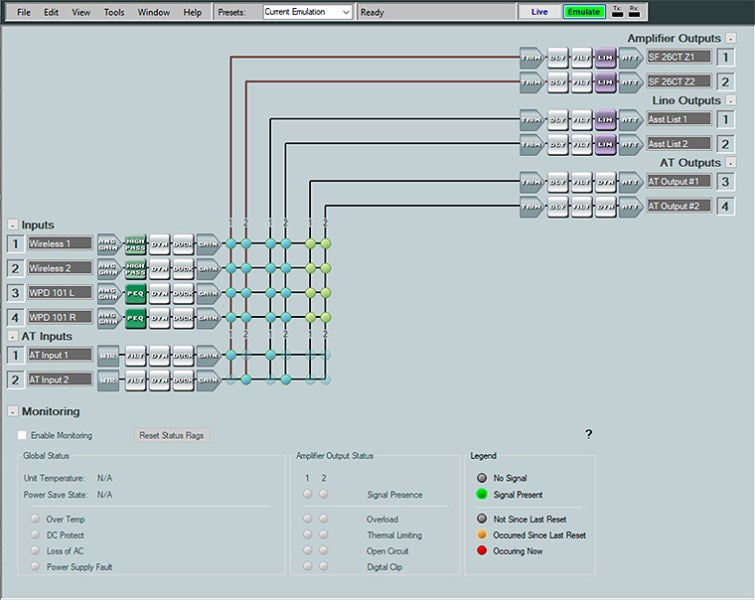

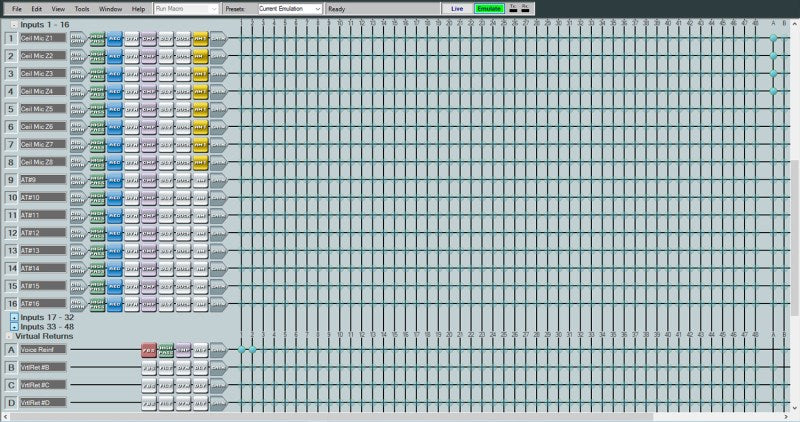

• Provides a graphical processing-block view that can be copied between channels
• Saves complete configurations as presets for reuse on similar installations

Where It Is Used

Used to configure audio processing on standalone Extron DSP units and on DTP CrossPoint matrix switchers with integrated DSP, in boardrooms, classrooms, and multi-zone audio installs.

Specifications at a Glance

• Connection: Direct PC link to Extron DSP hardware
• Functions: Mixing, gain, dynamics, filtering, delay, ducking, feedback suppression
• Also controls: Audio/video routing and breakaway on DTP CrossPoint switchers
• Presets: Full configuration save and recall

Also referenced as ExtronDSPConfiguratorSoftware, Extron-DSP-Configurator, part number 7953001.
