Extron DSP Configurator Pro (part number 79-784-01) — Windows software for configuring Extron audio DSP hardware.

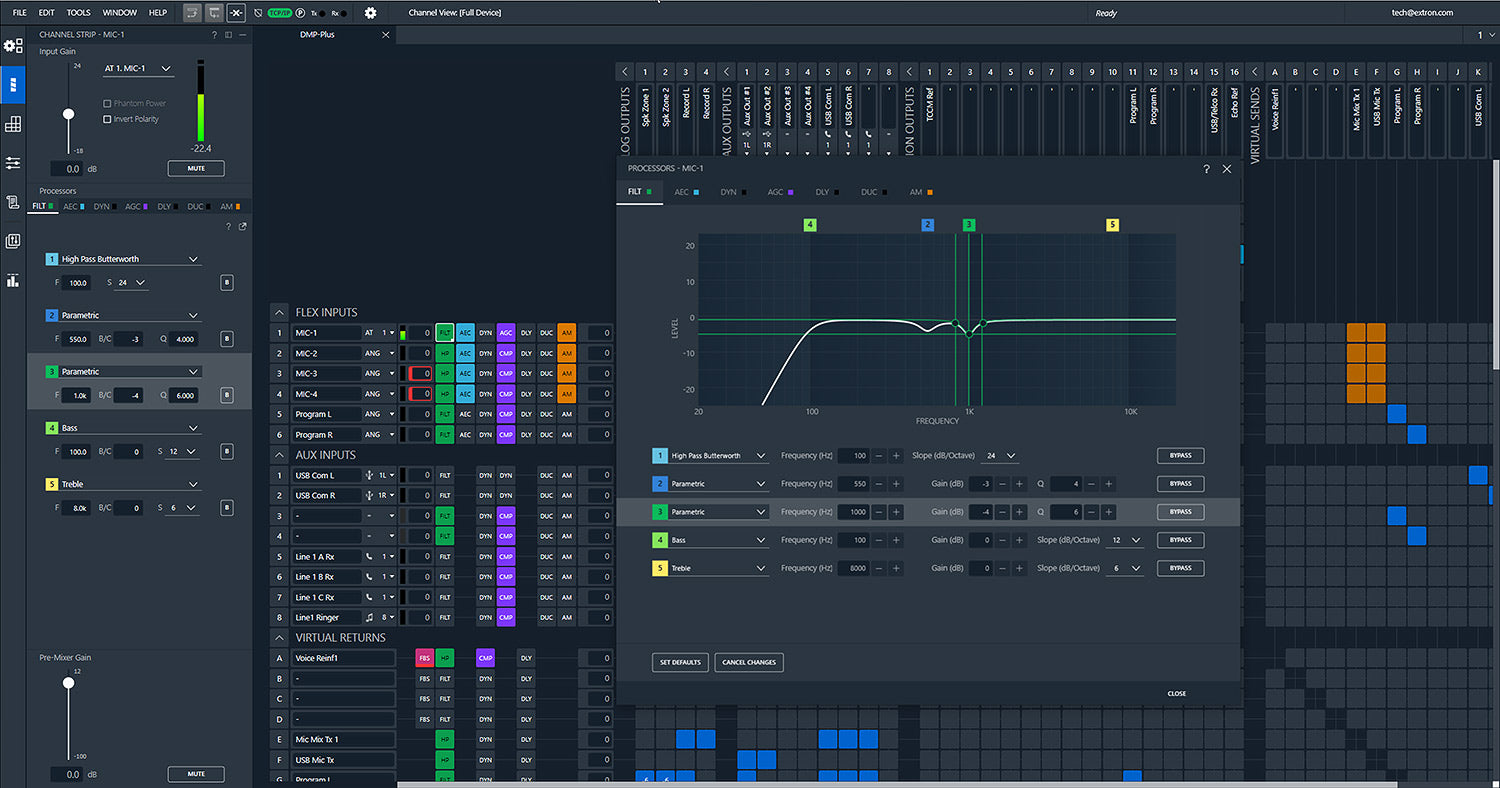

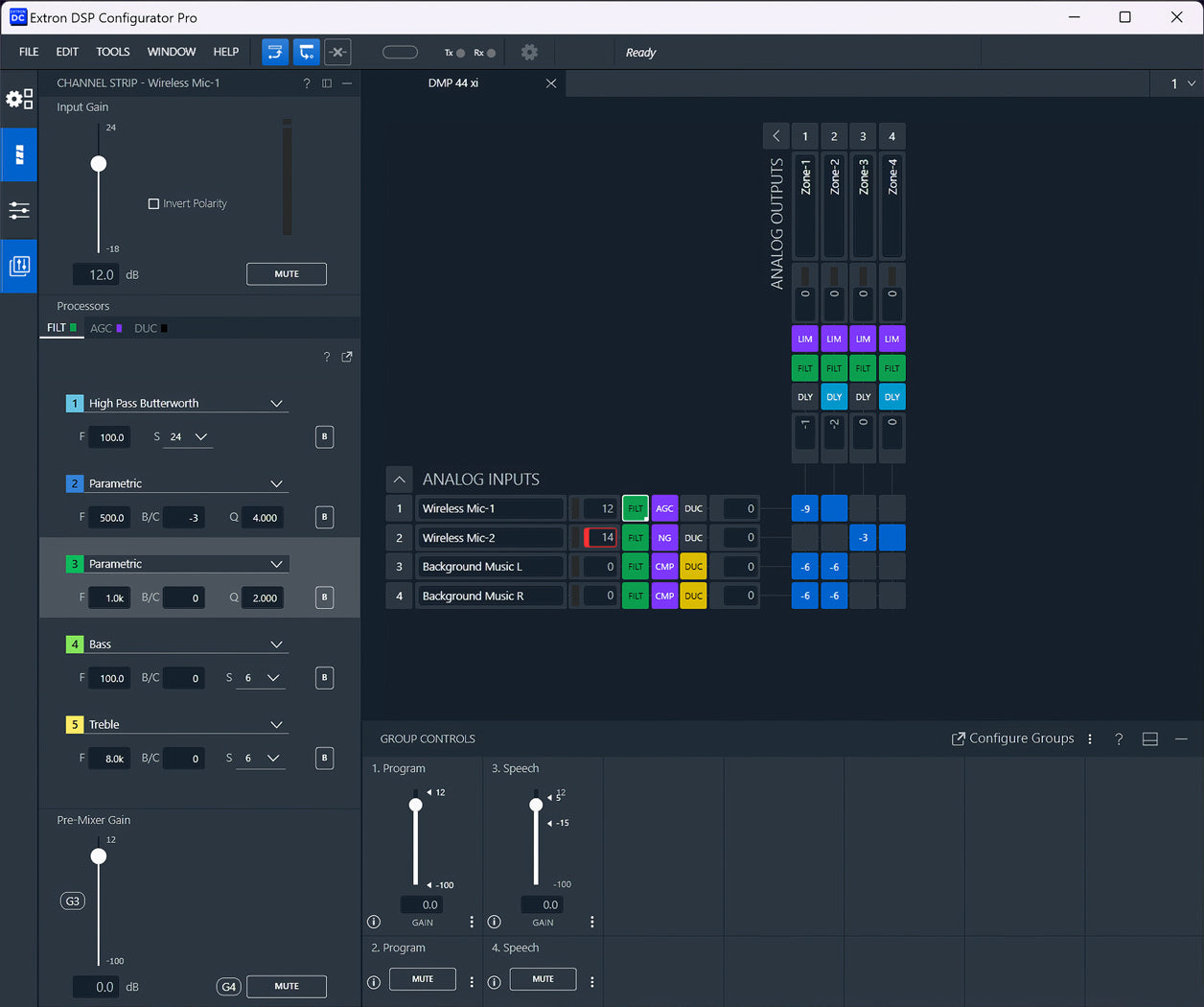

DSP Configurator Pro puts every control for an Extron DSP device — matrix mixing, signal processing, routing — into one workspace so an integrator can build a system offline in Emulate mode and push it to hardware later, or connect live and adjust in real time. Building Blocks speed up the initial layout, and the interface only shows the controls that match whichever DSP unit is actually connected, so the workspace never gets cluttered with irrelevant options.

Key Capabilities

• Manages full audio setup for Extron DSP hardware, including the DMP 64 and DMP 128 series
• Supports Extron Building Blocks for fast initial system layout
• Switches between Live mode for real-time edits and Emulate mode for offline planning
• Integrates preset, group, and macro management in one interface
• Current release is version 1.5.0 (June 2026), a 122.9 MB Windows download

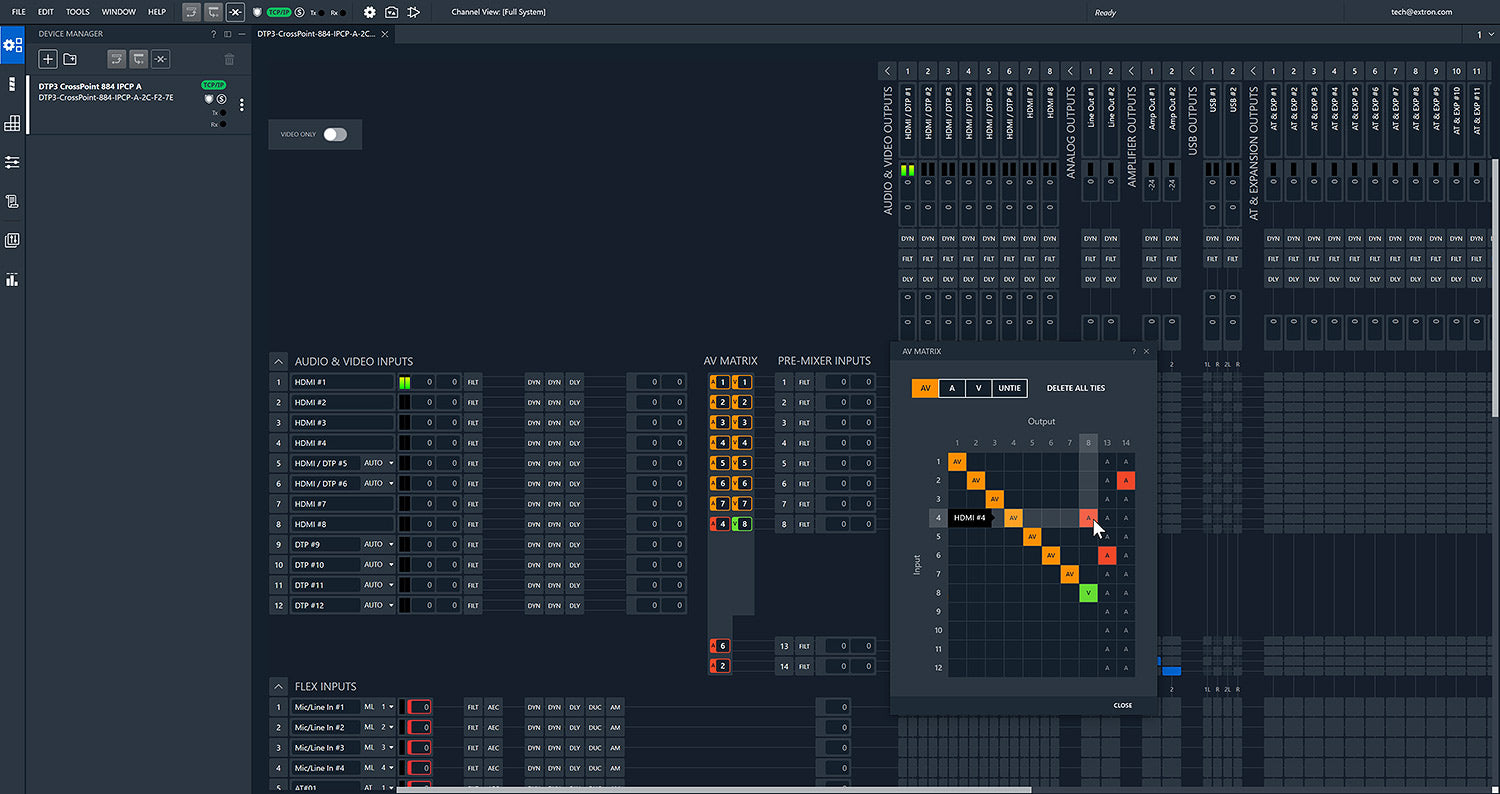

• Adds Undo/Redo for workspace edits and DTP3 CrossPoint conversion support

Where It Is Used

Used by AV integrators preconfiguring conference rooms, classrooms, and multi-zone audio systems built around Extron DSP hardware such as the DMP 128 and NetPA U FX series, before or during on-site commissioning.

Specifications at a Glance

• Platform: Microsoft Windows
• Operating modes: Live, Emulate
• Current version: 1.5.0
• Compatible hardware: DMP 64, DMP 128 series, NetPA U FX, DTP/DTP3 CrossPoint

Also referenced as ExtronDSPConfiguratorPro, Extron-DSP-Configurator-Pro, part number 7978401.
