Details

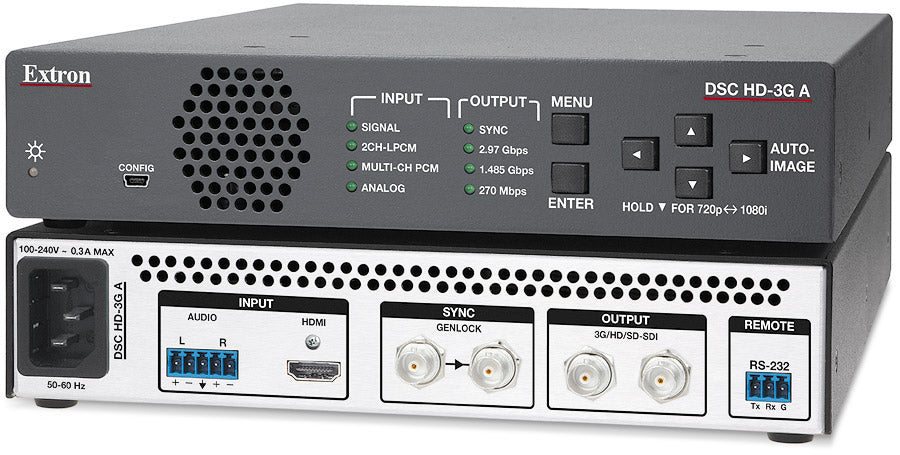

Extron DSC HD-3G A (part number 60-1304-01) is a compact digital scaling converter that moves HDMI sources onto dual broadcast SDI outputs.

Integrators use this converter when an HDMI camera, computer, or media player must feed SDI routers, recorders, or monitors that expect broadcast timing. The unit scales incoming HDMI/DVI signals through a 30-bit processing path and mirrors the result to two 3G/HD/SD-SDI BNC outputs, while an external genlock input with loop-through keeps the SDI output aligned to house sync. Embedded or line-level analog audio rides along with the SDI signal.

Key Capabilities

Scales HDMI/DVI input up to 1920x1200 or 2K to dual mirrored 3G/HD/SD-SDI outputs
Genlock input with loop-through for house sync alignment in broadcast systems
30-bit video processing with motion-adaptive deinterlacing up to 1080i
Embeds HDMI or analog line audio directly into the SDI output stream
USB-B and RS-232 ports support Extron SIS commands for system integration
Half-rack, 1U metal chassis fits a shared rack shelf or an under-desk mount

Where It Is Used

Broadcast trucks, production control rooms, and command centers use the DSC HD-3G A to push HDMI computer or camera sources into SDI routers, recorders, and switchers without adding an external genlock box.

Specifications at a Glance

Input: 1 HDMI Type A, up to 1920x1200 / 2K
Output: 2 female BNC, mirrored 3G/HD/SD-SDI
Data rate: 270 Mbps to 2.97 Gbps
Enclosure: 1.66" H x 8.69" W x 8.5" D, 1.8 lbs

Also referenced as Extron DSCHD3GA, DSC-HD-3G-A, part number 60130401.

Specifications

Part Number: 60-1304-01

Manufacturer: Extron

Model: DSC HD-3G A

Condition: New

Video Input: 1 HDMI/DVI, 1 female HDMI type A

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 120 Hz

Resolution range: 640x480 to 1920x1200 (with reduced blanking), 480i, 576i, 480p, 720p, 1080i, 1080p, and 2K (2048x1080)

Video Input Standards: DVI 1.0, HDMI 1.3

Digital sampling: 30-bit, 8, 10, and 12 bits per color; 165 MHz standard pixel clock

Colors: 1.07 billion (10-bit processing)

Video Output: 2 mirrored 3G/HD/SD-SDI, 2 female BNC (SMPTE 259M-C, 292M, 424M)

Data rates: 270 Mbps to 2.97 Gbps

Video Output level: Nominal 0.8 Vp-p ±10%, 75 ohms

DC offset: ± 0.5 Vp-p with input at 0 offset

Jitter: <0.35 UI

Rise and fall time: 0.6 ns ± 100 ps

Genlock input: 1 female BNC genlock input, 1 female BNC genlock loop output

External sync level: Auto-sensing: tri-level (720p-2K), bi-level (480i, 576i)

Genlock return loss: >30 dB @ 5 MHz (genlock input), ≥21 dB @ 5 MHz (genlock loop output)

Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: 0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

S/N: >90 dB, at full scale output (unweighted)

Stereo channel separation: >80 dB @ 1 kHz

Audio Input: 1 stereo/multi-channel de-embedded from HDMI (PCM only) + 1 stereo/mono balanced/unbalanced, 1 female HDMI type A + 1 5-pole captive screw

Audio Input impedance: >10k ohms unbalanced, >20k ohms balanced

Audio nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVRMS), adjustable

Audio maximum level: +21 dBu balanced, +15 dBu unbalanced

Input gain adjustment: -18 dB to +12 dB, 1 dB steps (analog input only)

Audio Output: 2 AES3, SDI embedded audio, up to 8 channels, 2 female BNC

Serial control port: 1 RS-232 rear panel, 3 pole captive screw connector

Baud rate and protocol: 9600 (default), 8 data bits, 1 stop bit, no parity

USB control port: 1 female mini USB-B, USB 2.0 high speed

Program control: On-screen display (OSD) via front panel; Extron Simple Instruction Set (SIS)

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Power consumption: 11.6 watts

Thermal dissipation: 38.2 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows front to rear

Mounting: Rack mount yes (optional rack shelf); Furniture mount yes (optional under-desk kit)

Enclosure: Metal, 1.66" H x 8.69" W x 8.5" D (1U high, half rack wide), depth excludes connectors

Product weight: 1.8 lbs (0.8 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

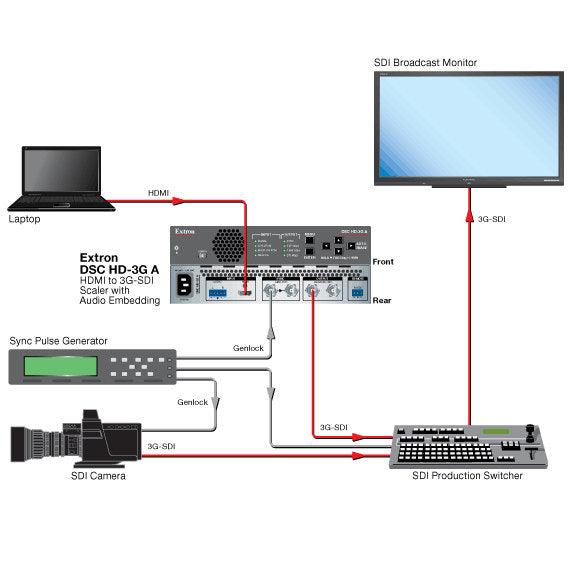

Diagram

Resources

Brochure | DSC HD-3G A 60-1304-01 | DSC HD-3G A (dsc_hd_3g_verA2.pdf)

Brochure | DSC HD-3G A 60-1304-01 | Everlast Power Supplies

Brochure | DSC HD-3G A 60-1304-01 | Alimentatori Everlast

Brochure | DSC HD-3G A 60-1304-01 | DSC HD-3G A (dsc_hd_3g_a_cn.pdf)

Brochure | DSC HD-3G A 60-1304-01 | DSC HD-3G A (DSC-HD-3G-A_BR_A4_SP_RevA2.pdf)

Brochure | DSC HD-3G A 60-1304-01 | Everlast 电源

Brochure | DSC HD-3G A 60-1304-01 | Everlast-Netzteile

Brochure | DSC HD-3G A 60-1304-01 | Fuentes de alimentación Everlast

Brochure | DSC HD-3G A 60-1304-01 | Sources d'alimentation Everlast

Manual | DSC HD-3G A 60-1304-01 | Cleaning Instruction Card

Manual | DSC HD-3G A 60-1304-01 | DSC 3G-HD A and DSC HD-3G A User Guide

Manual | DSC HD-3G A 60-1304-01 | DSC HD-3G A Setup Guide

Specifications | DSC HD-3G A 60-1304-01 | DSC HD-3G A

Panel Drawing | DSC HD-3G A 60-1304-01 | DSC HD-3G A
