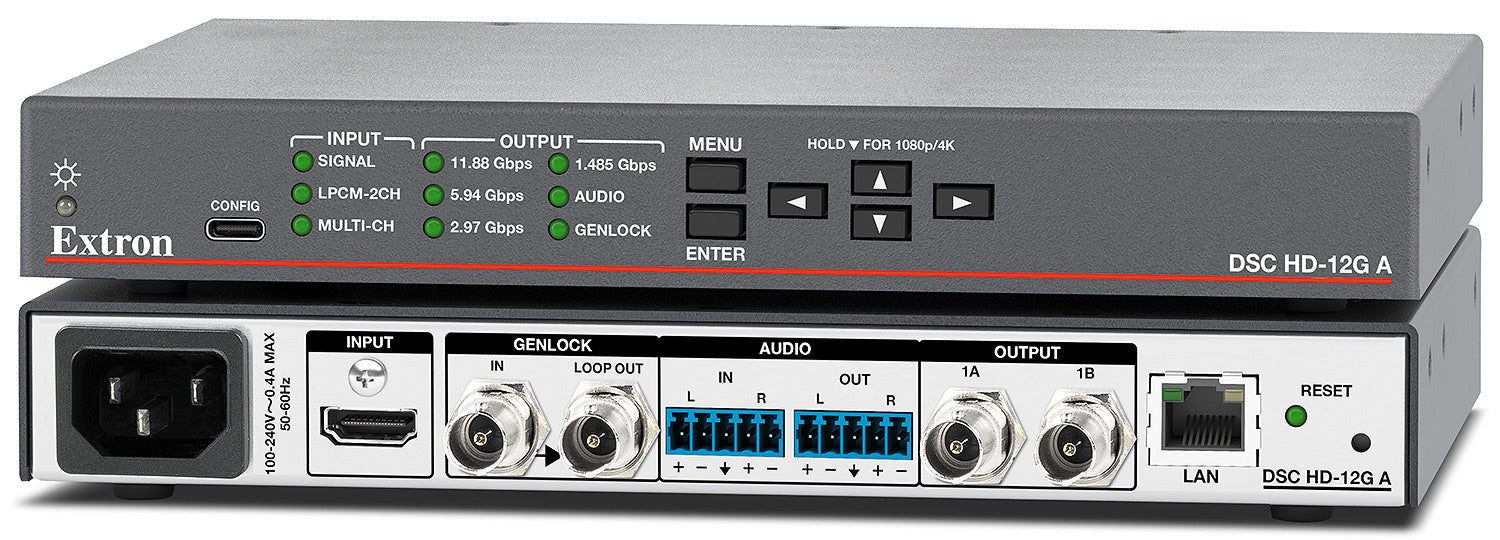

Extron DSC HD-12G A (part number 60-2060-01) is a half-rack scaling converter that pushes an HDMI source onto dual mirrored 12G-SDI outputs.

Integrators reach for this unit when a 4K/60 HDMI camera, computer, or media server must feed broadcast or production gear built around 12G, 6G, 3G, or HD-SDI. The converter processes the incoming signal at up to 4096x2160 at 60 Hz and duplicates it across two SDI BNC outputs, while a genlock input with loop-through keeps timing locked to house sync. Balanced or HDMI-embedded audio rides along with the SDI feed, and Ethernet plus USB-C give integrators two paths for setup and monitoring.

Key Capabilities

Scales HDMI/DVI up to 4096x2160 at 60 Hz to dual mirrored 12G/6G/3G/HD-SDI outputs
Genlock input with loop-through for broadcast timing alignment
18 Gbps HDMI and 11.88 Gbps SDI maximum video data rates
Embeds HDMI or balanced/unbalanced line audio into the SDI outputs
Ethernet and USB-C control ports for network and local configuration

Where It Is Used

Broadcast trucks, production control rooms, and command centers use the DSC HD-12G A to bring HDMI computer or camera sources into 12G-SDI routers, recorders, and multiviewers without an external converter chain.

Specifications at a Glance

Input: 1 HDMI Type A, up to 4096x2160 @ 60 Hz
Output: 2 female BNC, mirrored 12G/6G/3G/HD-SDI
Data rate: HDMI 18 Gbps / SDI 11.88 Gbps
Enclosure: 1.125" H x 8.69" W x 8.68" D, 1.5 lbs

Also referenced as Extron DSCHD12GA, DSC-HD-12G-A, part number 60206001.

Specifications

Part Number: 60-2060-01

Manufacturer: Extron

Model: DSC HD-12G A

Condition: New

Max 4K capability: 4096x2160 @ 60 Hz (4:4:4, 8-bit); 4096x2160 @ 30 Hz (10-bit); 3840x2160 @ 60 Hz (4:2:0 input only, 10-bit)

Video Input: 1 HDMI/DVI, 1 female HDMI

Horizontal frequency: 15 kHz to 270 kHz

Vertical frequency: 24 Hz to 120 Hz

Resolution range: 640x480 to 4096x2160, 480p, 576p, 720p, 1080i, 1080p, and 2K (up to 60 Hz), 3840x2160 to 4096x2160 (up to 60 Hz)

Equalization: Automatic

Input cable length: At 4096x2160@60Hz 4:4:4 8-bit color: HDMI Ultra up to 12 ft (3.6 m), HDMI Pro 25 ft (7.6 m)

Video Input Standards: DVI 1.0, HDMI 1.4 and 2.0

Digital sampling: 10 and 12 bits per color; 600 MHz pixel clock maximum

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Video Output: Two mirrored 12G/6G/3G/HD-SDI, 2 female BNC

Video output level: Nominal 0.8 Vp-p, min/max 0.5-1.0 Vp-p, 75 ohms, with no offset

SDI standards: SMPTE 292M (1.485 Gbps), 424M (2.97 Gbps), ST-2081 (5.94 Gbps), ST-2082 (11.88 Gbps)

Max. video data rate: HDMI 18 Gbps (6 Gbps per color); SDI 11.88 Gbps

Genlock input: 1 female BNC genlock input, 1 female BNC genlock loop output, 75 ohms

External sync level: Auto-sensing: tri-level (720p-4K), bi-level (NTSC and PAL)

Genlock return loss: >30 dB @ 5 MHz (genlock input), ≥21 dB @ 5 MHz (genlock loop output)

Audio gain: Unbalanced output -6 dB, balanced output 0 dB

Audio frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1%, 20 kHz bandwidth at nominal level

S/N (unweighted): >90 dB, at full-scale output

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Stereo channel separation: >80 dB @ 1 kHz

Audio Input: 1 HDMI embedded audio + 1 stereo line level balanced/unbalanced, 1 female HDMI type A + (1) 5-pole captive screw

Audio Input impedance: >10k ohms unbalanced, >20k ohms balanced

Audio nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVRMS), adjustable

Audio maximum level: +21 dBu balanced, +15 dBu unbalanced

CMRR: 65 dB @ 1 kHz

Input gain adjustment: -18 dB to +12 dB, 1 dB steps

Audio Output: 2 AES, SDI embedded audio up to 8 channels + 1 stereo balanced/unbalanced, 2 female BNC + (1) 5-pole captive screw

Audio Output impedance: 100 ohms balanced

Gain error: ± 0.5 dB channel to channel

Audio maximum level (output): >+15 dBu, balanced

Volume range: -100 dB to 0 dB

USB control port: 1 front panel USB-C, Ethernet over USB (RNDIS)

Ethernet connector: 1 female RJ-45, 10/100/1000Base-T half/full duplex with auto-detect

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, HTTPS, Telnet, 802.1X, SFTP, SSH

Storage: At least 512 MB user memory

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Power consumption (full power): 12.5 watts

Power consumption (power save mode): 7.5 watts

Thermal dissipation (full power): 42.6 BTU/hr

Thermal dissipation (power save mode): 25.5 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Passive

Mounting: Rack mount yes (optional rack shelf); Furniture mount yes (optional under-desk or through-desk kit)

Enclosure: Metal, 1.125" H x 8.69" W x 8.68" D (half rack wide), depth excludes connectors

Product weight: 1.5 lbs (0.7 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

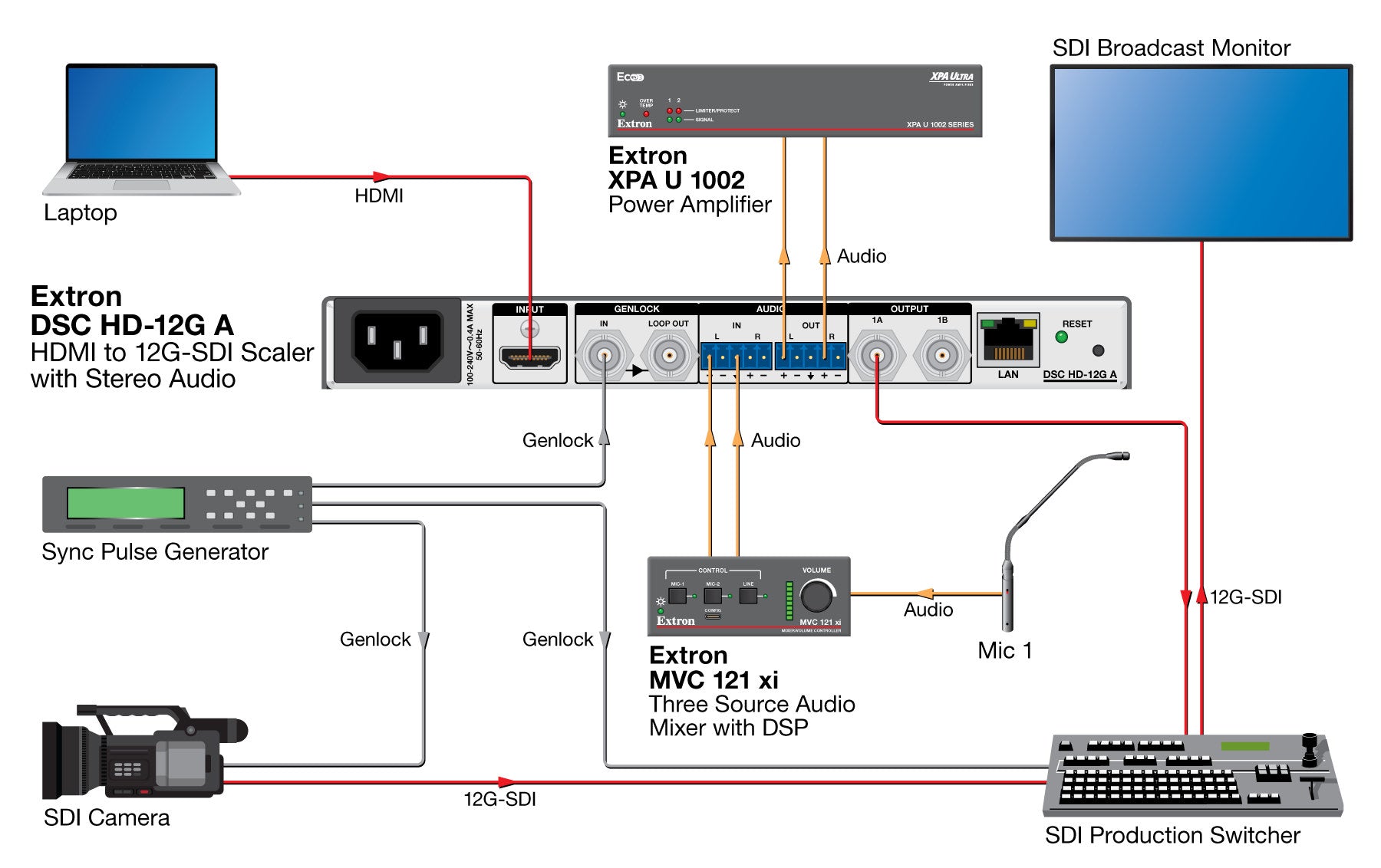

Diagram

Resources

Brochure | DSC HD-12G A 60-2060-01 | DSC HD-12G A

Specifications | DSC HD-12G A 60-2060-01 | DSC HD-12G A

Panel Drawing | DSC HD-12G A 60-2060-01 | DSC HD-12G A

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DSC HD-12G A HDMI to 12G-SDI Digital Scaler 60-2060-01

Name: Extron DSC HD-12G A HDMI to 12G-SDI Digital Scaler 60-2060-01
Brand: Extron
SKU: EXTRON-DSCHD12GA-60206001
Availability: InStock

Manufacturer: Extron

Type: Scalers & Signal Processors

Extron DSC HD-12G A HDMI to 12G-SDI Scaler

• Scales HDMI/DVI up to 4096x2160 at 60 Hz to dual mirrored 12G/6G/3G/HD-SDI outputs
• Genlock input with loop-through for broadcast timing alignment
• 18 Gbps HDMI and 11.88 Gbps SDI maximum video data rates
• Embeds HDMI or balanced/unbalanced line audio into the SDI outputs
• Ethernet and USB-C control ports for network and local configuration
• Backed by Extron's 3-year warranty plus 7-year Everlast power supply coverage
