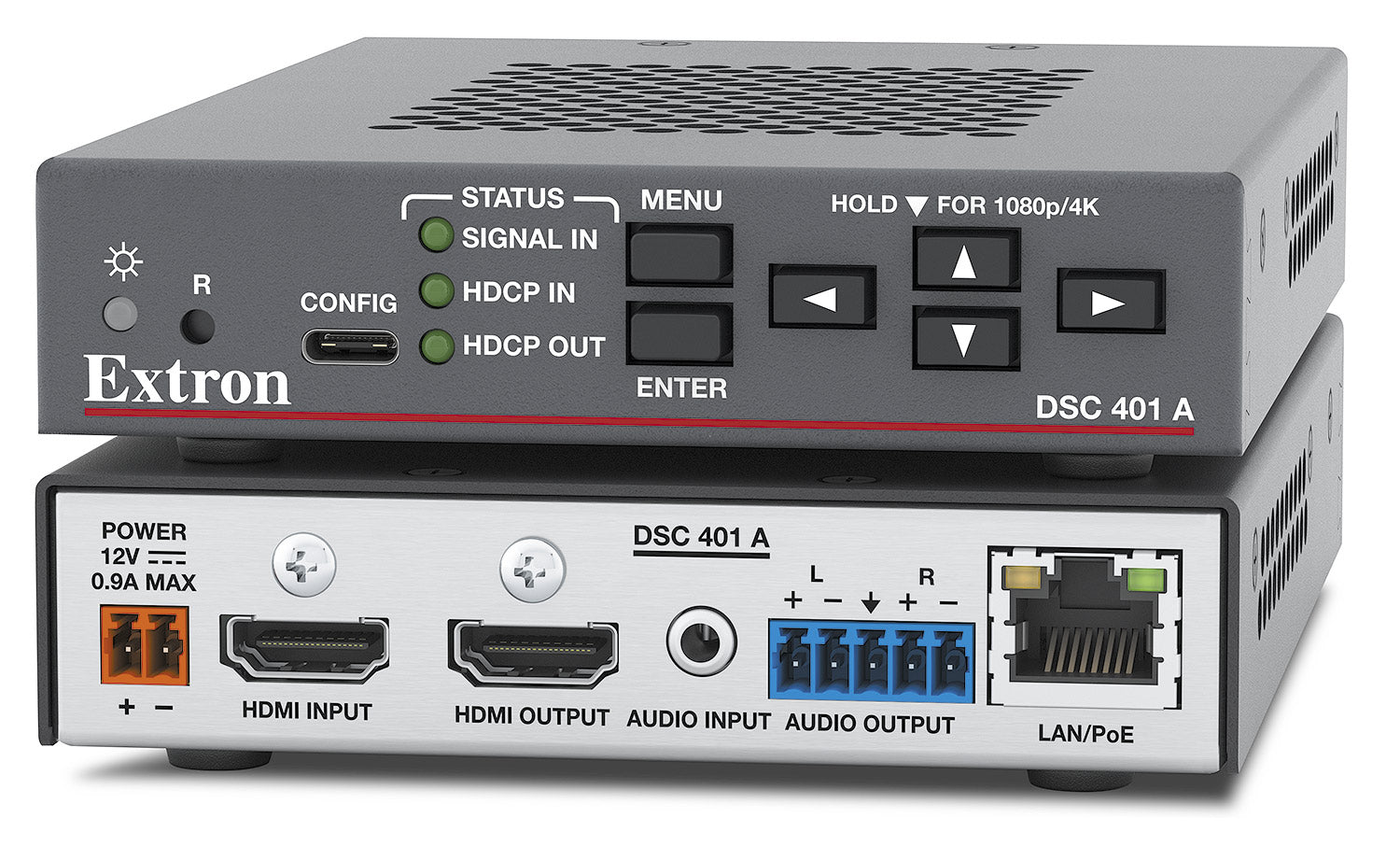

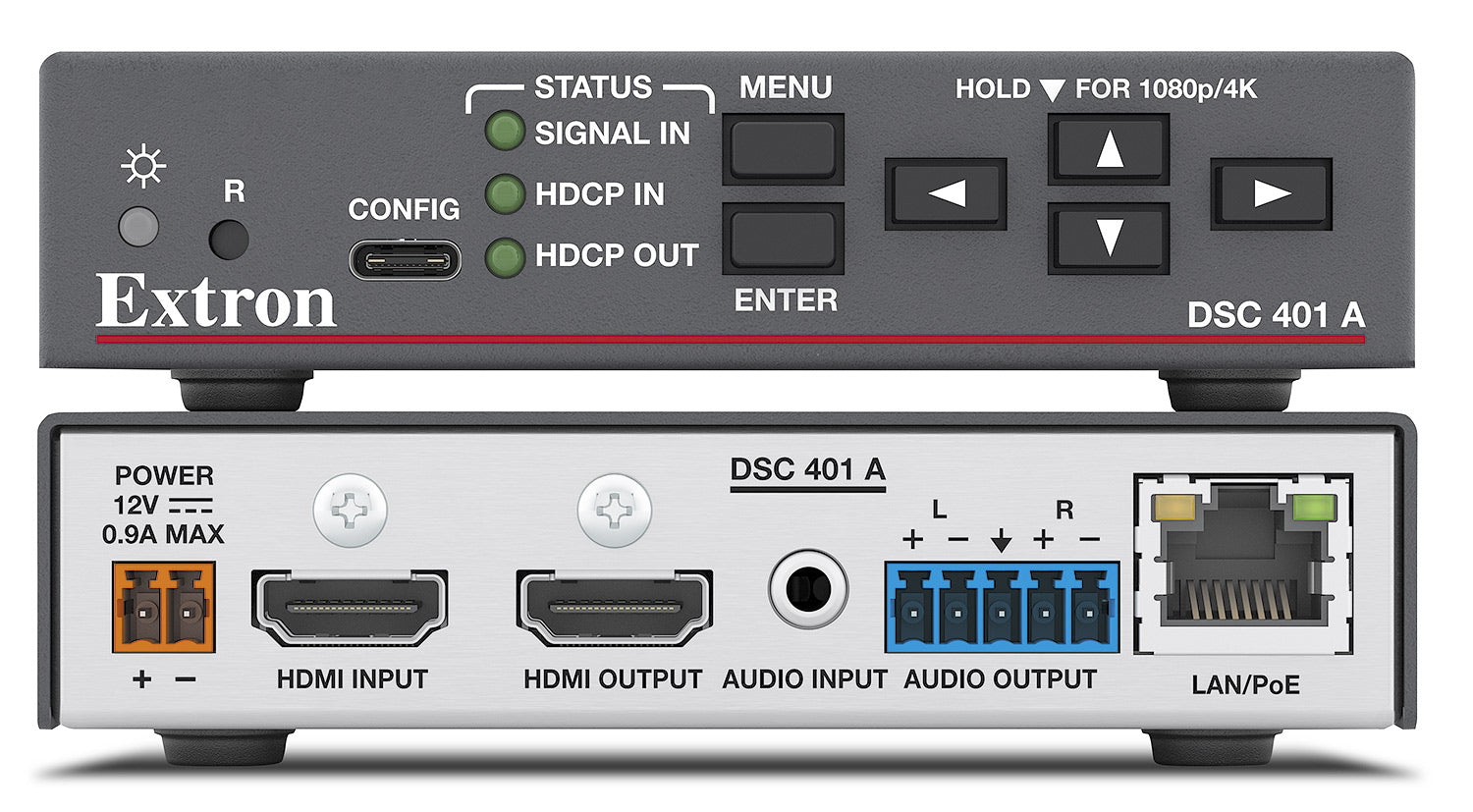

Extron DSC 401 A (part number 60-1878-02) is a quarter-rack HDMI scaling converter that adds analog audio handling and Ethernet control to the base DSC 401.

Like the DSC 401, this unit rescales an HDMI/DVI source anywhere from 480i up to native 4096x2160 for a display that expects a different resolution. The DSC 401 A goes further by de-embedding and embedding analog stereo audio through a 3.5 mm input and a 5-pole captive-screw output, and by adding a PoE-capable Ethernet port so the scaler can be configured and monitored from a network switch instead of only a front-panel USB-C connection.

Key Capabilities

Scales HDMI/DVI signals up to DCI 4K (4096x2160) at 60 Hz, full 4:4:4 chroma
Embeds and de-embeds analog stereo audio, LPCM up to 2.0/24-bit/96 kHz
Ethernet control with PoE (48 VDC) in addition to USB-C RNDIS control
18 Gbps maximum video data rate with HDCP 1.4 and 2.3 support
CEC-enabled HDMI output for coordinated display power and source control

Where It Is Used

Conference rooms and auditoriums use the DSC 401 A when a 4K source and display need resolution matching along with an independent analog audio path and network-based control and monitoring.

Specifications at a Glance

Input/output: HDMI/DVI, up to 4096x2160 @ 60 Hz
Audio: analog de-embed/embed, LPCM up to 2.0/24-bit/96 kHz
Control: Ethernet with PoE, plus USB-C
Enclosure: 1.0" H x 4.25" W x 6.0" D, quarter-rack, 0.6 lbs

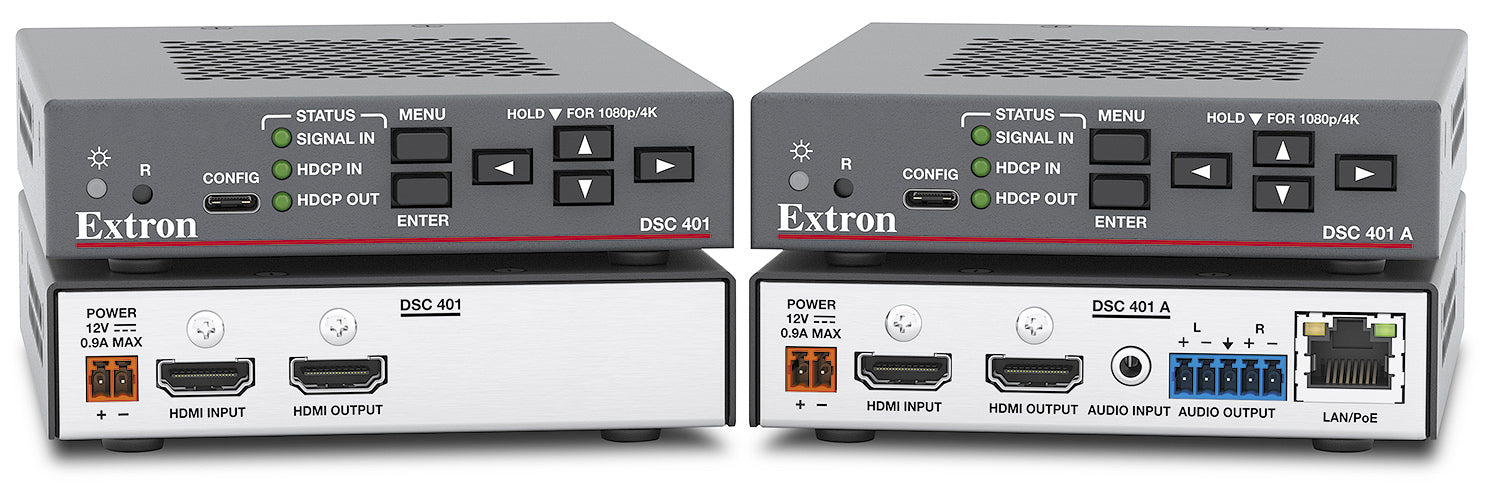

Also referenced as Extron DSC401A, part number 60187802. For the base video-only model, see the Extron DSC 401.

Specifications

Part Number: 60-1878-02

Manufacturer: Extron

Model: DSC 401 A

Condition: New

Max 4K capability: 4096x2160 @ 60 Hz (4:4:4, 8-bit); 4096x2160 @ 30 Hz (10-bit); 3840x2160 @ 60 Hz (4:2:0 input only, 10-bit)

Video Input: 1 HDMI/DVI, 1 female HDMI type A

Horizontal frequency: 15 kHz to 270 kHz

Vertical frequency: 24 Hz to 240 Hz

Resolution range: 640x480 to 4096x2160, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K, and 3840x2160 to 4096x2160, up to 60 Hz

Input cable equalization: Automatic

Input/Output cable length: At 4096x2160@60Hz 4:4:4 8-bit color: HDMI Ultra up to 12 ft (3.6 m), HDMI Pro 25 ft (7.6 m)

Video Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3, CEC on output

Digital sampling: 8 or 10 bits per color, 600 MHz maximum pixel clock

Colors: 1.07 billion (10-bit, 4:4:4 processing)

Video Output: 1 HDMI/DVI with CEC, 1 female HDMI type A

Power for active cables: 1.1 W max. for the HDMI port

Peripheral device power: 250 mA on the HDMI output

Audio gain: Analog in to analog out: 0 dB unbalanced, +6 dB balanced. LPCM-2Ch in to analog out: -6 dB unbalanced, 0 dB balanced

Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1%, 20 Hz to 20 kHz bandwidth at nominal level

S/N (unweighted): >90 dB at max balanced output

Stereo channel separation: >80 dB at 1 kHz

Audio de-embedding: LPCM up to 2.0/24-bit/96 kHz

HDMI audio pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby legacy formats, DTS-X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Audio Input: 1 digital stereo de-embedded from HDMI (LPCM-2Ch) + 1 stereo line level unbalanced, 1 female HDMI A + (1) 3.5 mm TRS

Audio Input impedance: >10k ohms unbalanced

Audio nominal level: Line input -10 dBV (316 mVrms), adjustable

Audio maximum level: +15 dBu unbalanced

CMRR: 65 dB @ 1 kHz

Input gain adjustment: -18 dB to +24 dB, analog input only

Audio Output: 1 HDMI embedded + 1 stereo/mono balanced or unbalanced, 1 female HDMI A + (1) 3.5mm 5-pole captive screw

Audio Output impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.5 dB channel to channel

Maximum level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Volume range: -100 dB to 0 dB in 1.0 dB increments

USB control port: 1 female USB-C on front panel, Ethernet over USB (RNDIS)

Ethernet port: 1 female RJ-45 on rear panel, 10/100/1000 Base-T half/full duplex with auto detect

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Ethernet default settings: Link speed/duplex auto-detected; IP 192.168.254.254; subnet 255.255.0.0; gateway 0.0.0.0; DHCP off

Program control: On-screen display (OSD) via front panel; Extron SIS commands; Extron Product Configuration Software (PCS); Extron Toolbelt Software

Storage: 512 MB user memory

Power supply: External, Input 100-240 VAC, 50-60 Hz

Power input connectors: (1) 2 pole captive screw, 12 VDC; 1 RJ-45 PoE 48 VDC

Power consumption (full power, device + supply): 9.3 watts

Power consumption (power save mode, device + supply): 6.6 watts

Thermal dissipation (full power, device + supply): 30.8 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Convection, vents sides and top

Mounting: Rack mount yes, with optional rack shelf

Enclosure: Metal, 1.0" H x 4.25" W x 6.0" D (1" high, quarter-rack wide), depth excludes connectors

Product weight: 0.6 lbs (0.3 kg)

Regulatory compliance: UL, c-UL, CE, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

Diagram

Resources

Brochure | DSC 401 A 60-1878-02 | DSC 401 & DSC 401 A (dsc-401-dsc-401-a_revA.pdf)

Brochure | DSC 401 A 60-1878-02 | DSC 401 & DSC 401 A (DSC_401_and_DSC_401_A_Rev_A_CN_Online.pdf)

Brochure | DSC 401 A 60-1878-02 | DSC 401 & DSC 401 A (DSC-401-and-DSC-401-A_BR_A4_EN_RevA_Japanese.pdf)

Brochure | DSC 401 A 60-1878-02 | DSC 401 e DSC 401 A

Brochure | DSC 401 A 60-1878-02 | DSC 401 et DSC 401 A

Brochure | DSC 401 A 60-1878-02 | DSC 401 und DSC 401 A

Brochure | DSC 401 A 60-1878-02 | DSC 401 y DSC 401 A

Brochure | DSC 401 A 60-1878-02 | DSC 401 и DSC 401 A

Manual | DSC 401 A 60-1878-02 | Cleaning Instruction Card

Manual | DSC 401 A 60-1878-02 | DSC 401 and DSC 401 A Setup Guide

Manual | DSC 401 A 60-1878-02 | DSC 401 and DSC 401 A User Guide

Specifications | DSC 401 A 60-1878-02 | DSC 401 and 401 A

Panel Drawing | DSC 401 A 60-1878-02 | DSC 401
