Details

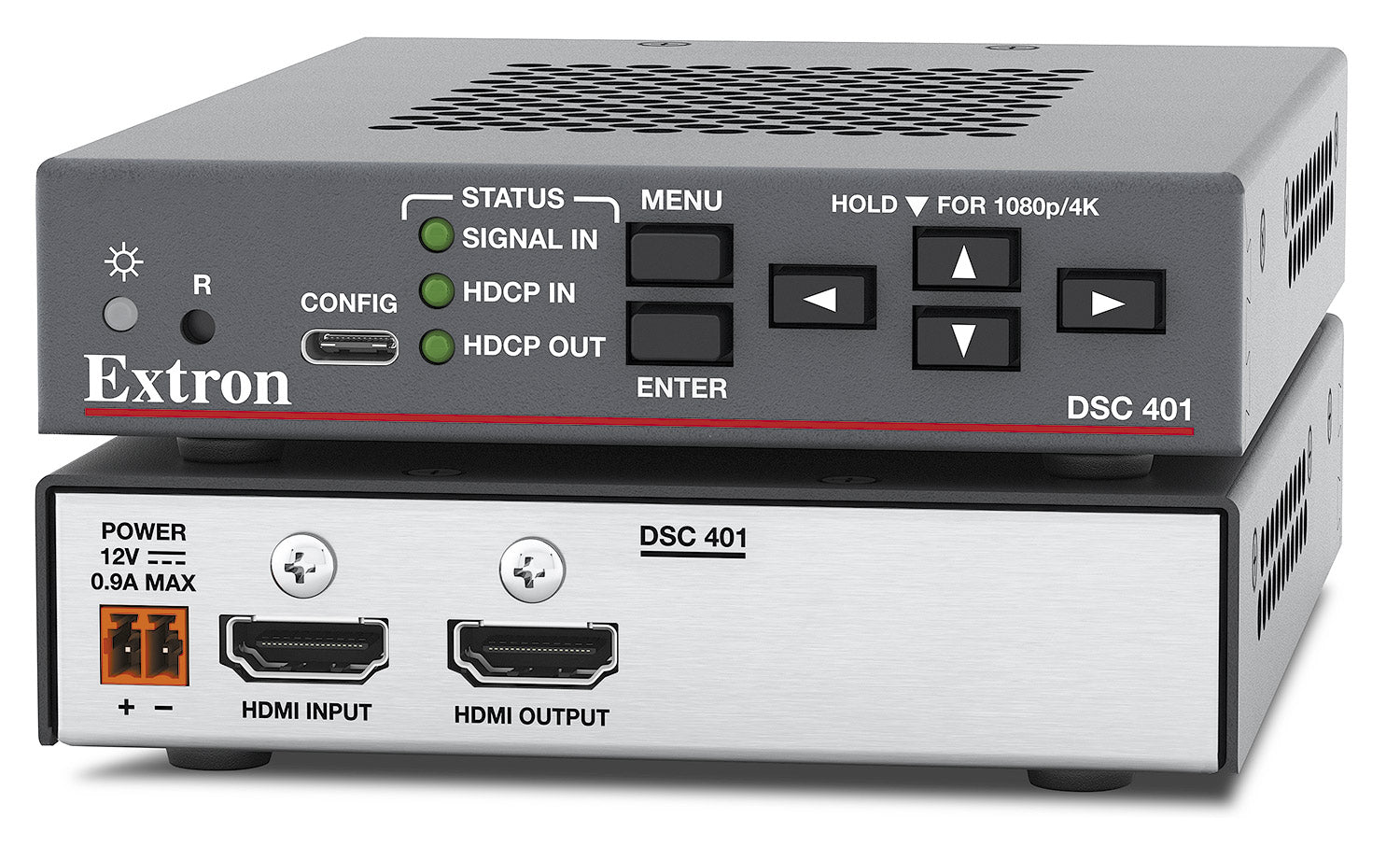

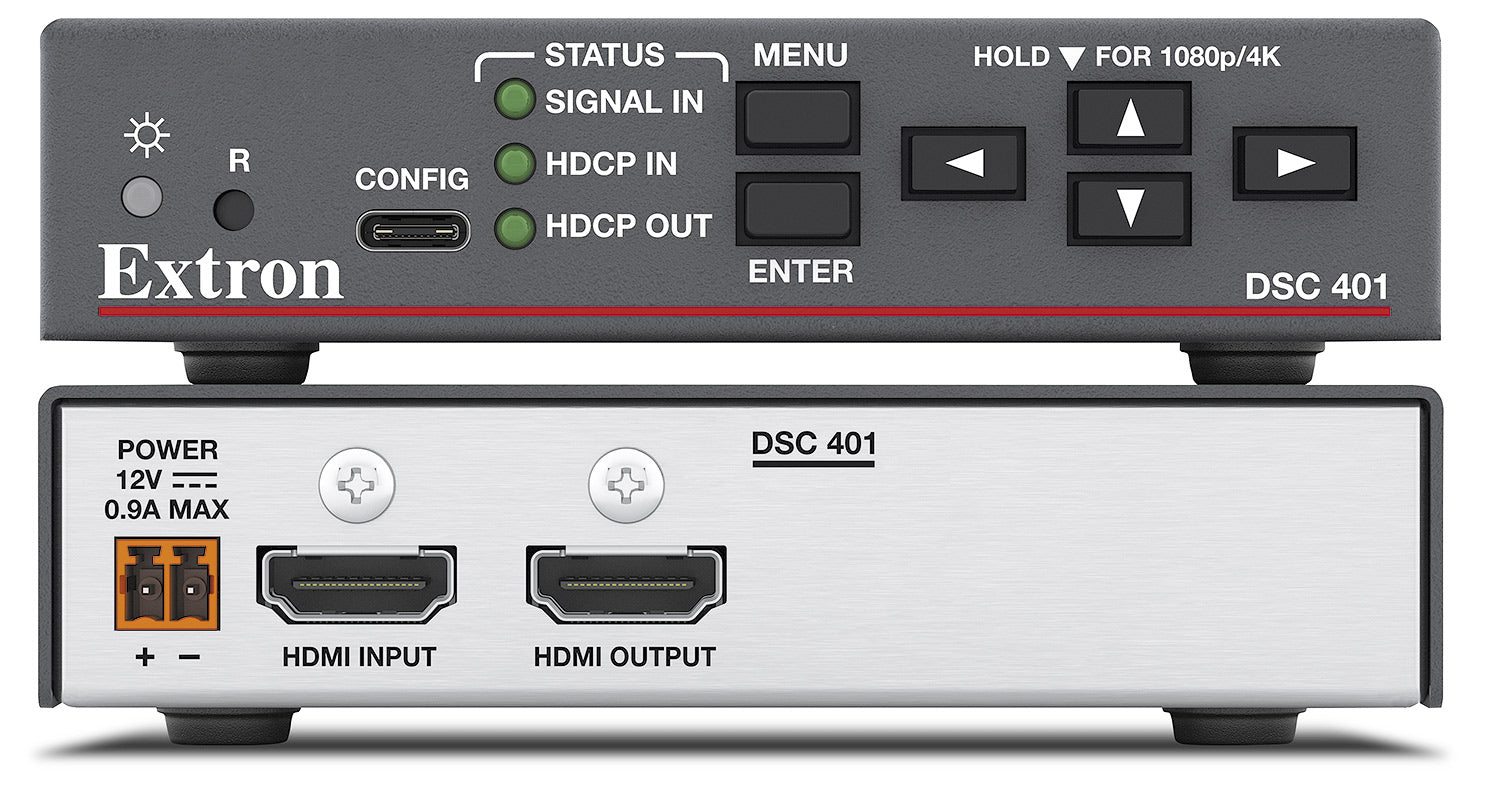

Extron DSC 401 (part number 60-1878-01) is a quarter-rack HDMI scaling converter built for clean 4K/60 signal matching.

This is the base model in the DSC 401 line: it accepts an HDMI/DVI source anywhere from 480i up to native 4096x2160 and rescales it to a chosen HDMI output resolution, so a source and a display that do not natively agree can still run together without a separate scaler box. The processing path supports full 4:4:4 chroma at 60 Hz and 10-bit color at 30 Hz, and HDCP 1.4 and 2.3 pass through so protected content still displays correctly.

Key Capabilities

Scales HDMI/DVI signals up to DCI 4K (4096x2160) at 60 Hz, full 4:4:4 chroma
18 Gbps maximum video data rate with HDCP 1.4 and 2.3 support
8 or 10-bit color processing at up to 600 MHz pixel clock
HDMI pass-through for Dolby Atmos, Dolby TrueHD, and DTS-X audio formats
USB-C control port with Extron SIS, PCS, and Toolbelt software support

Where It Is Used

Conference rooms and auditoriums use the DSC 401 to reconcile a 4K source with a display or processor that needs a different resolution, keeping a single-link HDMI signal chain intact without swapping cabling.

Specifications at a Glance

Input/output: HDMI/DVI, up to 4096x2160 @ 60 Hz
Max video data rate: 18 Gbps (6 Gbps per color)
Enclosure: 1.0" H x 4.25" W x 6.0" D, quarter-rack, 0.6 lbs
Control: USB-C, Extron SIS / PCS / Toolbelt

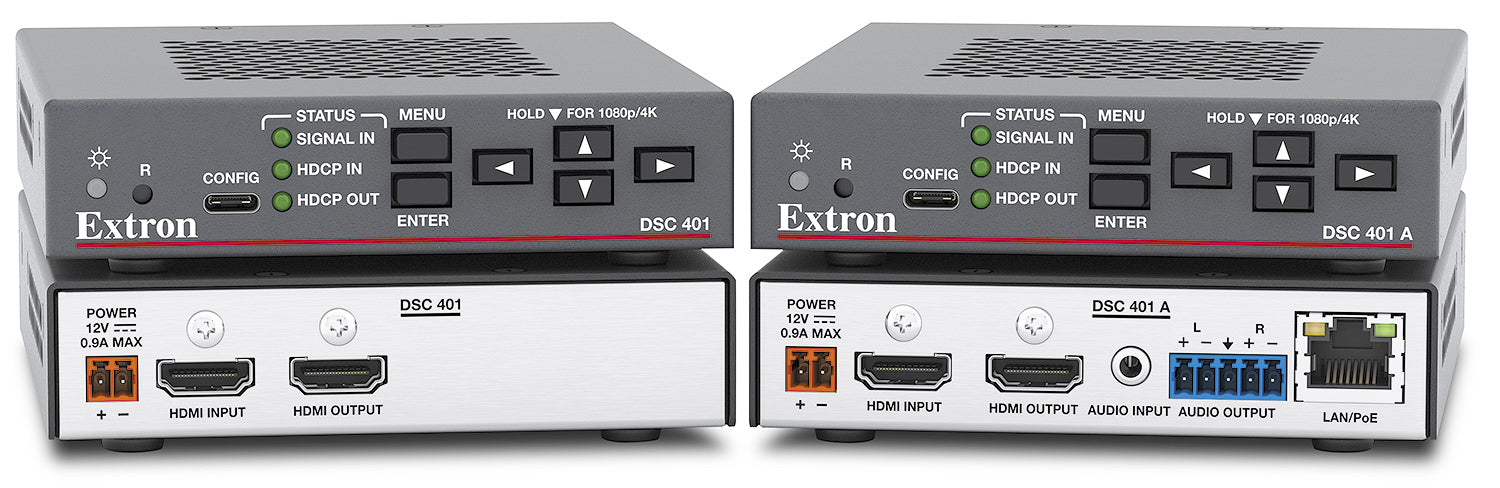

Also referenced as Extron DSC401, part number 60187801. For the audio-and-Ethernet variant, see the Extron DSC 401 A.

Specifications

Part Number: 60-1878-01

Manufacturer: Extron

Model: DSC 401

Condition: New

Max 4K capability: 4096x2160 @ 60 Hz (4:4:4, 8-bit); 4096x2160 @ 30 Hz (10-bit); 3840x2160 @ 60 Hz (4:2:0 input only, 10-bit)

Video Input: 1 HDMI/DVI, 1 female HDMI type A

Horizontal frequency: 15 kHz to 270 kHz

Vertical frequency: 24 Hz to 240 Hz

Resolution range: 640x480 to 4096x2160, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K, and 3840x2160 to 4096x2160, up to 60 Hz

Input cable equalization: Automatic

Input/Output cable length: At 4096x2160@60Hz 4:4:4 8-bit color: HDMI Ultra up to 12 ft (3.6 m), HDMI Pro 25 ft (7.6 m)

Video Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Digital sampling: 8 or 10 bits per color, 600 MHz maximum pixel clock

Colors: 1.07 billion (10-bit, 4:4:4 processing)

Video Output: 1 HDMI/DVI, 1 female HDMI type A

Power for active cables: 1.1 W max. for the HDMI port

Peripheral device power: 250 mA on the HDMI output

Audio Input: 1 digital stereo, de-embedded from HDMI (LPCM-2Ch only), 1 female HDMI type A

Audio Output: 1 HDMI embedded, 1 female HDMI type A

HDMI audio pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby legacy formats, DTS-X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

USB control port: 1 female USB-C on front panel, Ethernet over USB (RNDIS)

Program control: On-screen display (OSD) via front panel; Extron SIS commands; Extron Product Configuration Software (PCS); Extron Toolbelt Software

Storage: 512 MB user memory

Power supply: External, Input 100-240 VAC, 50-60 Hz

Power input connector: (1) 2 pole captive screw, 12 VDC

Power consumption (full power, device + supply): 8.1 watts

Power consumption (power save mode, device + supply): 5.4 watts

Thermal dissipation (full power, device + supply): 26.7 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Convection, vents sides and top

Mounting: Rack mount yes, with optional rack shelf

Enclosure: Metal, 1.0" H x 4.25" W x 6.0" D (1" high, quarter-rack wide), depth excludes connectors

Product weight: 0.6 lbs (0.3 kg)

Regulatory compliance: UL, c-UL, CE, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

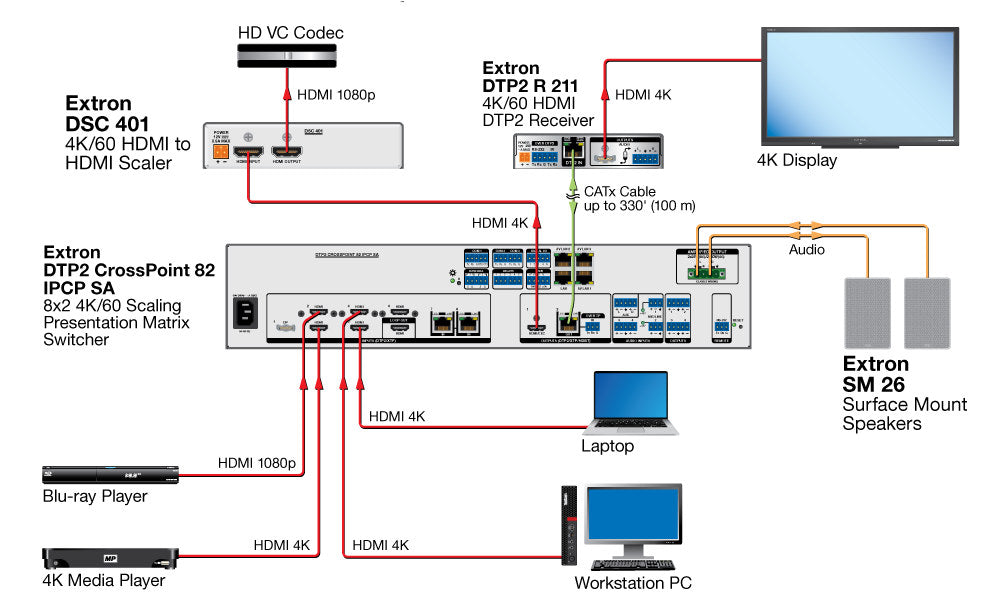

Diagram

Resources

Brochure | DSC 401 60-1878-01 | DSC 401 & DSC 401 A (dsc-401-dsc-401-a_revA.pdf)

Brochure | DSC 401 60-1878-01 | DSC 401 & DSC 401 A (DSC_401_and_DSC_401_A_Rev_A_CN_Online.pdf)

Brochure | DSC 401 60-1878-01 | DSC 401 & DSC 401 A (DSC-401-and-DSC-401-A_BR_A4_EN_RevA_Japanese.pdf)

Brochure | DSC 401 60-1878-01 | DSC 401 e DSC 401 A

Brochure | DSC 401 60-1878-01 | DSC 401 et DSC 401 A

Brochure | DSC 401 60-1878-01 | DSC 401 und DSC 401 A

Brochure | DSC 401 60-1878-01 | DSC 401 y DSC 401 A

Brochure | DSC 401 60-1878-01 | DSC 401 и DSC 401 A

Manual | DSC 401 60-1878-01 | Cleaning Instruction Card

Manual | DSC 401 60-1878-01 | DSC 401 and DSC 401 A Setup Guide

Manual | DSC 401 60-1878-01 | DSC 401 and DSC 401 A User Guide

Specifications | DSC 401 60-1878-01 | DSC 401 and 401 A

Panel Drawing | DSC 401 60-1878-01 | DSC 401
