Extron DSC 3G-HD A (part number 60-1303-01) is a compact digital scaling converter built to move broadcast SDI signals onto the HDMI ecosystem.

Integrators reach for this unit when a camera, router, or switcher speaks only 3G-SDI, HD-SDI, or SD-SDI and the downstream display or capture device accepts HDMI. The converter reclocks and automatically equalizes the incoming SDI signal, runs it through a 10-bit scaling path, and outputs HDMI with embedded stereo audio, removing the need for a separate audio embedder. A looping BNC output lets the same SDI feed continue on to a second destination such as a monitor or recorder.

Key Capabilities

Accepts 3G/HD/SD-SDI on a single BNC with automatic cable equalization up to -30 dB of loss
Scales to HDMI at resolutions up to 2K (2048x1080) with motion-adaptive deinterlacing
Embeds SDI-carried or line-level analog audio into the HDMI output
USB-B and RS-232 ports support Extron SIS commands for system integration
Half-rack, 1U metal chassis fits a shared rack shelf or an under-desk mount

Where It Is Used

Broadcast trucks, production control rooms, and medical imaging suites use the DSC 3G-HD A to bridge SDI camera or router feeds into HDMI display walls, recorders, or streaming encoders without replacing existing SDI infrastructure.

Specifications at a Glance

Input: 1 BNC, 3G/HD/SD-SDI up to 2.97 Gbps
Output: 1 HDMI Type A with embedded audio
Scaling: up to 2K (2048x1080), 10-bit color
Enclosure: 1.66" H x 8.69" W x 8.6" D, 1.8 lbs

Also referenced as Extron DSC3GHDA, DSC-3G-HD-A, part number 60130301.

Specifications

Part Number: 60-1303-01

Manufacturer: Extron

Model: DSC 3G-HD A

Condition: New

Video Input: (1) 3G/HD/SD-SDI digital video, 1 female BNC + 1 female BNC loop-through

Nominal level: 0.8 Vp-p

Impedance: 75 ohms

Horizontal frequency: 15 kHz to 70 kHz

Vertical frequency: 24 Hz to 60 Hz

Resolution range: 480i, 576i, 720p, 1080i, 1080PsF, 1080p, and 2K (2048x1080)

Return loss: ≥15 dB @ 5 MHz to 1.5 GHz

Input cable equalization: Automatic for up to -30 dB of cable loss

3G-SDI cable distance: 60 m (200') using RG6, 45 m (150') using RG59

HD-SDI cable distance: 120 m (400') using RG6, 90 m (300') using RG59

SD-SDI cable distance: 150 m (500') using RG6, 120 m (400') using RG59

Operation standards: SMPTE 259M-C, 292M, 424M

Digital sampling: 10 and 12 bits per color; 148.5 MHz pixel clock

Colors: 1.07 billion (10-bit processing)

Video Output: 1 HDMI/DVI, 1 female HDMI type A

Video Output Standards: DVI 1.0, HDMI 1.3

Audio Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

S/N: >90 dB, at maximum output (unweighted)

Stereo channel separation: >80 dB @ 1 kHz

Audio Input: 1 SDI embedded AES3 audio + 1 stereo/mono balanced/unbalanced, 1 female BNC + 1 5-pole captive screw

Audio Input impedance: 10k ohms unbalanced, >20k ohms balanced

Audio nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVRMS), adjustable

Audio maximum level: +21 dBu balanced, +15 dBu unbalanced

Input gain adjustment: -18 dB to 0 dB, 1 dB steps (SDI); -18 dB to +12 dB, 1 dB steps (analog)

Audio Output: 1 HDMI, embedded audio (PCM), 1 female HDMI type A

Serial control port: 1 RS-232, 3 pole captive screw connector

Baud rate and protocol: 9600 (default), 8 data bits, 1 stop bit, no parity

USB control port: 1 female mini USB-B, USB 2.0 high speed

Program control: On-screen display (OSD) via front panel; Extron Simple Instruction Set (SIS)

Power supply: Internal, Input 100-240 VAC, 50-60 Hz

Power consumption: 10.5 watts

Thermal dissipation: 34.5 BTU/hr

Ambient temperature/humidity: Storage -40 to +158°F / 10-90% noncondensing; Operating +32 to +122°F / 10-90% noncondensing

Cooling: Fan, air flows front to rear

Mounting: Rack mount yes (optional rack shelf); Furniture mount yes (optional under-desk kit)

Enclosure: Metal, 1.66" H x 8.69" W x 8.6" D (1U high, half rack wide), depth excludes connectors

Product weight: 1.8 lbs (0.8 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

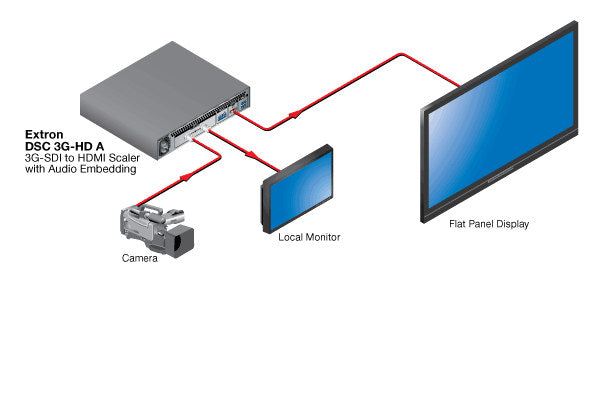

Diagram

Resources

Brochure | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A (dsc_3g_hd_verA2.pdf)

Brochure | DSC 3G-HD A 60-1303-01 | Everlast Power Supplies

Brochure | DSC 3G-HD A 60-1303-01 | Alimentatori Everlast

Brochure | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A (dsc_3g_hd_a_cn.pdf)

Brochure | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A (DSC-3G-HD-A_BR_A4_SP_RevA2.pdf)

Brochure | DSC 3G-HD A 60-1303-01 | Everlast 电源

Brochure | DSC 3G-HD A 60-1303-01 | Everlast-Netzteile

Brochure | DSC 3G-HD A 60-1303-01 | Fuentes de alimentación Everlast

Brochure | DSC 3G-HD A 60-1303-01 | Sources d'alimentation Everlast

Manual | DSC 3G-HD A 60-1303-01 | Cleaning Instruction Card

Manual | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A and DSC HD-3G A User Guide

Manual | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A Setup Guide

Specifications | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A

Panel Drawing | DSC 3G-HD A 60-1303-01 | DSC 3G-HD A

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

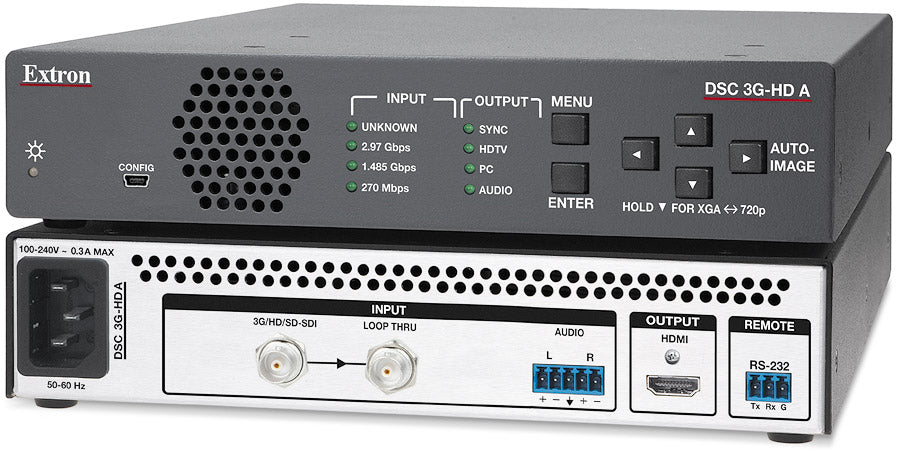

Extron DSC 3G-HD A 3G-SDI to HDMI Digital Scaler 60-1303-01
