Details

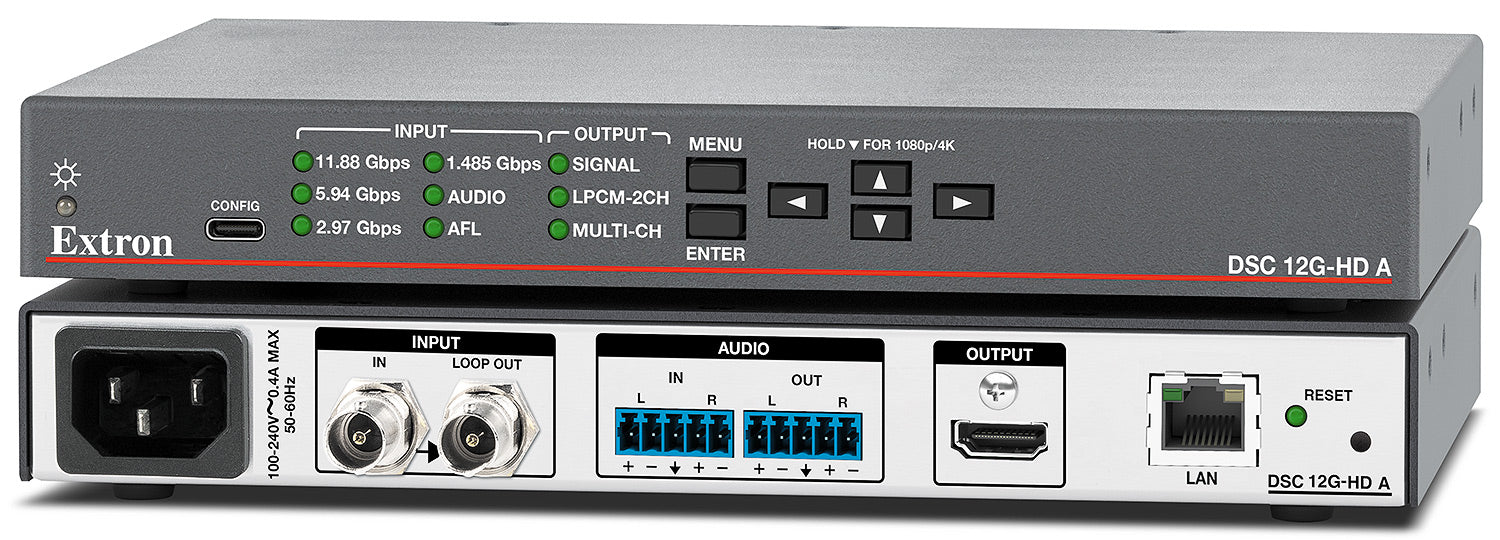

Extron DSC 12G-HD A (part number 60-2061-01) — a compact digital scaling converter that bridges 12G-SDI production sources into HDMI display chains.

Broadcast and production integrators use this unit to accept 12G-SDI, 6G-SDI, 3G-SDI, or HD-SDI signals on a single BNC input and scale them out to HDMI at resolutions from 720p up to 4096x2160 at 60 Hz, closing the gap when a camera or switcher only speaks SDI but the display or capture chain needs HDMI. An SDI loop-through lets the same feed continue downstream, and embedded or analog audio can ride along on either side of the conversion.

Key Capabilities

Converts 12G/6G/3G/HD-SDI to HDMI, scaling up to 4096x2160 @ 60 Hz at 4:4:4
SDI loop-through output plus balanced/unbalanced analog audio I/O
Motion-adaptive deinterlacing for clean 1080i-to-progressive conversion
BNC cable runs up to 70 m at 12G-SDI, extending to 240 m at HD-SDI
Everlast power supply backed by a 7-year parts and labor warranty

Where It Is Used

Broadcast control rooms, houses of worship, and command centers use the DSC 12G-HD A to feed SDI camera and switcher output into HDMI displays, recorders, or streaming encoders without a separate outboard converter.

Specifications at a Glance

2 female BNC (SDI in + loop), 1 female HDMI type A output
Max video data rate: HDMI 18 Gbps, SDI 11.88 Gbps
Half-rack metal enclosure 1.125" H x 8.69" W x 8.68" D, 1.4 lbs
Passive cooling, internal 100-240 VAC power supply

Also referenced as Extron DSC12GHDA, DSC-12G-HD-A, part number 60206101.

Specifications

Part Number: 60-2061-01

Manufacturer: Extron

Model: DSC 12G-HD A

Condition: New

Video input: 1 SDI (12G/6G/3G/HD-SDI), 1 loop output, 2 female BNC

Impedance: 75 ohms

BNC cable length: 12G-SDI 70 m (230 ft); 6G-SDI 90 m (295 ft); 3G-SDI 180 m (500 ft); HD-SDI 240 m (787 ft)

Equalization: Automatic

Horizontal frequency: 12 kHz to 135 kHz

Vertical frequency: 24 Hz to 60 Hz

SMPTE standards supported: 292M (720p/1080i/1080p HD), 424M Level A (1080p/2K), ST-2081 (3840/4096x2160 up to 30 Hz), ST-2082 (3840/4096x2160 up to 60 Hz)

Video output: 1 HDMI/DVI, 1 female HDMI type A

Max. video data rate: HDMI 18 Gbps (6 Gbps per color); SDI 11.88 Gbps

Chroma sampling: 4:4:4, 4:2:2 (4:2:2 input only)

Color bit depth: 8 or 10 bits per color (10 bits input only)

Digital sampling: 10 and 12 bits per color; 600 MHz pixel clock maximum

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Output cable length (4096x2160 @ 60 Hz, 4:4:4, 8-bit): HDMI Ultra up to 12 ft (3.6 m); HDMI Pro 25 ft (7.6 m)

Power for active cables: 1.1 W max. for the HDMI port

Peripheral device power: 250 mA on the HDMI output

Audio input: 1 SDI embedded AES audio, 1 stereo/mono balanced/unbalanced, 1 female BNC, 1 five-pole captive screw

Audio output: 1 SDI embedded loop, 1 stereo line level, 1 HDMI embedded audio

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

S/N (unweighted): >90 dB at full-scale output

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Stereo channel separation: >80 dB @ 1 kHz

Gain: Unbalanced output -6 dB; balanced output 0 dB

Maximum level: +21 dBu balanced, +15 dBu unbalanced

Input gain adjustment: -18 to +24 dB, 1 dB steps

Volume range: -100 dB to 0 dB

USB control port: 1 front panel USB-C, Ethernet over USB (RNDIS)

Ethernet connector: 1 female RJ-45, 10/100/1000Base-T

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, HTTPS, Telnet, 802.1X, SFTP, SSH

Storage: At least 512 MB user memory

Power supply: Internal, 100-240 VAC 50-60 Hz

Power consumption: 13.9 W full power; 7.5 W power save mode

Ambient temperature/humidity: Storage -40 to +158°F (-40 to +70°C) / 10-90% noncondensing; Operating +32 to +122°F (0 to +50°C) / 10-90% noncondensing

Cooling: Passive

Mounting: Rack mount with optional rack shelf; furniture mount with optional under-desk or through-desk kit

Enclosure type: Metal

Enclosure dimensions: 1.125" H x 8.69" W x 8.68" D, half rack wide (29 mm H x 222 mm W x 152 mm D); depth excludes connectors

Product weight: 1.4 lbs (0.7 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC, ICES, VCCI, RoHS, WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

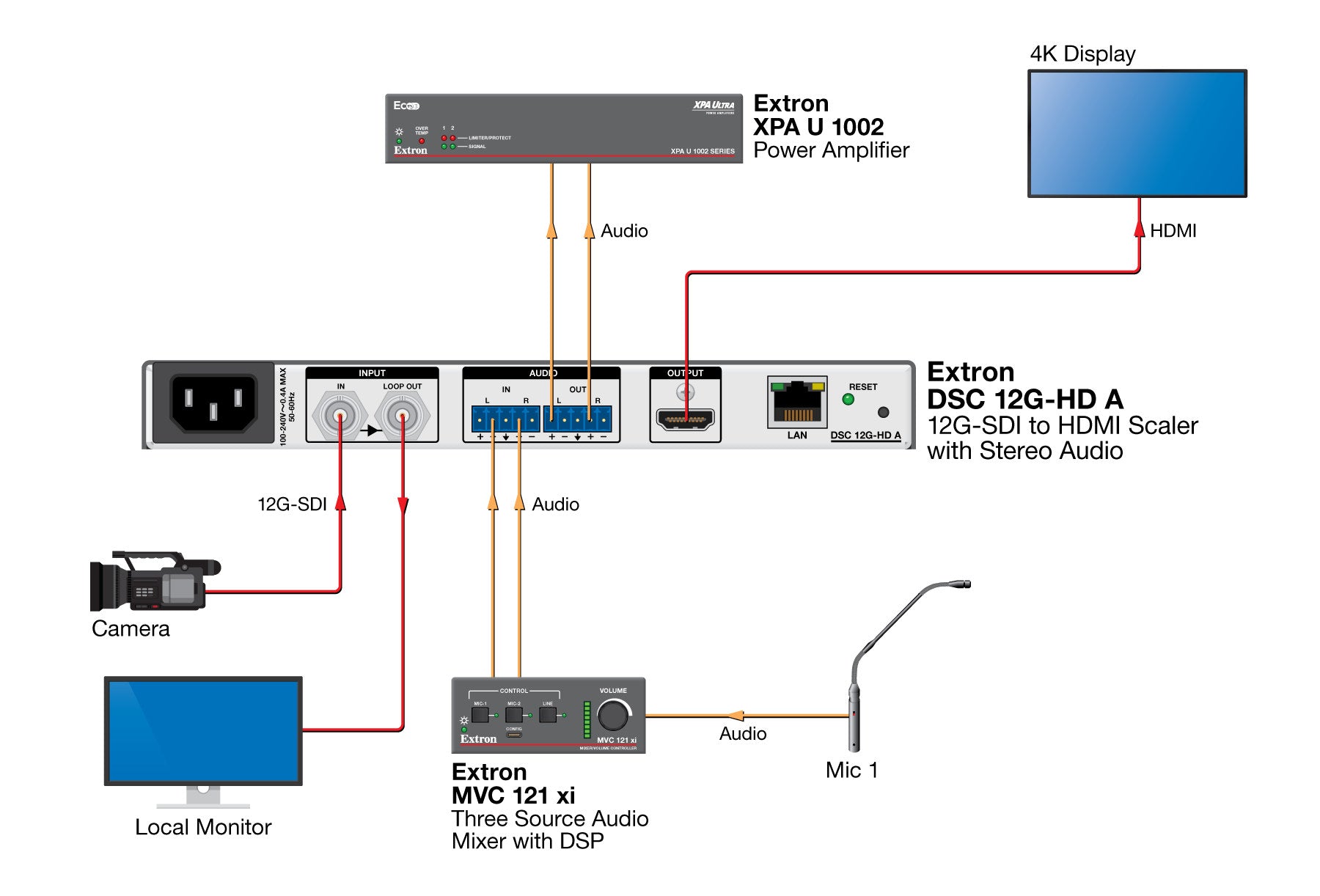

Diagram

Resources

Brochure | DSC 12G-HD A 60-2061-01 | DSC 12G-HD A

Specifications | DSC 12G-HD A 60-2061-01 | DSC 12G-HD A

Panel Drawing | DSC 12G-HD A 60-2061-01 | DSC 12G-HD A
