Extron DPM-HDF/6 4K PLUS (part number 26-714-06) — a 6 ft (1.8 m) active DisplayPort male to HDMI female adapter cable for signals up to 4K/60 at 4:4:4.

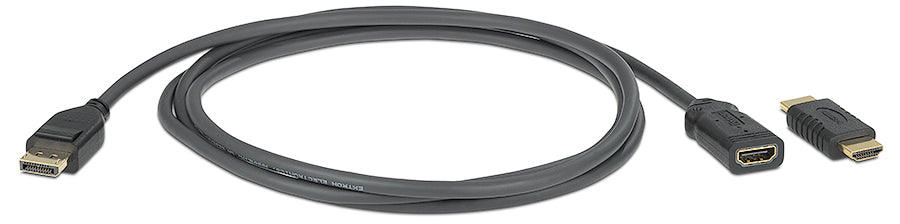

Six feet turns the adapter into a complete connection. Instead of a block on the source port plus a separate HDMI lead, this is one assembly: a latching DisplayPort plug at the computer, six feet of shielded 28 AWG cable, and a female HDMI type A receptacle at the far end that a room's existing HDMI cable plugs straight into. Active circuitry converts the packetized DisplayPort stream to TMDS at up to 18 Gbps with a 600 MHz pixel clock, and the whole thing runs on 507 mW taken from the source — no supply, no batteries, nothing to lose.

Key Capabilities

• 6 ft (1.8 m) length — reaches from a source to a table box or wallplate in one piece.
• Active DisplayPort to HDMI conversion at up to 4K/60 with 4:4:4 chroma.
• 18 Gbps maximum data rate; 600 MHz maximum pixel clock.
• Latching male DisplayPort input, female HDMI type A output, gold-plated contacts.
• Powered from the DisplayPort source at 507 mW; 30 V, 100 ohms ±10 ohms pair impedance.
• 28 AWG tinned copper conductors under a braided tinned copper shield and PVC jacket.
• 0.30 in (7.6 mm) outer diameter with a 3.0 in (76 mm) bend radius.

Where It Is Used

Guest-device connectivity and permanent source hookups alike: conference table boxes and floor boxes, lecterns and teaching stations, huddle rooms and touchdown desks, and equipment racks where a DisplayPort output has to land on an HDMI switcher input six feet away.

Specifications at a Glance

• Length: 6 ft (1.8 m); standards DisplayPort 1.2, HDMI 2.0b, HDCP 1.4 and 2.3
• Resolution range: up to 4K (4096 x 2160) and UHD (3840 x 2160) at 60 Hz 4:4:4
• Skew: intrapair ≤50 ps per 2 m; interpair ≤4 ns per 2 m
• Temperature rating maximum 80 °C; c-UL, UL CL2, CSA FT-1; 3-year warranty

Also referenced as Extron DPMHDF64KPLUS, DPM-HDF-6-4K-PLUS, part number 2671406.
