Extron DPM-HDF 4K PLUS (part number 26-712-01) — an active DisplayPort male to HDMI female adapter for signals up to 4K/60 at 4:4:4.

DisplayPort and HDMI are not the same signal wearing different plugs: DisplayPort is packetized, HDMI is TMDS. This adapter carries the active circuitry that performs that conversion, and it takes its power from the DisplayPort source rather than a separate supply. EDID, HDCP and audio all pass through, including 8-channel LPCM and HBR audio, so the source still negotiates properly with the display. Because the electronics are powered by the port, Extron specifies that it be plugged directly into the source output with no cables or adapters in between.

Key Capabilities

• Active conversion of packetized DisplayPort to TMDS for HDMI devices.
• Resolutions to 4K/60 at 4:4:4 with data rates to 18 Gbps and a 600 MHz pixel clock.
• EDID, HDCP and audio passed through, including 8-channel LPCM and HBR audio.
• Powered by the connected DisplayPort source — no external supply.

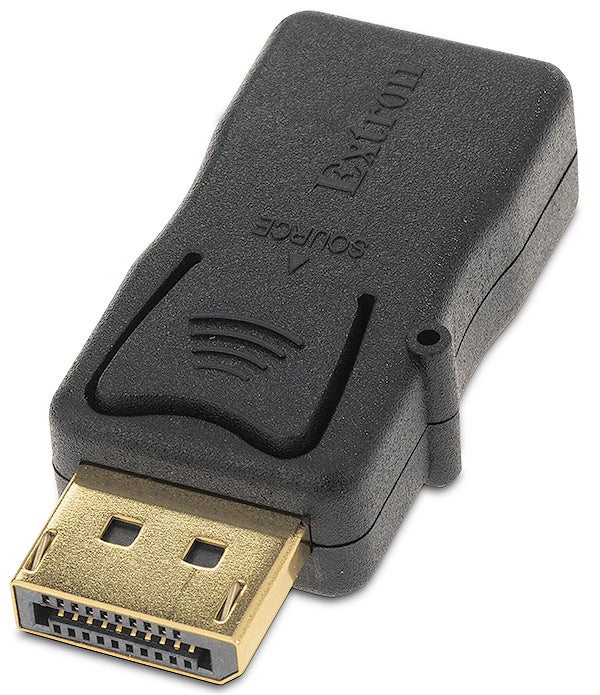

• Latching male DisplayPort input, female HDMI type A output, gold-plated contacts.
• Compatible with DisplayPort and Dual-Mode DisplayPort sources; complies with VESA Interoperability Guidelines.

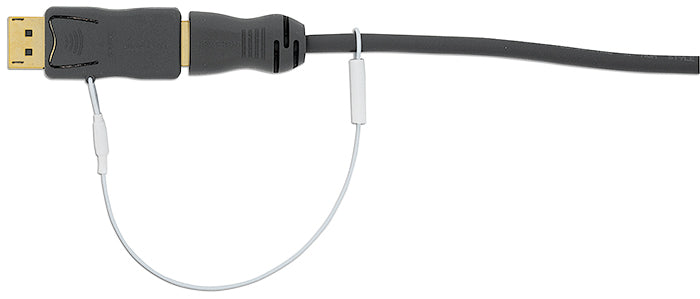

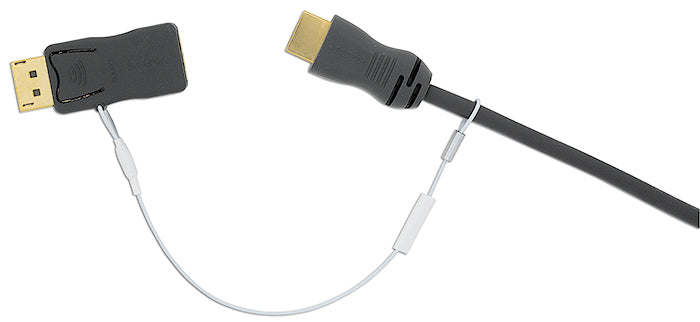

• Molded loop accepts the optional LockIt Cable Adapter Tether, part 101-021-10.

Where It Is Used

Anywhere a DisplayPort output has to land on HDMI infrastructure: laptops and workstations at a lectern or table box, media players feeding HDMI switchers, digital signage engines, and control-room or clinical positions where the display chain is entirely HDMI.

Specifications at a Glance

• Standards: DisplayPort 1.2, HDMI 2.0b, HDCP 1.4 and 2.3
• Resolution range: up to 4K (4096 x 2160) and UHD (3840 x 2160) at 60 Hz 4:4:4
• Temperature rating: -25 °C minimum, 75 °C maximum
• Compliance: c-UL, UL CL2, CSA FT-1; 3-year warranty

Note from Extron: this is a powered adapter and must be used directly at the DisplayPort source, not at a DisplayPort display. Do not insert additional cables or adapters between the source output and the adapter's male DisplayPort end.
