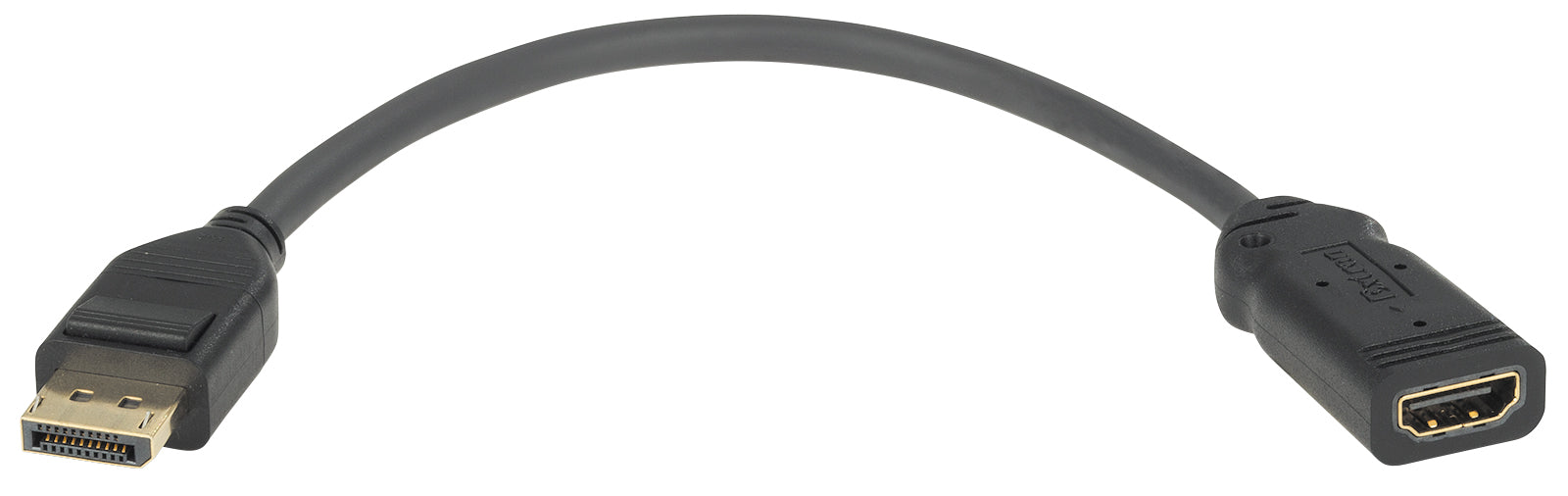

Extron DPM-HDF/0.5 4K PLUS (part number 26-713-01) — a 6 in (15 cm) active DisplayPort male to HDMI female adapter cable for signals up to 4K/60 at 4:4:4.

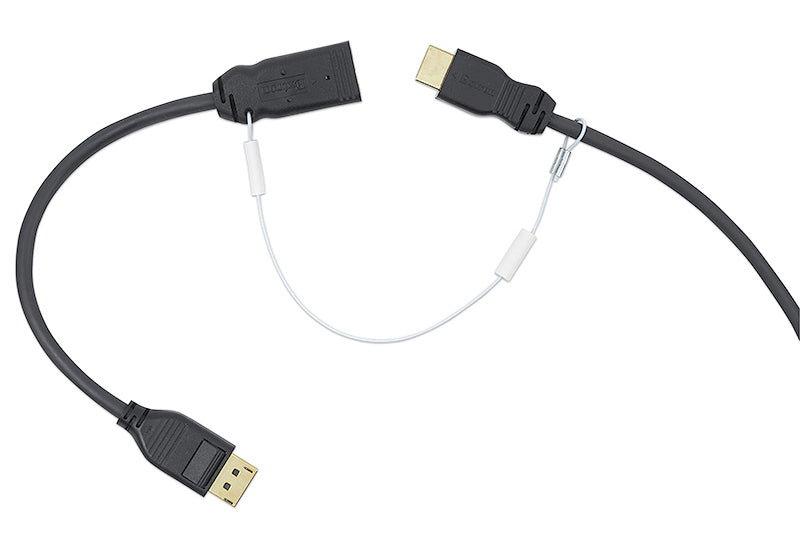

A rigid adapter hanging off a laptop port is a broken connector waiting to happen. This version puts six inches of 28 AWG cable between the DisplayPort plug and the HDMI receptacle, so the weight of the mating HDMI cable pulls on the pigtail instead of the source's port. The conversion is still active — packetized DisplayPort out, TMDS HDMI in — at up to 18 Gbps with a 600 MHz pixel clock, and it draws its 507 mW from the DisplayPort source. EDID, HDCP and audio pass straight through.

Key Capabilities

• 6 in (15 cm) pigtail relieves strain on the source's DisplayPort connector.
• Active DisplayPort to HDMI conversion at up to 4K/60 with 4:4:4 chroma.
• 18 Gbps maximum data rate; 600 MHz maximum pixel clock.
• Latching male DisplayPort input and female HDMI type A output, gold-plated contacts.
• Powered from the DisplayPort source at 507 mW; 30 V, 100 ohms ±10 ohms pair impedance.
• 28 AWG tinned copper conductors under a braided tinned copper shield and PVC jacket.
• 0.30 in (7.6 mm) outer diameter with a 3.0 in (76 mm) bend radius.

Where It Is Used

Laptop and BYOD connection points where the guest device supplies DisplayPort and the room expects HDMI: table boxes and furniture enclosures, lectern plates, huddle-room dongle sets, and rack positions where a short flexible tail is easier to dress than a rigid block adapter.

Specifications at a Glance

• Length: 6 in (15 cm); standards DisplayPort 1.2, HDMI 2.0b, HDCP 1.4 and 2.3
• Resolution range: up to 4K (4096 x 2160) and UHD (3840 x 2160) at 60 Hz 4:4:4
• Skew: intrapair ≤50 ps per 2 m; interpair ≤4 ns per 2 m
• Temperature rating maximum 80 °C; c-UL, UL CL2, CSA FT-1; 3-year warranty
