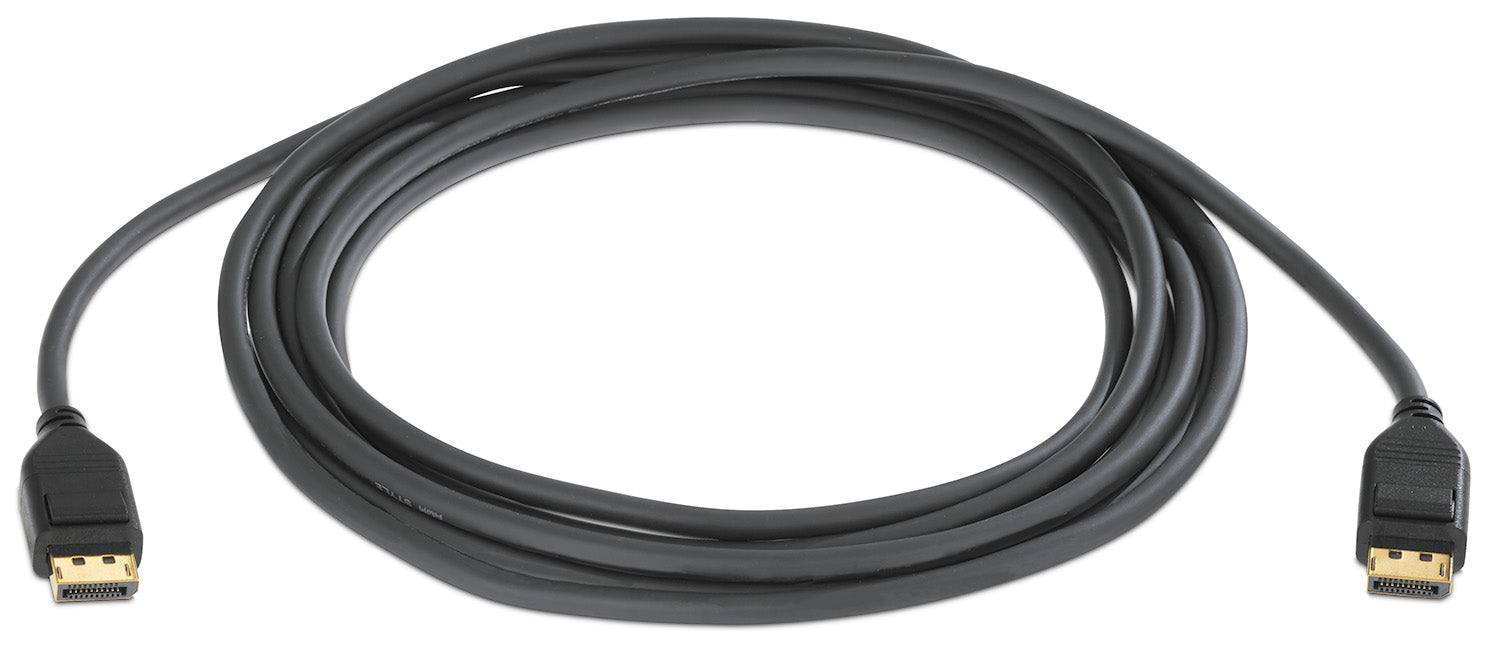

Extron DP Ultra Plus/9 (part number 26-753-09) — a 9 ft (2.7 m) ultra-flexible 8K DisplayPort cable with latching connectors at both ends.

Nine feet is the boundary Extron draws for full-rate 8K on this series: at this length and below the cable still runs HBR3 at 8.1 Gbps per lane for 32.4 Gbps total and carries 7680 x 4320 at 60 Hz. Beyond it, the 12 ft version steps down to HBR2. So if a design needs the maximum reach without giving up 8K, this is the part number. The construction is Extron's exclusive 28 AWG cable, 0.24 in across with a 0.87 in bend radius, terminated in latching DisplayPort connectors with gold-plated contacts so a knock behind the display does not drop the link.

Key Capabilities

• Longest 8K-capable length in the DP Ultra Plus Series at 9 ft (2.7 m).
• HBR3 at 8.1 Gbps per lane, 32.4 Gbps total; resolutions to 7680 x 4320 at 60 Hz.
• Conforms to DisplayPort 1.4 with HDCP 2.3; EDID and HDCP pass-through.
• Multi-Stream Transport (MST) and Display Stream Compression (DSC 1.2) support.
• Latching male DisplayPort connectors with gold-plated contacts.
• 0.24 in (6.2 mm) outer diameter with a 0.87 in (22 mm) bend radius.
• Certified for use with Extron AVEdge, Cable Cubby and HSA Hideaway Surface Access enclosures.

Where It Is Used

Runs from a floor box or credenza up to a wall-mounted display, lectern to ceiling-mounted projector at close range, and rack-to-monitor links in control rooms, imaging suites, simulation labs and post-production bays where the full 8K rate has to survive the whole distance.

Specifications at a Glance

• Length: 9 ft (2.7 m)
• Video: up to 7680 x 4320 at 60 Hz; 32.4 Gbps maximum data rate
• Construction: 28 AWG tinned copper conductors, PVC jacket, latching DisplayPort ends
• Compliance: CE, RoHS, UL-CMX, WEEE; limited lifetime performance warranty

Also referenced as Extron DPUltraPlus9, DP-Ultra-Plus-9, part number 2675309.
