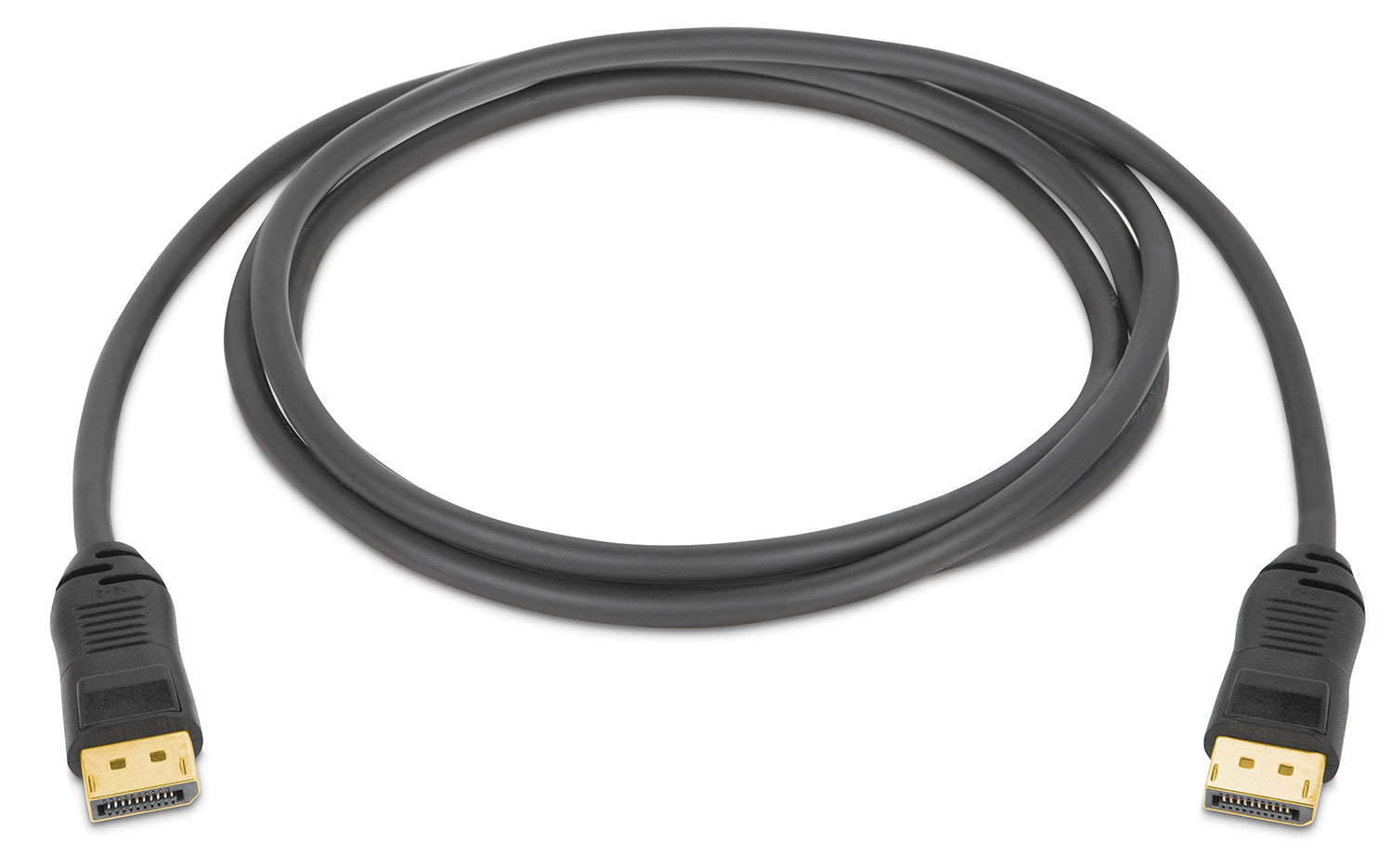

Extron DP Ultra Plus/6 (part number 26-753-06) — a 6 ft (1.8 m) ultra-flexible 8K DisplayPort cable with latching connectors at both ends.

Six feet is the length most desks and racks actually need, and it sits comfortably inside the 9 ft ceiling where Extron rates this series for full 8K. HBR3 signalling gives 8.1 Gbps per lane and 32.4 Gbps in total, enough for 7680 x 4320 at 60 Hz, and the cable conforms to DisplayPort 1.4 with HDCP 2.3. What sets it apart mechanically is Extron's own 28 AWG conductor: the finished jacket is 0.24 in across and turns a 0.87 in corner, so it dresses into a furniture enclosure or a crowded rack without a service loop the size of a dinner plate.

Key Capabilities

• Resolutions to 8K (7680 x 4320) at 60 Hz; HBR3 at 8.1 Gbps per lane, 32.4 Gbps total.
• Conforms to DisplayPort 1.4 with HDCP 2.3; EDID and HDCP pass-through.
• Multi-Stream Transport (MST) for driving several displays from one output.
• Display Stream Compression (DSC 1.2) support.
• Latching male DisplayPort connectors with gold-plated contacts.
• 0.24 in (6.2 mm) outer diameter with a 0.87 in (22 mm) bend radius.
• Certified for use with Extron AVEdge, Cable Cubby and HSA Hideaway Surface Access enclosures.

Where It Is Used

Desk-to-display and rack-to-panel connections in conference rooms, huddle spaces, trading and dispatch positions, radiology reading stations, edit bays and classroom lecterns — anywhere a table box or furniture enclosure has to swallow the cable without kinking it.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Video: up to 7680 x 4320 at 60 Hz; 32.4 Gbps maximum data rate
• Construction: 28 AWG tinned copper conductors, PVC jacket, latching DisplayPort ends
• Compliance: CE, RoHS, UL-CMX, WEEE; limited lifetime performance warranty

Also referenced as Extron DPUltraPlus6, DP-Ultra-Plus-6, part number 2675306.
