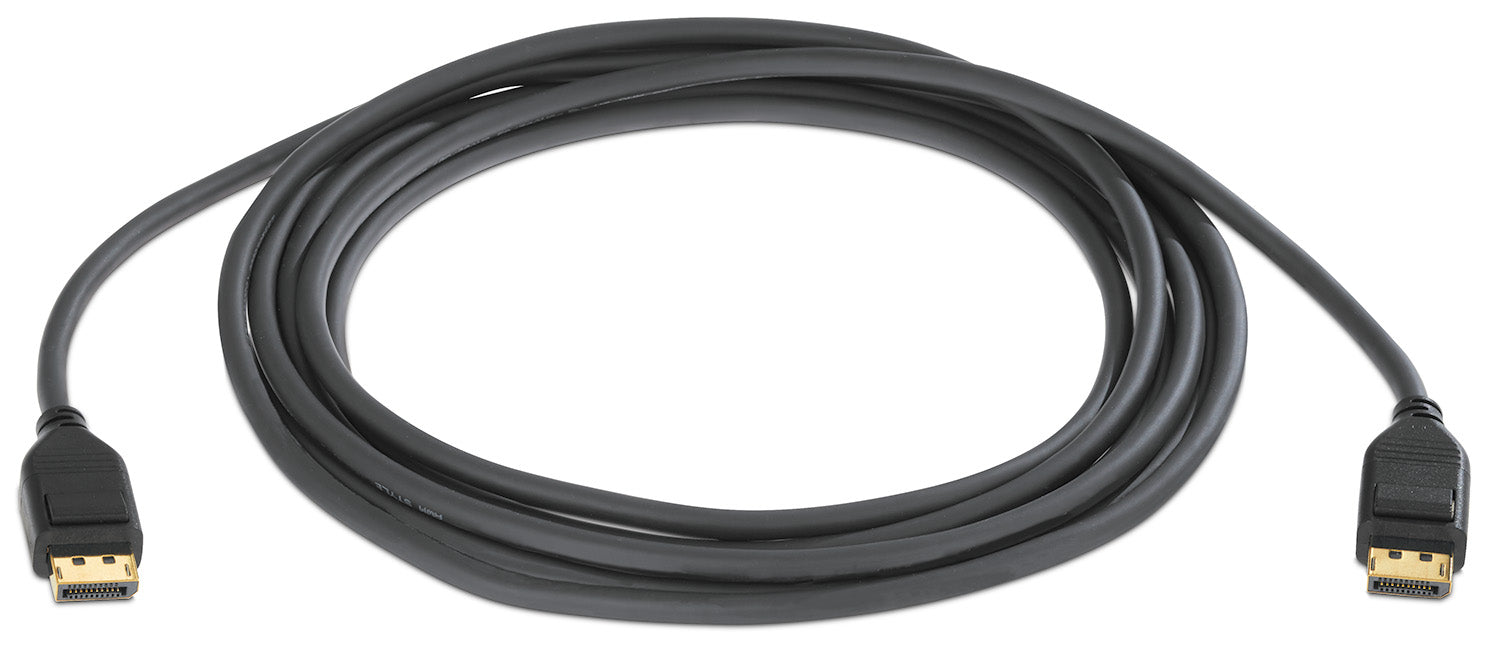

Extron DP Ultra Plus/3 (part number 26-753-03) — a 3 ft (90 cm) ultra-flexible 8K DisplayPort cable with latching connectors at both ends.

Three feet is a rack jumper or a monitor tail, and at that length the only thing that matters is that the cable does not become the weak link in an 8K chain. Extron builds the DP Ultra Plus on its own 28 AWG conductor stock, which is what allows a 0.24 in jacket to bend to a 0.87 in radius without stressing the pairs — useful behind a wall-mounted display or inside a Cable Cubby where a stiff cable would fight the enclosure. Electrically it runs HBR3 at 8.1 Gbps per lane for 32.4 Gbps total, conforms to DisplayPort 1.4, and passes EDID, HDCP 2.3, MST and DSC 1.2.

Key Capabilities

• Resolutions to 8K (7680 x 4320) at 60 Hz; HBR3 at 8.1 Gbps per lane, 32.4 Gbps total.
• Conforms to DisplayPort 1.4 with HDCP 2.3; EDID and HDCP pass-through.
• Multi-Stream Transport (MST) drives multiple monitors from one DisplayPort output.
• Display Stream Compression (DSC 1.2) support for compressed and uncompressed signals.
• Latching male DisplayPort connectors with gold-plated contacts.
• Extron-exclusive 28 AWG cable: 0.24 in (6.2 mm) OD, 0.87 in (22 mm) bend radius.
• Certified for use with Extron AVEdge, Cable Cubby and HSA Hideaway Surface Access enclosures.

Where It Is Used

Short, tightly dressed connections: computer to monitor at a workstation, player to display behind a video wall tile, rack device to patch panel, and table-box or furniture enclosures in conference rooms, trading floors, imaging reading rooms and broadcast edit suites.

Specifications at a Glance

• Length: 3 ft (90 cm)
• Video: up to 7680 x 4320 at 60 Hz; 32.4 Gbps maximum data rate
• Construction: 28 AWG tinned copper conductors, PVC jacket, latching DisplayPort ends
• Compliance: CE, RoHS, UL-CMX, WEEE; limited lifetime performance warranty

Also referenced as Extron DPUltraPlus3, DP-Ultra-Plus-3, part number 2675303.
