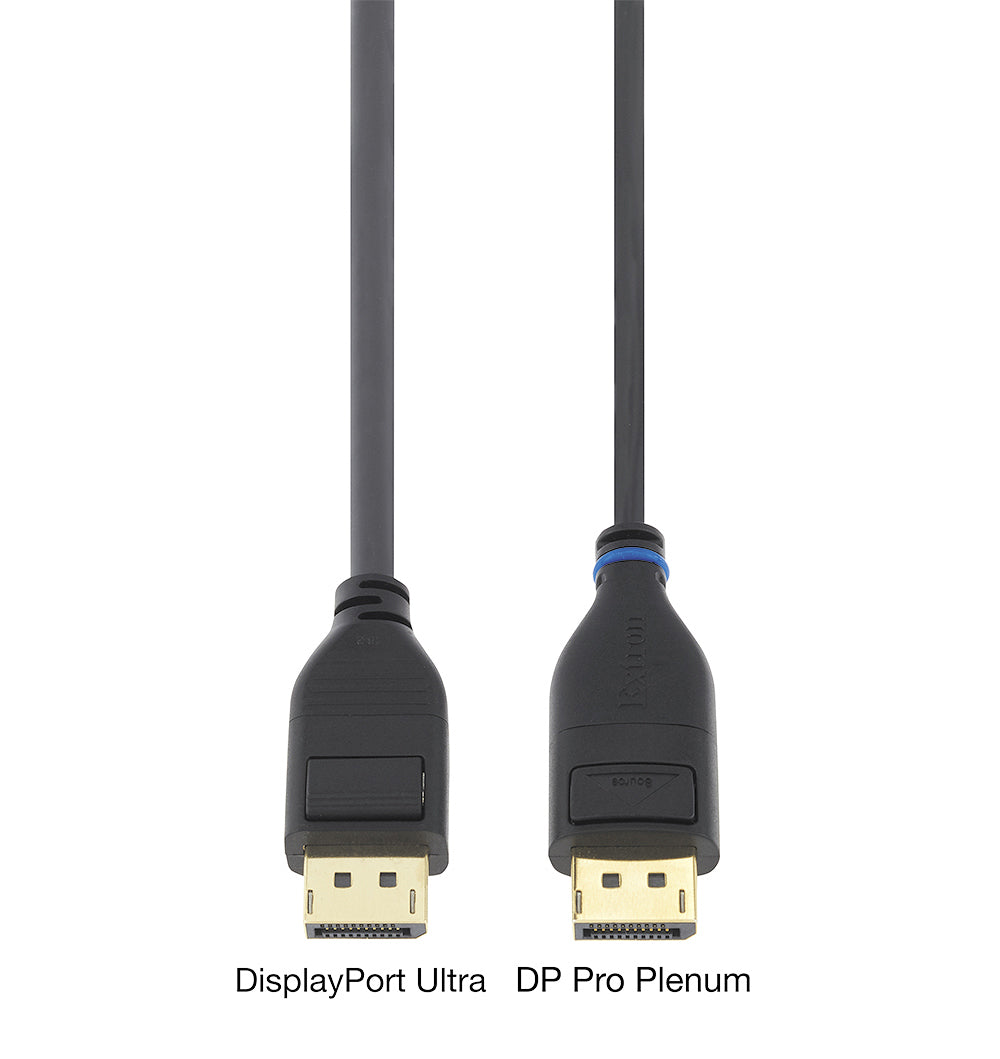

Extron DP Pro P/75 (part number 26-727-75) — a 75 ft (22.8 m) active hybrid optical-copper DisplayPort cable from the DP Pro Plenum Series, NEC CMP rated.

Seventy-five feet of uncompressed DisplayPort is fibre territory, and that is what is inside this jacket: multimode optical fibres for the four high-speed lanes, 24 AWG tinned copper for the auxiliary and hot-plug lines. Nothing is compressed, nothing is scaled — the link simply carries DisplayPort 1.4 at up to 32.4 Gbps with HDCP 2.3, HDR, EDID, CEC and 32 audio channels. The active connectors are unidirectional, drawing 375 mW at 3.3 V from the equipment rather than from a wall wart, and the CMP jacket lets the run pass through return-air space without conduit.

Key Capabilities

• DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
• Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
• 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
• Frame rates from 24 Hz to 240 Hz within the data rate ceiling.
• 0.18 in (4.6 mm) outer diameter, 0.79 in (20 mm) bend radius — pulls like a control cable.
• NEC CMP plenum rated; CE and UL-CMP compliant.

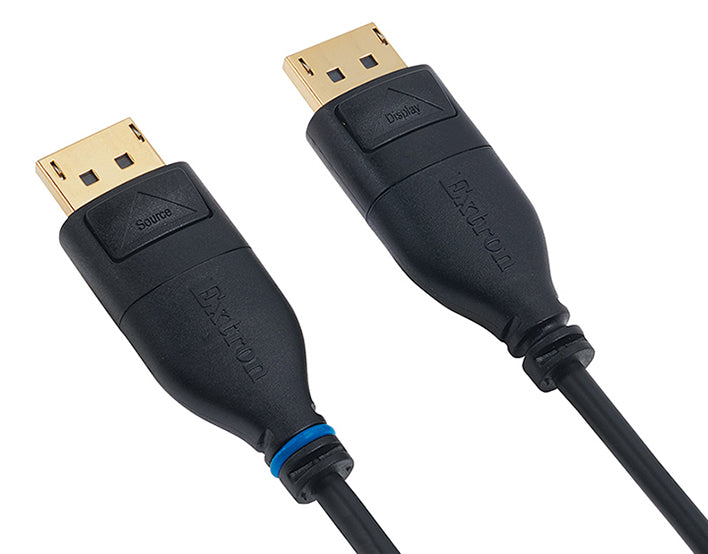

• No power supply required; the cable is self-powered and directional.

Where It Is Used

Long uncompressed video runs across a floor or between rooms: hospital operating theatres fed from a remote equipment room, utility and transport control centres, large-format simulation domes, lecture theatre projectors, and digital signage where the player rack sits well back of the display.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
• Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
• Mechanical: 500 N tensile strength, 200 N compression load resistance; 3-year Extron warranty

Also referenced as Extron DPProP75, DP-Pro-P-75, part number 2672775.
