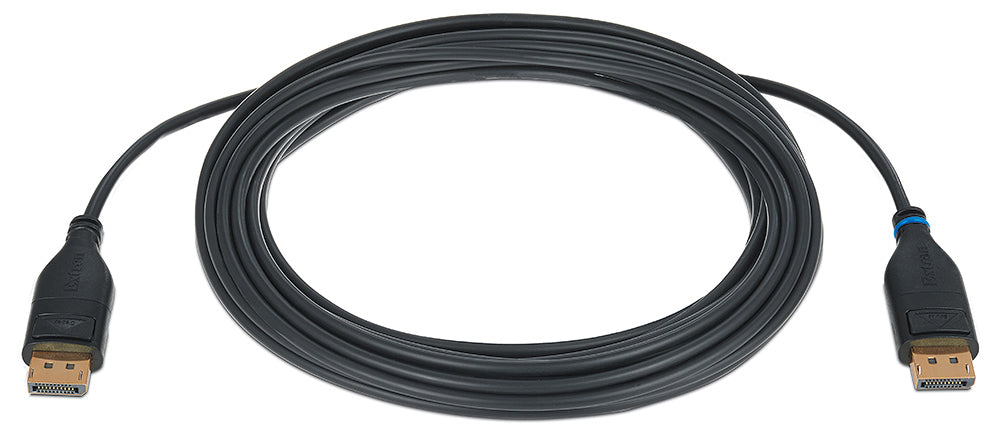

Extron DP Pro P/25 (part number 26-727-25) — a 25 ft (7.6 m) active hybrid optical-copper DisplayPort cable from the DP Pro Plenum Series, NEC CMP rated.

Passive copper DisplayPort gives out long before 25 feet at 8K data rates. The DP Pro Plenum answer is a hybrid build: multimode optical fibers carry the high-speed lanes while 24 AWG tinned copper handles the low-speed and auxiliary channels, all inside a 0.18 in PVC jacket that bends to a 0.79 in radius. That combination moves up to 32.4 Gbps — 8.1 Gbps per lane — with DisplayPort 1.4, HDCP 2.3 and HDR intact, and it is CMP rated so the run can cross an air-handling ceiling without conduit. The cable is unidirectional and needs no power supply; it draws 375 mW at 3.3 V from the devices it connects.

Key Capabilities

• DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
• Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
• 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
• 4K (3840 x 2160) at up to 120 Hz with 4:4:4 chroma.
• 0.18 in (4.6 mm) outer diameter with a 0.79 in (20 mm) bend radius for tight pathways.
• NEC CMP plenum rated; CE and UL-CMP compliant.

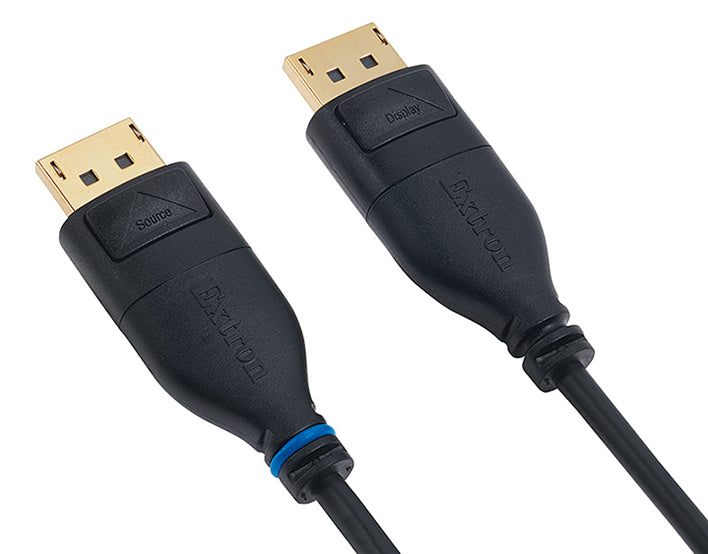

• Unidirectional — a blue ring marks the source connector and both ends are molded with direction text.

Where It Is Used

Mid-length 8K and high-frame-rate 4K links where a passive cable will not hold up: control-room video walls, medical imaging and surgical displays, simulation and visualization suites, broadcast master control, and boardroom or auditorium projectors fed from a rack across the room.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
• Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
• Power: 375 mW at 3.3 V drawn from the connected devices; 3-year Extron warranty

Also referenced as Extron DPProP25, DP-Pro-P-25, part number 2672725.
