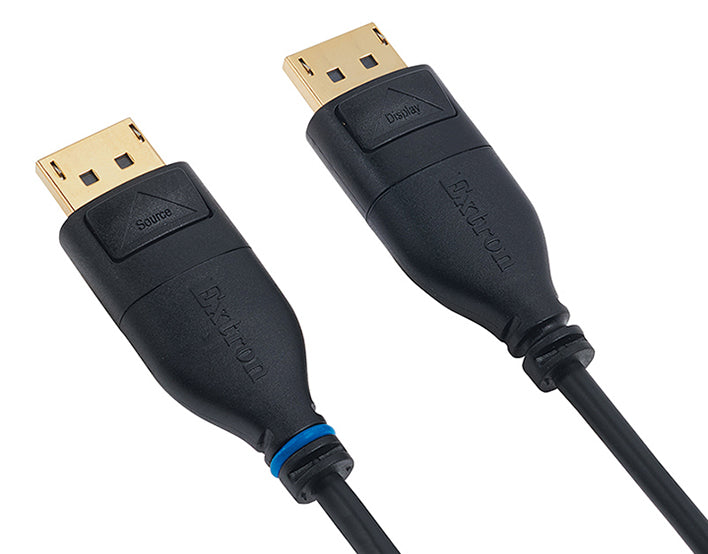

Extron DP Pro P/150 (part number 26-727-150) — a 150 ft (45.7 m) active hybrid optical-copper DisplayPort cable, the longest length Extron offers in the DP Pro Plenum Series.

One hundred and fifty feet is the far end of what Extron builds in this family, and it is a genuinely useful number: it covers most single-storey buildings end to end without a transmitter, a receiver, a rack unit or a second power outlet. Inside the 0.18 in jacket, multimode optical fibres carry the four DisplayPort lanes while 24 AWG tinned copper handles the auxiliary channel, so EDID, HDCP 2.3, CEC and 32 audio channels all survive the trip alongside up to 32.4 Gbps of video. The jacket is NEC CMP rated, and the active connectors draw 375 mW at 3.3 V from the equipment.

Key Capabilities

• Longest DP Pro Plenum length at 150 ft (45.7 m).
• DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
• Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
• 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
• 0.18 in (4.6 mm) outer diameter with a 0.79 in (20 mm) bend radius.
• NEC CMP plenum rated; CE and UL-CMP compliant.
• 500 N tensile strength and 200 N compression resistance for demanding pulls.

Where It Is Used

The longest uncompressed DisplayPort links an integrator can order factory-made: arena and convention-centre screens, airport and rail signage, cathedral and megachurch projection, campus visualization theatres, and command centres where the processing rack is deliberately kept far from the operating floor.

Specifications at a Glance

• Length: 150 ft (45.7 m)
• Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
• Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
• Power: 375 mW at 3.3 V drawn from the connected devices; 3-year Extron warranty

Also referenced as Extron DPProP150, DP-Pro-P-150, part number 26727150.
