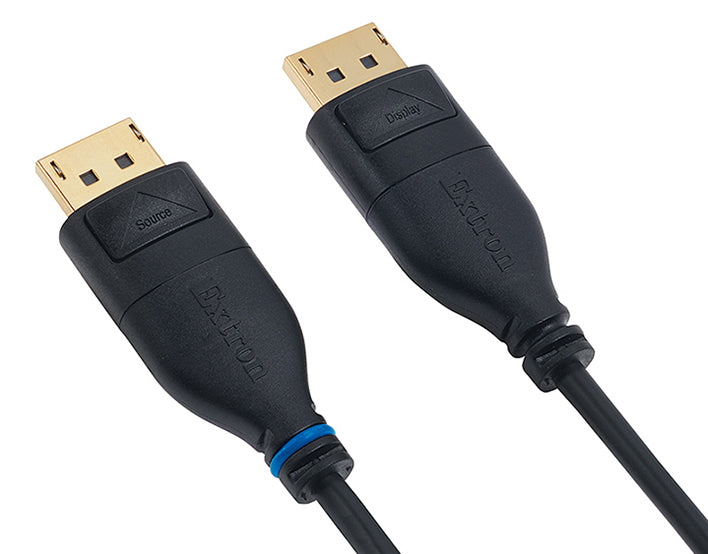

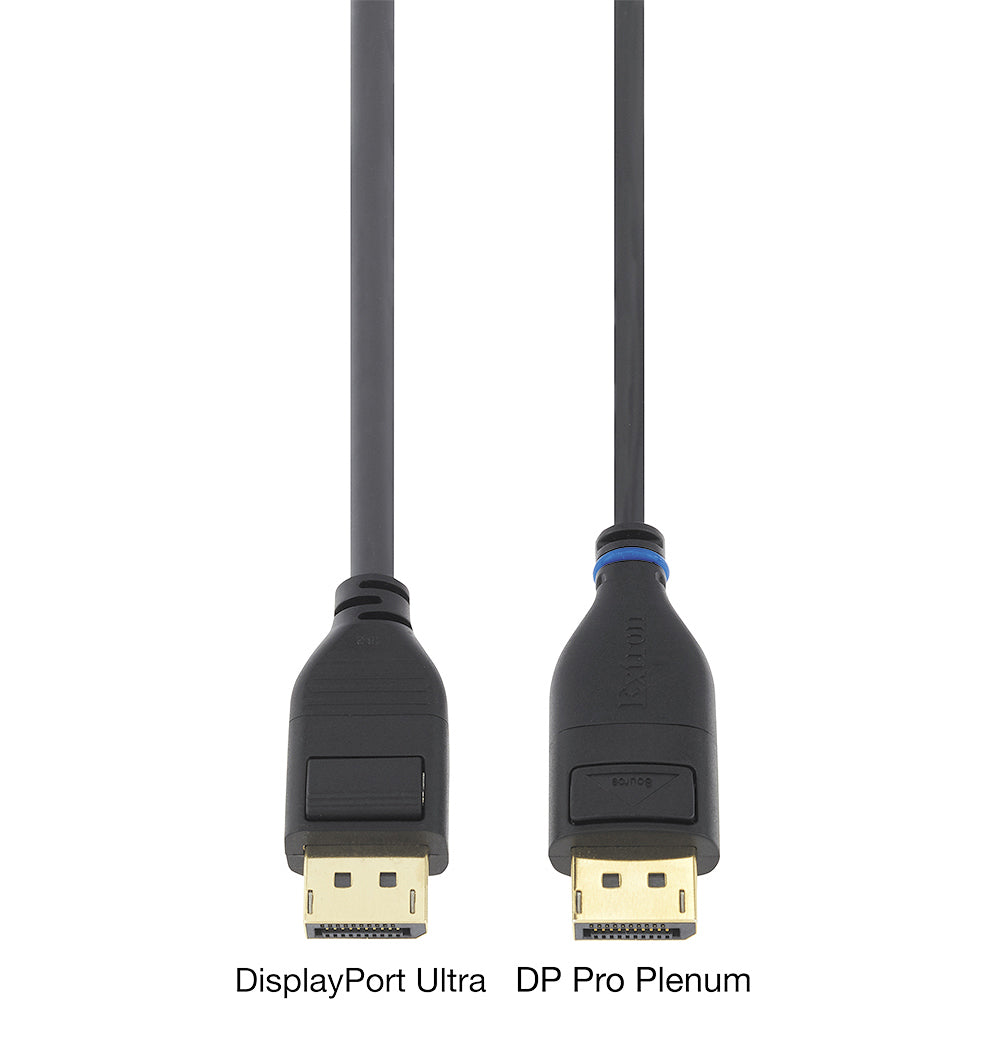

Extron DP Pro P/100 (part number 26-727-100) — a 100 ft (30.4 m) active hybrid optical-copper DisplayPort cable from the DP Pro Plenum Series, NEC CMP rated.

One hundred feet of uncompressed DisplayPort 1.4 in a single factory-terminated assembly removes an entire layer of system design: no transmitter, no receiver, no extra rack space, no second point of failure. Multimode optical fibres carry the four high-speed lanes while 24 AWG tinned copper handles the auxiliary channel and hot plug detect, so the sink still sees EDID, HDCP 2.3 and CEC exactly as it would on a two-metre cable. Peak throughput is 32.4 Gbps. The jacket is 0.18 in across, CMP rated, and the connectors take their 375 mW straight from the connected equipment.

Key Capabilities

• DisplayPort 1.4 with HDCP 1.4, HDCP 2.3 and HDR; EDID, CEC and 32 audio channels carried.
• Maximum video data rate of 32.4 Gbps, 8.1 Gbps per lane.
• 8K (7680 x 4320) at 30 Hz with 4:4:4 chroma, or at 60 Hz with 4:2:0, 8 bits per color.
• 4K (3840 x 2160) at up to 120 Hz with 4:4:4 chroma.
• 0.18 in (4.6 mm) outer diameter, 0.79 in (20 mm) bend radius, 500 N tensile strength.
• NEC CMP plenum rated; CE and UL-CMP compliant.
• Replaces a transmitter and receiver pair on runs of this length.

Where It Is Used

Building-scale uncompressed video: auditorium and lecture theatre projection, arena and stadium control positions, hospital theatre and imaging suites fed from a central equipment room, command centres, and permanent exhibits where a display sits far from any rack.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• Signal: DisplayPort 1.4, HDCP 1.4/2.3, HDR; 32.4 Gbps maximum
• Construction: multimode fibers plus 24 AWG tinned copper, PVC jacket, male DisplayPort ends
• Power: 375 mW at 3.3 V drawn from the connected devices; 3-year Extron warranty

Also referenced as Extron DPProP100, DP-Pro-P-100, part number 26727100.
