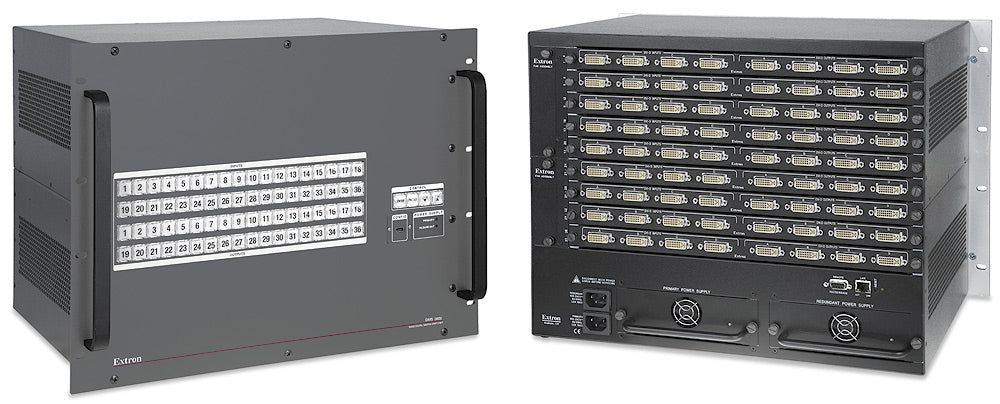

Extron DMS 3600 Frame (part number 60-1092-01) — the 9-slot, 8U chassis that scales a modular DMS matrix up to 36x36.

This is the largest frame in the DMS DVI matrix family, built for installations that need far more inputs and outputs than a compact frame can hold. Populate it with any mix of DMS DVI or fiber I/O boards to grow from 4x4 up to 36x36 in steps of four, at up to 4.95 Gbps per single-link DVI path with automatic EDID/DDC buffering. Dual internal power supplies come standard, so the frame keeps routing if one supply fails — a meaningful difference from the smaller DMS 1600 frame, where redundancy is optional.

Key Capabilities

Scales from 4x4 to 36x36 in steps of 4x4
4.95 Gbps single-link DVI signal path with active EDID/DDC buffering
Standard dual redundant power supplies
Ethernet, RS-232/RS-422, and USB control in one chassis
Accepts any mix of DVI and multimode fiber I/O boards

Where It Is Used

Large control rooms, broadcast facilities, and command centers that need the widest DMS matrix size with built-in power redundancy for uptime-critical routing.

Specifications at a Glance

Routing: 4x4 to 36x36, expandable in 4x4 increments
Enclosure: 14.0 in H x 17.0 in W x 12.25 in D, 8U, metal
Power: 212 W fully loaded with (9) 4x4 boards, dual redundant supplies standard
Weight: 38.5 lbs with boards installed
Warranty: 3 years parts and labor

Also referenced as Extron DMS3600Frame, DMS-3600-Frame, part number 60109201.

Specifications

Part Number: 60-1092-01

Manufacturer: Extron

Model: DMS 3600 Frame

Condition: New

Routing: 4x4 to 36x36 matrix, expandable in increments of 4 inputs and 4 outputs

Gain: Unity

Resolution Range: Up to 1080p (HDTV) or 1920x1200 (highest single-link DVI resolution) @ 48, 50, or 60 Hz

Signal Type: Single-link DVI digital video

Digital Video: RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered. Not compatible with HDMI directly (adapter required); not HDCP compliant.

Digital Audio: Embedded audio from HDMI sources can be passed if not HDCP encrypted

Consumer Electronics Control (CEC): Not supported

EDID and DDC: Supports EDID and DDC over DVI and HDMI standards, actively buffered

HDCP: Not supported

HPD: Supports hot plug detection of the display as a pass-through signal

Maximum Data Rate: 4.95 Gbps (1.65 Gbps per color)

Maximum Pixel Clock: 165 MHz

Standards: DVI 1.0

Switching Speed: 200 ns, max

Video Input (DMS 44/4i DVI Boards): 4 digital RGB single-link DVI-D per input board, 4 female DVI-I connectors, automatic equalization, 100 ft (30 m) cable length at 1920x1200 @ 48/50/60 Hz or 1080p, 8-bit color

Video Output (DMS 44/4o DVI Boards): 4 digital RGB single-link DVI-D per output board, 4 female DVI-I connectors, automatic re-clocking, 50 ft (15.24 m) cable length, 250 mA peripheral device power per output

Fiber Optic Boards: 4 multimode Tx/Rx per I/O board, 4 or 8 LC connectors, 300 m (985 ft) operating distance, 850 nm nominal wavelength, -5 dBm typical transmission power, -12 dBm typical maximum receiver sensitivity, 8 dB maximum optical loss budget, 6.25 Gbps maximum channel data rate. Requires DFX 100 Tx/Rx.

Serial Host Control Port: 1 bidirectional RS-232 or RS-422, rear panel 9-pin female D connector (RS-232: 2=Tx, 3=Rx, 5=Gnd; RS-422: 2=Tx-, 3=Rx-, 5=Gnd, 7=Rx+, 8=Tx+)

Baud Rate and Protocol: 9600 (default), 19200, 38400, 115200 baud, adjustable; 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel female mini USB B, USB 2.0 low speed

Ethernet Control Port: 1 RJ-45 female, 10/100Base-T half/full duplex with autodetect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Ethernet Default Settings: IP address 192.168.254.254, subnet mask 255.255.0.0, gateway 0.0.0.0, DHCP off

Web Server: Up to 200 simultaneous sessions, 7.0 MB nonvolatile user memory

Program Control: Extron control/configuration program for Windows, Extron SIS, web browser, Telnet

Power Supply: Internal, 2 (positive-negative); redundant supply standard. Input: 100-240 VAC, 50-60 Hz

Power Consumption: 212 watts, measured fully loaded with (9) 4x4 I/O boards

Power Consumption per Board: 4x4 I/O: 18 W; 4 input: 10 W; 4 output: 7 W

Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, right to left (as viewed from front panel)

Rack Mount: Yes

Enclosure Type: Metal

Thermal Dissipation, Full Load: 724 BTU/hr, measured fully loaded with (9) 4x4 I/O boards

Enclosure Dimensions: 14.0" H x 17.0" W x 12.25" D (8U high, full rack wide) (35.6 cm H x 43.2 cm W x 31.1 cm D). Depth excludes connectors and handles; width excludes rack ears.

Product Weight: 38.5 lbs (17.5 kg) with boards installed

Shipping Weight: 48 lbs (22 kg)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, KC, VCCI

Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor
