Extron DMP 64 Plus C V AT 6x4 ProDSP Processor with AEC, VoIP and Dante
- • AEC, SIP VoIP and Dante in one half-rack 6x4 processor
- • Dante/AES-67 networking: 32 channels Rx and 16 channels Tx
- • Up to 8 concurrent SIP 2.0 extensions per RFC 3261
- • Six independent channels of Extron acoustic echo cancellation
- • Runs on PoE+ (IEEE 802.3at) or a 12 VDC external supply
- • 6 mic/line inputs with +48 VDC phantom power, 4 line outputs
- • Configurable USB audio interface: 0x8, 2x6, 4x4, 6x2 or 8x0
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

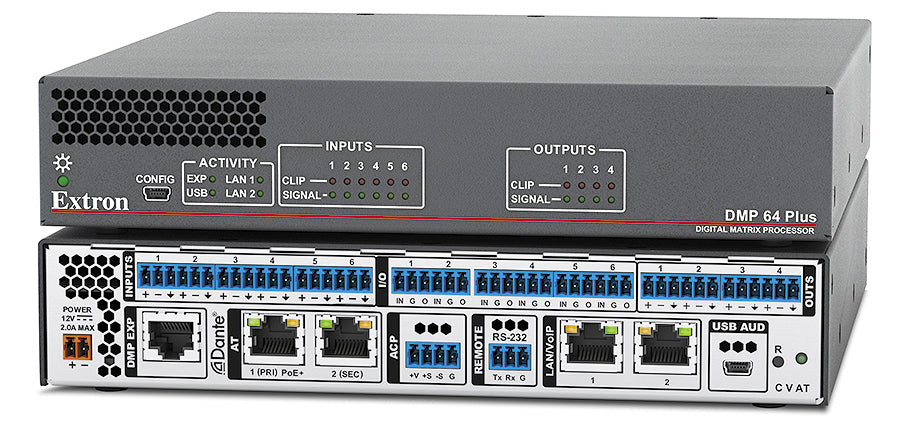

Extron DMP 64 Plus C V AT (part number 60-1824-10) — the top of the DMP 64 Plus line: six AEC channels, SIP telephony and Dante audio networking in a half-rack chassis.
Extron built this model for the modern collaboration room, where a Dante microphone array, a soft codec on a room PC and the building phone system all have to land in the same mix. A two-port gigabit switch pulls in 32 Dante channels and sends out 16; a SIP endpoint adds up to eight telephone extensions; a configurable USB interface handles the soft codec. All six main DSP channels are FlexInputs, so any of those sources can be given the full processing chain including echo cancellation. PoE+ powers the whole thing over the same cable that carries the audio.
Key Capabilities
- Dante/AES-67 transport: 32 channels Rx, 16 channels Tx, with Dante Domain Manager support.
- Up to eight concurrent SIP 2.0 extensions per RFC 3261, wideband codecs included.
- Six independent AEC channels, tail length above 200 msec, convergence up to 60 dB per second.
- Powered from PoE+ (IEEE 802.3at) or a 12 VDC supply.
- Six mono (or three stereo) mic/line inputs with switchable +48 VDC phantom power, plus four line outputs.
- Configurable USB audio interface (0x8, 2x6, 4x4, 6x2 or 8x0) and an EXP port to a DTP CrossPoint or another DMP.
Where It Is Used
Zoom and Teams collaboration spaces with Dante table microphone arrays, hybrid meeting rooms that still take phone callers, telehealth suites, classrooms and executive offices. The half-rack metal chassis fits an optional 1U shelf, an under-table mount, or sits beside another half-rack unit.
Specifications at a Glance
- Matrix: 6 mic/line inputs by 4 line outputs, 24-bit/48 kHz conversion
- Dante/AES-67: 32 channels Rx, 16 channels Tx; VoIP: up to 8 SIP extensions
- AEC: 6 channels, tail length greater than 200 msec
- Power on PoE+ PSE: 21.7 W device; with PS 1220 supply 18.6 W device
- Enclosure 1.7 in H x 8.7 in W x 9.5 in D, 2.35 lbs
Also referenced as Extron DMP64PlusCVAT, DMP-64-Plus-C-V-AT, part number 60182410.
