Extron DMP 128 Plus C 12x8 ProDSP Processor with AEC
- • Twelve independent channels of Extron acoustic echo cancellation
- • AEC tail length over 200 msec, convergence up to 60 dB/sec
- • Software-selectable noise cancellation of up to 20 dB
- • 12 mono mic/line inputs and 8 line outputs in a 1U full-rack chassis
- • 4x4 USB digital audio interface for room PC and soft codec audio
- • EXP port adds 16 channels Rx and 16 channels Tx over shielded CAT6
- • Switchable +48 VDC phantom power on inputs 1 through 8
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

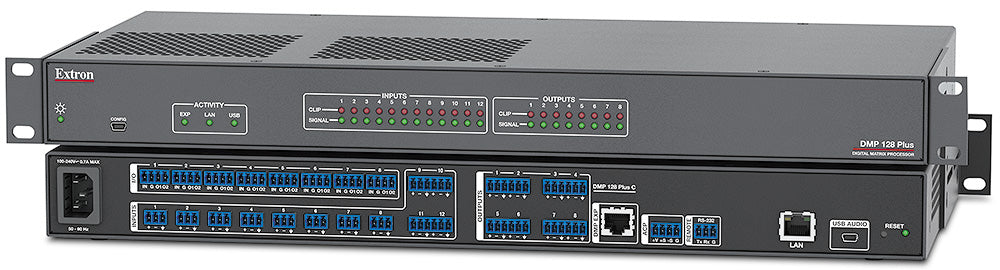

Extron DMP 128 Plus C (part number 60-1512-01) — a 12x8 ProDSP digital audio matrix processor with twelve independent channels of acoustic echo cancellation.
The C in this model number stands for echo cancellation, and it is the reason integrators specify it for conferencing rooms. Each of the twelve AEC processors takes its own reference signal, chosen from any input, output or virtual return bus, so a room running several codecs or a mix of local and far-end sources stays intelligible. Extron's algorithms converge quickly during double talk and with wireless microphones, and selectable noise cancellation cleans up HVAC rumble before it reaches the far end.
Key Capabilities
- Twelve independent AEC channels with a tail length longer than 200 msec and convergence up to 60 dB per second.
- Noise cancellation of up to 20 dB, selectable in software per channel.
- Twelve mono mic/line inputs with +48 VDC phantom power switchable on inputs 1-8.
- Eight mono (or four stereo) balanced/unbalanced line outputs plus a 4x4 USB digital audio interface.
- EXP port carries 16 channels in and 16 channels out over shielded CAT6 to a second Extron unit.
- RS-232, Ethernet, front-panel USB, eight digital I/O ports and support for up to eight ACP control panels.
Where It Is Used
Echo cancellation makes this the DMP 128 Plus for videoconference boardrooms, telemedicine and reading rooms, distance-learning classrooms, courtrooms taking remote testimony, and any huddle space where ceiling microphones and loudspeakers share the same acoustic volume. It mounts in 1U of rack space or under a table with the optional kit.
Specifications at a Glance
- Matrix: 12 mic/line inputs by 8 line outputs, 24-bit/48 kHz conversion
- AEC: 12 channels, tail length greater than 200 msec
- Frequency response 20 Hz to 20 kHz, ±0.2 dB; crosstalk better than -90 dB
- Power consumption 29.0 W, thermal dissipation 66.4 BTU/hr
- Enclosure 1.69 in H x 17.40 in W x 9.48 in D, 4.5 lbs (2.1 kg)
Also referenced as Extron DMP128PlusC, DMP-128-Plus-C, part number 60151201.
