Extron DMP 128 Plus AT 12x8 ProDSP Processor with Dante
- • Dante/AES-67 networking on a 4-port 1 Gbps switch, software selectable
- • 48 Dante channels received and 24 transmitted, 24-bit/48 kHz uncompressed
- • Selectable Dante latency: 0.25, 0.5, 1.0, 2.0 or 5.0 ms
- • 12 mono mic/line inputs and 8 line outputs in a 1U full-rack chassis
- • 4x4 USB digital audio interface for room PC and soft codec audio
- • EXP port adds 16 channels Rx and 16 channels Tx over shielded CAT6
- • Switchable +48 VDC phantom power on inputs 1 through 8
- • 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

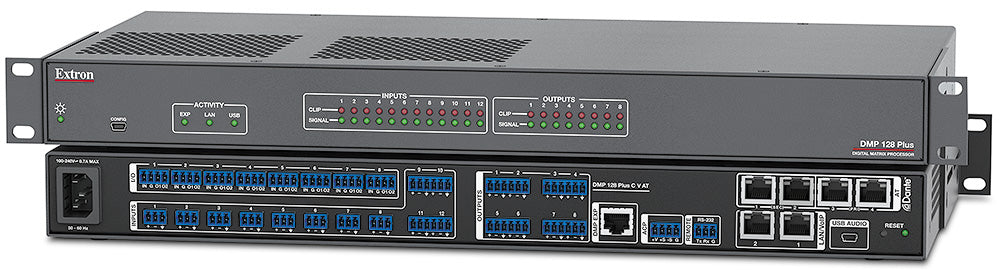

Extron DMP 128 Plus AT (part number 60-1511-10) — a 12x8 ProDSP digital audio matrix processor with on-board Dante networking.
The AT version of the DMP 128 Plus adds a four-port gigabit Dante interface to the same twelve-input, eight-output analog core. That lets a room keep its local microphones and loudspeakers while pulling another 48 channels in and pushing 24 channels out across the building network. Dante and AES-67 are selectable in software, and the processor works with Dante Domain Manager, so audio can cross subnets in campus-scale and multi-building systems instead of stopping at the rack.
Key Capabilities
- Four RJ-45 ports on a 1 Gbps switch feed the Dante interface: 48 channels received, 24 channels transmitted.
- Latency is deterministic and user-selected at 0.25, 0.5, 1.0 (default), 2.0 or 5.0 ms.
- Twelve mono mic/line inputs, balanced or unbalanced, with +48 VDC phantom power switchable on inputs 1-8.
- Eight mono (or four stereo) balanced/unbalanced line outputs, plus a 4x4 USB digital audio interface.
- EXP port adds a further 16 channels in and 16 channels out over shielded CAT6.
- RS-232, Ethernet, front-panel USB, eight digital I/O ports and support for up to eight ACP control panels.
Where It Is Used
Networked audio makes this model a fit for multi-room corporate campuses, university lecture blocks, houses of worship, stadium and arena systems, and command centers where the DSP, the amplifiers and the sources sit in different rooms. The 1U full-rack metal enclosure and internal universal supply install in any standard equipment rack.
Specifications at a Glance
- Analog matrix: 12 mic/line inputs by 8 line outputs, 24-bit/48 kHz
- Dante/AES-67: 48 channels Rx, 24 channels Tx, uncompressed 24-bit/48 kHz
- Frequency response 20 Hz to 20 kHz, ±0.2 dB; crosstalk better than -90 dB
- Power consumption 32.1 W, thermal dissipation 77.0 BTU/hr
- Enclosure 1.69 in H x 17.40 in W x 9.48 in D, 4.5 lbs (2.1 kg)
Also referenced as Extron DMP128PlusAT, DMP-128-Plus-AT, part number 60151110.
