Extron DMP 128 C AT ProDSP Processor with AEC and Dante
- • Eight independent channels of Extron acoustic echo cancellation
- • FlexInputs let a Dante channel replace any of the 8 local mic inputs
- • Dante/AES-67 transport: 56 channels received, 24 transmitted
- • Built-in four-port 1 Gbps switch chains multiple processors together
- • AEC tail length over 200 msec, convergence up to 60 dB per second
- • Twelve mono mic/line inputs, eight with switchable 48 VDC phantom
- • Automixer with gated and gain sharing modes across 8 mic groups
- • Expansion port carries 16 channels each way to a second unit
Product discontinued. Replacement: https://www.extron.com/product/dmp128plus.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

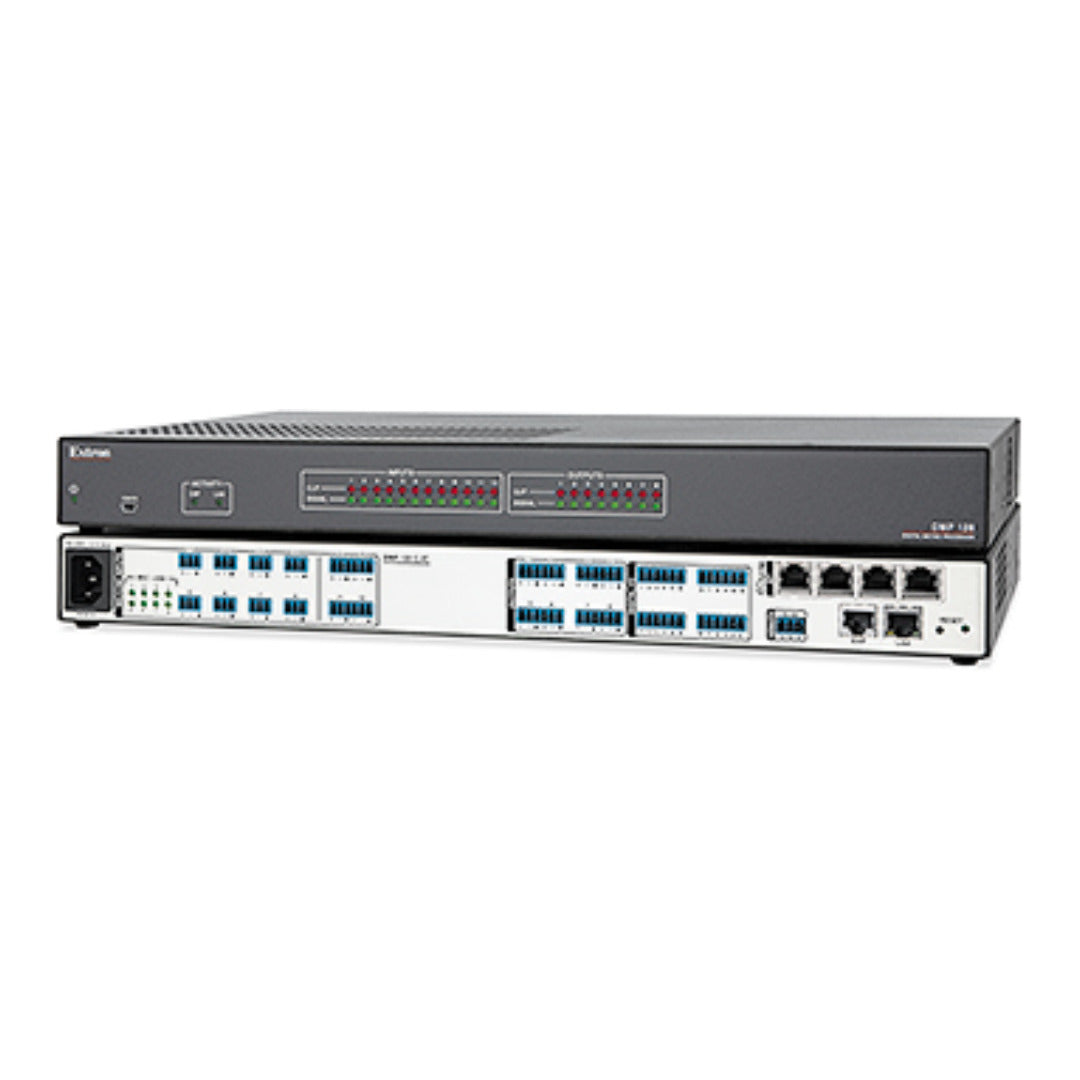

Extron DMP 128 C AT (part number 60-1178-10) — the 12x8 ProDSP digital audio matrix processor carrying both eight channels of acoustic echo cancellation and Dante networking.
This is the combination most conferencing rooms actually want. The C brings Extron AEC, eight independent channels with a tail beyond 200 milliseconds and convergence up to 60 dB per second, tuned to hold up under double-talk and roaming wireless microphones. The AT brings Dante, which matters here for more than transport: FlexInputs on channels 1 to 8 can each take a network channel instead of the local analog connector, so a remote wireless receiver or a wallplate microphone anywhere on the network gets the same AEC and DSP chain a hardwired microphone would. The unit receives 56 Dante channels and transmits 24, through a built-in four-port Gigabit switch that also lets several processors and AXP expanders be chained into a larger matrix.
Key Capabilities
- Eight independent channels of Extron acoustic echo cancellation with selectable noise cancellation to 20 dB.
- FlexInputs on channels 1 to 8 substitute a Dante channel for the local mic/line input.
- Dante/AES-67 transport: 56 channels Rx and 24 channels Tx.
- Built-in four-port 1 Gbps switch for chaining processors and AXP expanders.
- Twelve mono mic/line inputs, eight with switchable +48 VDC phantom power.
- Expansion port carries 16 channels each way to a second unit or a DTP CrossPoint.
Where It Is Used
Boardrooms and courtrooms running remote participants over both a local network and a far-end codec, conference centres with distributed wireless microphone systems, and multi-room campuses where the microphone estate is on Dante but echo cancellation still has to happen per room. Note this model has no telephone interface; that is the C P variant.
Specifications at a Glance
- I/O: 12 mono mic/line in, 8 mono (or 4 stereo) out, plus Dante
- AEC: 8 channels, over 200 msec tail, up to 60 dB/sec convergence
- Network: (4) RJ-45, 4-port 1 Gbps switch, Dante/AES-67 selectable
- Power: internal 100-240 VAC supply, 28 watts; fan cooled right to left
- Enclosure: metal, 1.7" H x 17.4" W x 9.5" D, 2.8 lbs
Also referenced as Extron DMP128CAT, DMP-128-C-AT, part number 60117810. Extron lists this part number as retired.
