Extron DataViewer (part number 79-502-01) — free enhanced terminal emulation software for analyzing communication with Extron devices.

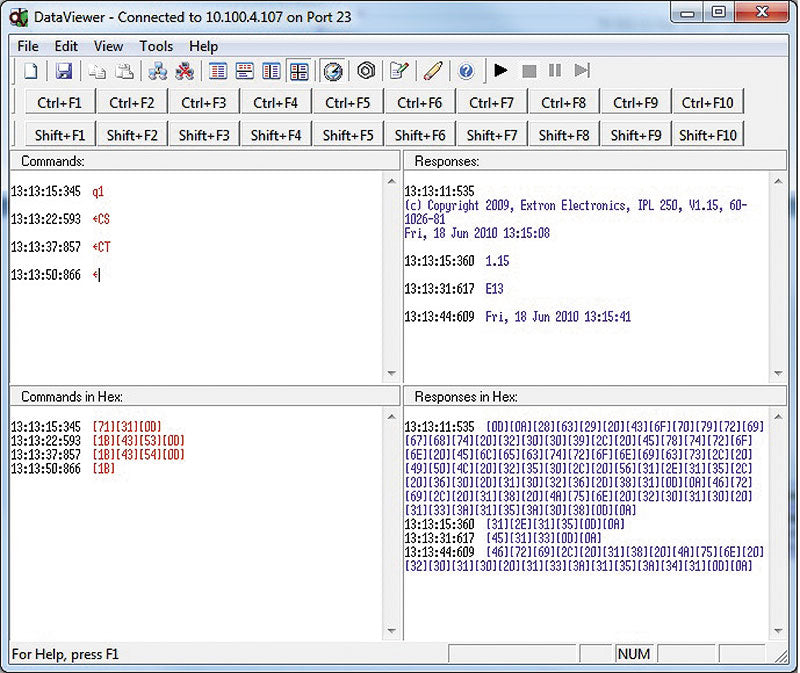

Diagnosing a stubborn control or serial issue usually comes down to seeing exactly what a device is sending and receiving, and DataViewer is built for that job. It opens RS-232, USB, or TCP/IP connections to an Extron device, sends commands, and displays the raw responses in either ASCII or hexadecimal, with user-definable colors and fonts to keep commands and responses visually distinct while a technician works through a protocol issue.

Key Capabilities

• Enhanced terminal emulation for RS-232, USB, and TCP/IP communication with Extron devices
• Displays commands and device responses in ASCII or hexadecimal format
• Saves command and response logs in text or HTML format
• Offers 4 configurable screen view options for analyzing data communication
• Customizes up to 20 shortcut keys via the Control Toolbar and Shift Toolbar
• Free Windows utility built for protocol troubleshooting and device timing analysis

Where It Is Used

Used by integrators and support technicians troubleshooting serial or network communication problems with Extron control and AV hardware, and by programmers verifying device command syntax and response timing during development.

Specifications at a Glance

• Connections: RS-232, USB, TCP/IP
• Data formats: ASCII, hexadecimal
• Log formats: Text, HTML
• Shortcut keys: Up to 20 customizable

Also referenced as ExtronDataViewer, Extron-DataViewer, part number 7950201.
