Details

Part number 70-1268-03 — DAK SF 26CT driver/baffle assembly only, sold as a matched pair (2 of 2).

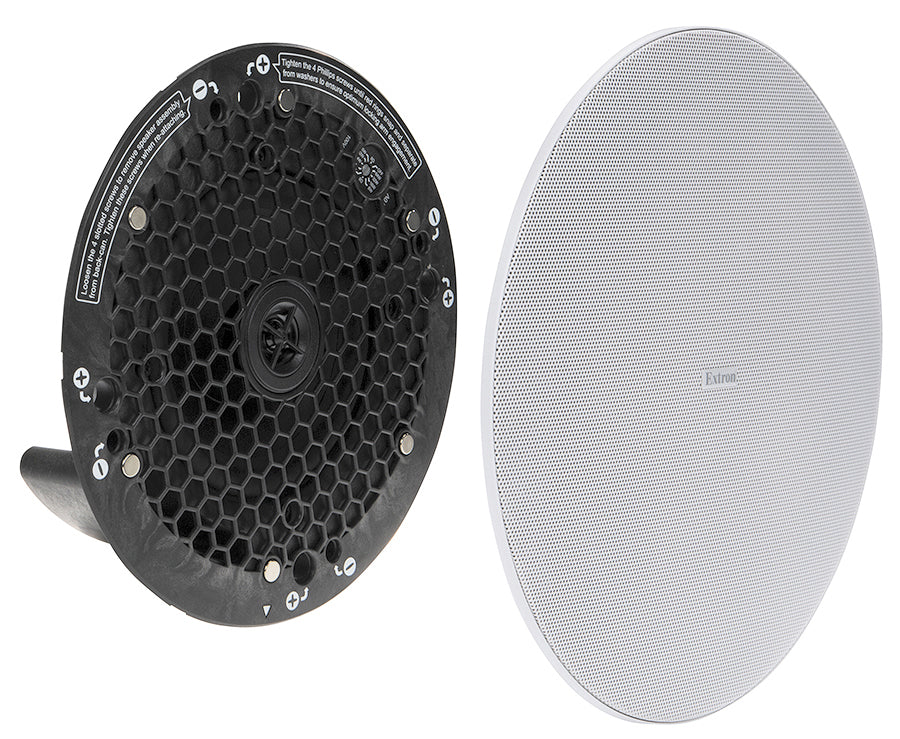

The DAK SF 26CT supplies the 6.5 in woofer, 0.75 in PEI dome tweeter, crossover, and rotary tap selector switch that install into a BCK SF 26CT back can to complete a fully functional SF 26CT SoundField XD two-way ceiling speaker. It ships with two round grilles and a setup guide; the plenum-rated back can enclosure, cutout template, ceiling mounting hardware, and captive screw input connector are supplied separately with the BCK SF 26CT.

Each driver assembly covers 65 Hz to 22 kHz with 111 degree conical dispersion, accepts 65 W continuous pink noise or 130 W program, and offers six-position rotary taps for 70V or 100V distributed lines in addition to direct 8 ohm operation.

Specifications

Part Number: 70-1268-03

Manufacturer: Extron

Model: DAK SF 26CT

Condition: New

Speaker Type: 2-way ceiling speaker driver assembly (composite back can required, sold separately as BCK SF 26CT)

Frequency Range: 65 Hz to 22 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response: 88 Hz to 22 kHz, +/-3dB, half space

Power Capacity: 65 W (rms) continuous pink noise; 130 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 22.4 V (62.6 W at 8 ohms) (per AES2-2012)

Maximum SPL: 104 dB, 1 m (based on MIV); 106 dB, 1 m (linear)

Nominal Sensitivity: 88 dB SPL, 1W, 1 m, half space

Nominal Impedance: 8 ohms per speaker

Crossover Frequency: 2.5 kHz

Nominal Coverage Angle: 111° conical coverage (1 kHz to 4 kHz)

Woofer: (1) 6.5" (165 mm) polypropylene cone with moisture resistant coating

Tweeter: (1) 0.75" (19.1 mm) PEI dome

Rotary Switch Taps: 70 V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct. 100 V: 64 W, 32 W, 16 W, 8 ohms direct

Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer, and crossover

Package: 2 speakers (1 pair)

Included Accessories: 2 round grilles, setup guide

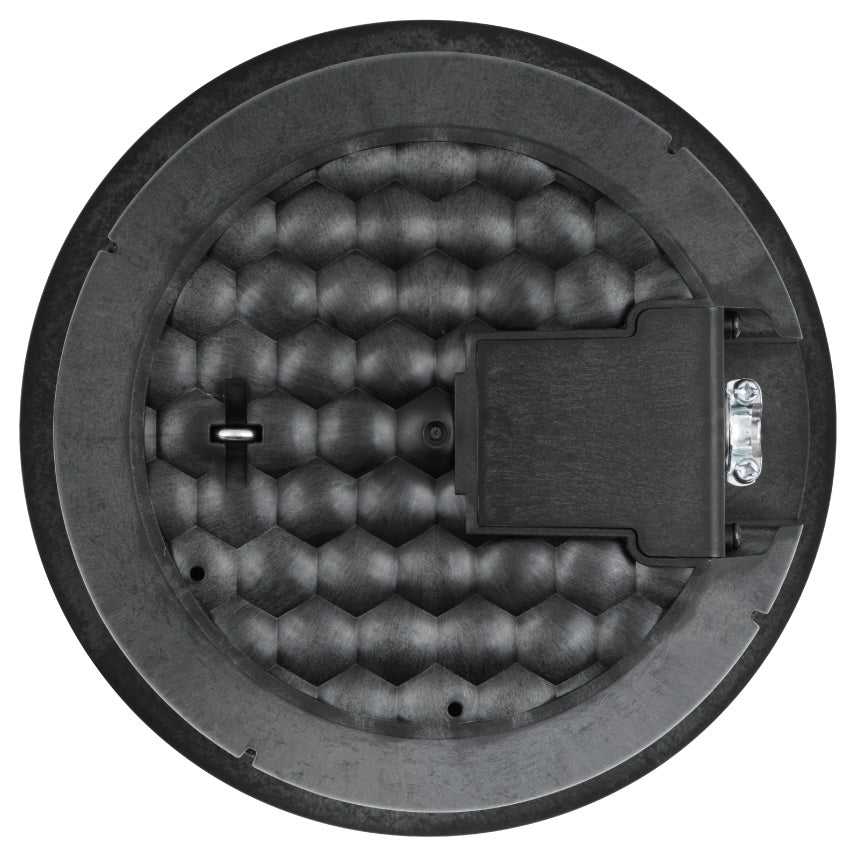

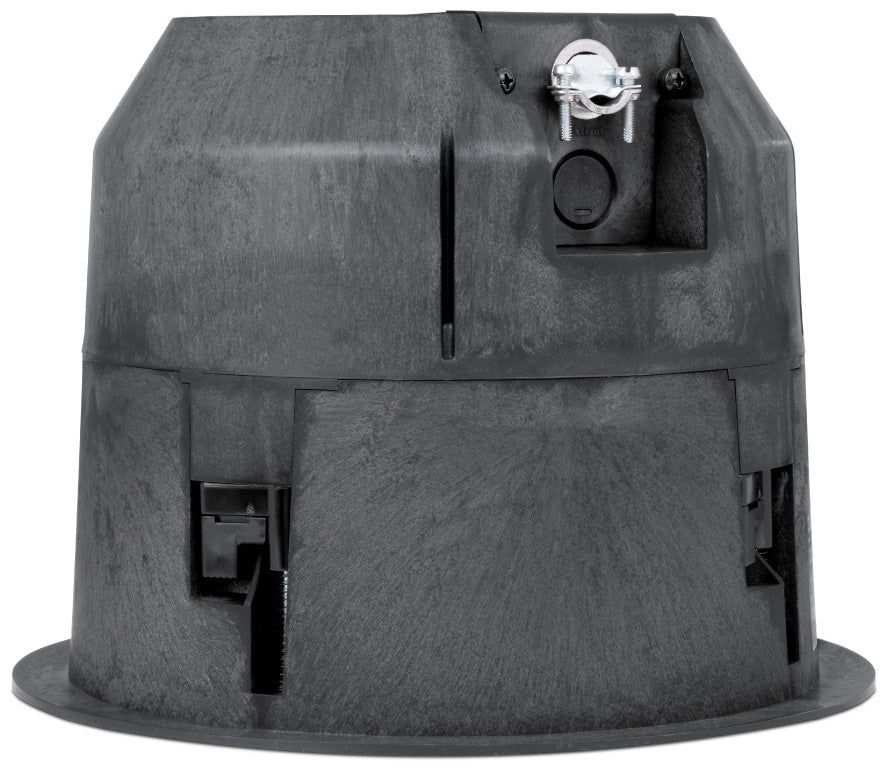

Compatible Enclosure: BCK SF 26CT back can (required to complete the SF 26CT speaker assembly; sold separately)

Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | DAK SF 26CT 70-1268-03 | SF 26CT Series

Brochure | DAK SF 26CT 70-1268-03 | SF 26CT

Manual | DAK SF 26CT 70-1268-03 | BCK SF26CT Setup Guide

Manual | DAK SF 26CT 70-1268-03 | Cleaning Instruction Card

Manual | DAK SF 26CT 70-1268-03 | DAK SF26CT Setup Guide

Manual | DAK SF 26CT 70-1268-03 | SF 26CT Setup Guide

Manual | DAK SF 26CT 70-1268-03 | SF 26CT User Guide

Specifications | DAK SF 26CT 70-1268-03 | SF 26CT

Panel Drawing | DAK SF 26CT 70-1268-03 | SF 26CT

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron DAK SF 26CT Driver Assembly Kit 70-1268-03

Name: Extron DAK SF 26CT Driver Assembly Kit 70-1268-03
Brand: Extron
SKU: EXTRON-DAKSF26CT-70126803
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron DAK SF 26CT Driver Assembly Kit

• 6.5 inch woofer and 0.75 inch PEI dome tweeter driver assembly for the SF 26CT
• 111 degree conical coverage across 65 Hz to 22 kHz
• 65 W continuous pink noise, 130 W continuous program power handling
• Six-position rotary taps for 70V or 100V lines, or direct 8 ohm operation
• Snaps into a BCK SF 26CT back can to complete the SF 26CT speaker
• Includes two round grilles and setup guide

Product discontinued.
