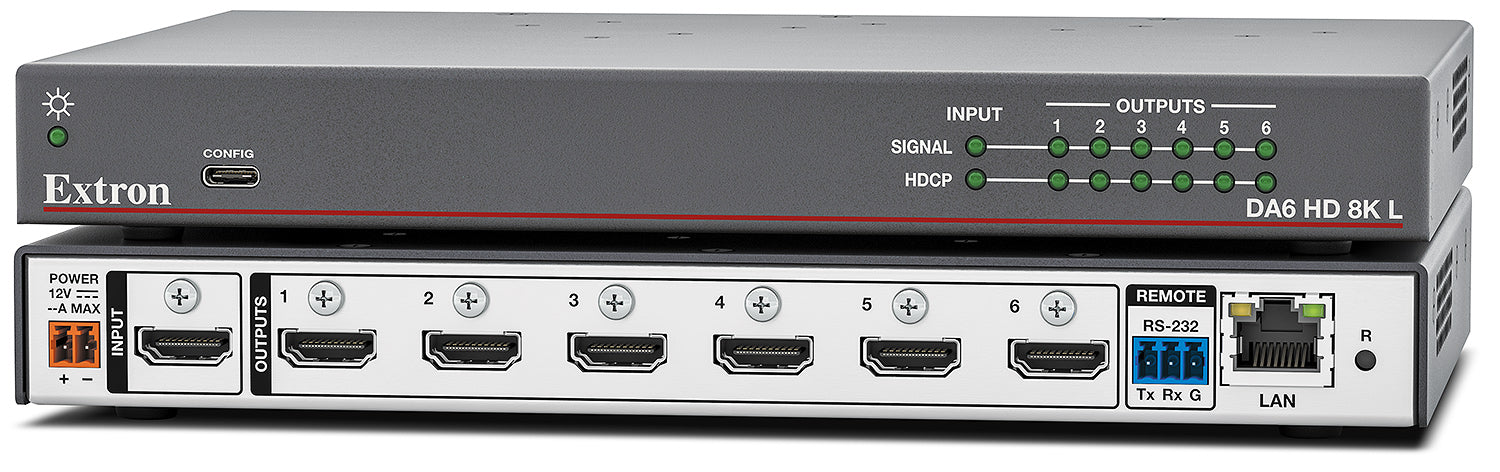

Extron DA6 HD 8K L 1x6 8K/60 HDMI Distribution Amplifier 60-1872-01
Extron DA6 HD 8K L 1x6 8K/60 HDMI Distribution Amplifier 60-1872-01
Extron DA6 HD 8K L HDMI Distribution Amplifier
- • Distributes one HDMI 2.1 source to six displays at up to 8K/60
- • 40.1 Gbps maximum data rate with a 2376 MHz pixel clock
- • EDID Minder Plus handles the extra blocks 5K and 21:9 displays need
- • Key Minder keeps HDCP 2.3 authenticated across all six outputs
- • Each output supplies +5 VDC at 250 mA for active optical cables
- • HDCP visual confirmation flags a non-compliant display in green
- • RS-232 at 9600 baud plus LAN and front panel USB-C configuration
- • Draws 21.5 watts, dissipates 47.8 BTU/hr, no fans in the chassis
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

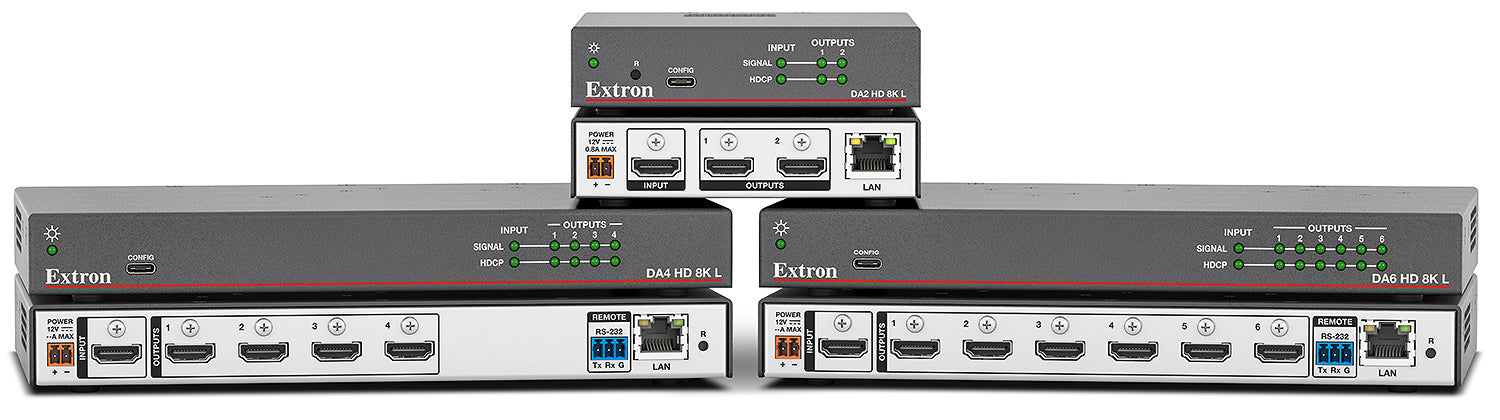

Extron DA6 HD 8K L (part number 60-1872-01) — the six output model in the DA HD 8K L family, an HDMI 2.1 distribution amplifier rated to 8K/60 with RS-232 and Ethernet control.
Six outputs is where cable quality and EDID handling stop being afterthoughts. This amplifier carries 40.1 Gbps on a 2376 MHz pixel clock, so 7680x4320 travels at 60 Hz with 4:2:0 sampling or 30 Hz at 4:4:4, and each port supplies +5 VDC at 250 mA so active hybrid optical HDMI cables can reach displays further away than copper allows. EDID Minder Plus manages the additional memory blocks that 5K and 21:9 panels advertise over EDID and DisplayID, and Key Minder keeps HDCP 2.3 authenticated to all six sinks simultaneously. Any output can be muted for video, audio or sync, and HDCP authorization is user-selectable so a source that encrypts everything by default can be persuaded otherwise.
Key Capabilities
- Six single link HDMI outputs on female 19-pin type A connectors from one HDMI input.
- 40.1 Gbps maximum data rate covering VESA resolutions from 640x480 to 7680x4320.
- +5 VDC at 250 mA per output for active optical cables and other peripherals.
- RS-232 at 9600 baud on a rear 3-pole captive screw, LAN RJ-45, and a front USB-C config port.
- HDCP visual confirmation displays a green field when protected content hits a non-compliant screen.
- Consumes 21.5 watts and dissipates 47.8 BTU/hr with no fans.
Where It Is Used
Video wall and monitor bank feeds, esports arenas and simulation labs, large divisible conference spaces, broadcast and post-production monitoring, transport and venue signage clusters, and command centres duplicating a single high-rate source across an operator row.
Specifications at a Glance
- I/O: 1 HDMI in, 6 HDMI out, all female 19-pin type A
- Signal: HDMI 2.1, HDCP 1.x and 2.3, 40.1 Gbps, 2376 MHz
- Control: RS-232, LAN RJ-45 and front panel USB-C
- Power: external 12 VDC 2.0 A 18 W supply; 21.5 W at the device
- Enclosure: metal, 1.00" H x 8.75" W x 6.00" D, 3.05 lbs
Also referenced as Extron DA6HD8KL, DA6-HD-8K-L, part number 60187201.
