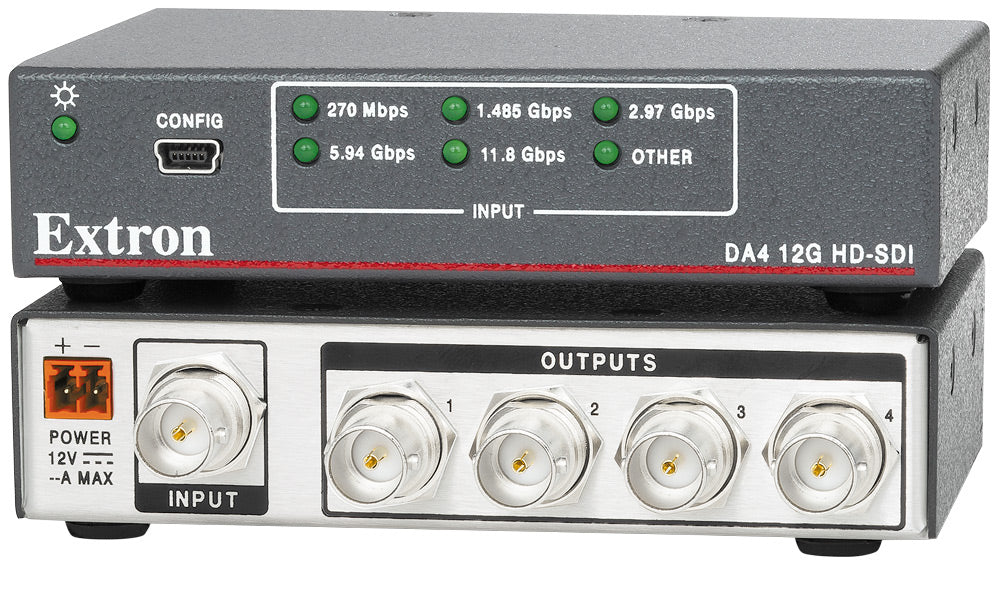

Extron DA4 12G HD-SDI (part number 60-1674-02) — the current production four output multi-rate SDI distribution amplifier, quarter-rack width, spanning SD-SDI through 12G-SDI.

The point of a modern SDI distribution amplifier is that nobody should have to tell it what is coming in. This one adapts on its own to the applicable SMPTE and ITU standard for any rate between 270 Mbps and 11.88 Gbps, equalizes the input to recover as much as -30 dB of cable loss, and reclocks each of the four outputs to strip high-frequency jitter before the signal moves on. Reclocking can be set per output or bypassed entirely where a downstream device prefers the raw stream. HDR, up to 16 embedded audio channels, closed caption and time code all survive the trip.

Key Capabilities

One female BNC input distributed to four female BNC outputs, all at 75 ohms.
Automatic rate lock across SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.
Equalized reach of roughly 70 m at 12G-SDI, 180 m at 3G-SDI and 300 m at SDI on RG6.
Per-output reclocking at 270 Mbps, 1.485, 2.97, 5.94 and 11.88 Gbps, or bypass.
Input rate LEDs on the front panel confirm the detected format instantly.
Ships with an Extron Everlast PS 1205 C supply, replacement part 70-1175-01.

Where It Is Used

Outside broadcast and studio machine rooms, live production and streaming rigs, esports and stadium camera systems, worship venues, post-production suites, and imaging environments where an SDI feed must reach a recorder, a monitor and a processing chain at once.

Specifications at a Glance

I/O: 1 female BNC in, 4 female BNC out, unity gain, 10 ns latency
Rates: 270 Mbps to 11.88 Gbps; level A and level B mapping supported
Power: external 12 VDC 0.5 A 6 W Everlast supply; 12 VDC 0.2 A at the unit
Enclosure: metal, 1.0" H x 4.3" W x 3.0" D, 0.33 lbs
Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron DA412GHDSDI, DA4-12G-HD-SDI, part number 60167402.

Specifications

Part Number: 60-1674-02

Manufacturer: Extron

Model: DA4 12G HD-SDI

Condition: New

Signal Type: SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital video

Maximum Video Data Rate: 11.88 Gbps per 12G-SDI connection

Frame Rate: 23.97, 24, 29.97, 30, 50, 59.94 and 60 fps

Chroma Sampling: 4:4:4, 4:2:2, and 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color

Bit Depth by Rate: 12G-SDI up to 10 bits; 6G-SDI up to 10 bits; 3G-SDI up to 12 bits; HD-SDI up to 12 bits; SDI up to 12 bits

Gain: Unity

Resolution: 8, 10, or 12 bits, automatic

Operation Standards: SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-372M, SMPTE ST-2081, SMPTE 2082, ITU-RBT.601, ITU-RBT.1120

Auto Data Rate Lock: Yes

Latency: 10 ns

Level Mapping: Supports both level A and level B mapping (3G-SDI and 6G-SDI)

Video Input: 1 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video on 1 female BNC connector

Input Nominal Level: 0.8 Vp-p

Input Minimum/Maximum Levels: 0.5 Vp-p to 1 Vp-p with no offset

Input Impedance: 75 ohms

Input Return Loss: ≥15 dB @ 5 MHz to 2.97 GHz

Input DC Offset (Maximum Allowable): 5 V

Input Coupling: AC

Equalization: Automatic for up to -30 dB of cable loss

Equalized Cable Distance: 12G-SDI 70 m (230 ft); 6G-SDI 90 m (295 ft); 3G-SDI 180 m (590 ft); HD-SDI 240 m (787 ft); SDI 300 m (984 ft). Distance varies with resolution, cable type, source and display.

Video Output: 4 single link SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI digital component video on 4 female BNC connectors

Re-clocking: Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, and 11.88 Gbps (bypassed for other rates)

Output Nominal Level: 0.8 Vp-p

Output Minimum/Maximum Levels: 0.5 Vp-p to 1 Vp-p

Output Impedance: 75 ohms

Output Return Loss: ≤25 dB @ 100 MHz

Output DC Offset: ±5 mV with input at 0 offset

Audio Channels: Supports up to 16 channels of embedded audio

Ancillary Data: Passes HDR, closed caption and time code

Front Panel Indicators: Input rate LEDs for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SDI

Configuration Port: Front panel USB port for setup, configuration and firmware updates

Power Supply: External Extron Everlast; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6 watts (PS 1205 C, replacement part 70-1175-01)

Power Input Requirements: 12 VDC, 0.2 A

Ambient Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, unvented

Rack Mount: Yes, with optional 1U rack shelf or back of rack mounting kit

Furniture Mount: Yes, with optional under desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 4.3" W x 3.0" D (quarter rack wide) (2.5 cm H x 11 cm W x 7.6 cm D). Depth excludes connectors.

Product Weight: 0.33 lbs (0.15 kg)

Shipping Dimensions and Weight: 9.5" H (24.1 cm) x 7.13" W (18.1 cm) x 2.69" D (6.8 cm), 1.36 lbs (0.62 kg)

Regulatory Compliance: CE, CUL, UL, FCC Class A, VCCI, AS/NZS, ICES

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
