Extron DA2 HD 8K L HDMI Distribution Amplifier
- • Distributes one HDMI 2.1 source to two displays at up to 8K/60
- • 40.1 Gbps maximum data rate with a 2376 MHz pixel clock
- • EDID Minder Plus handles the extra blocks 5K and 21:9 displays need
- • Key Minder keeps HDCP 2.3 authenticated on both outputs at once
- • Each output supplies +5 VDC at 250 mA for active optical cables
- • Ethernet monitoring and control with IEEE 802.1X authentication
- • Quarter-rack metal chassis, 0.53 lbs, drawing 7.4 watts
- • 3 year product warranty plus 7 years on the Everlast power supply
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

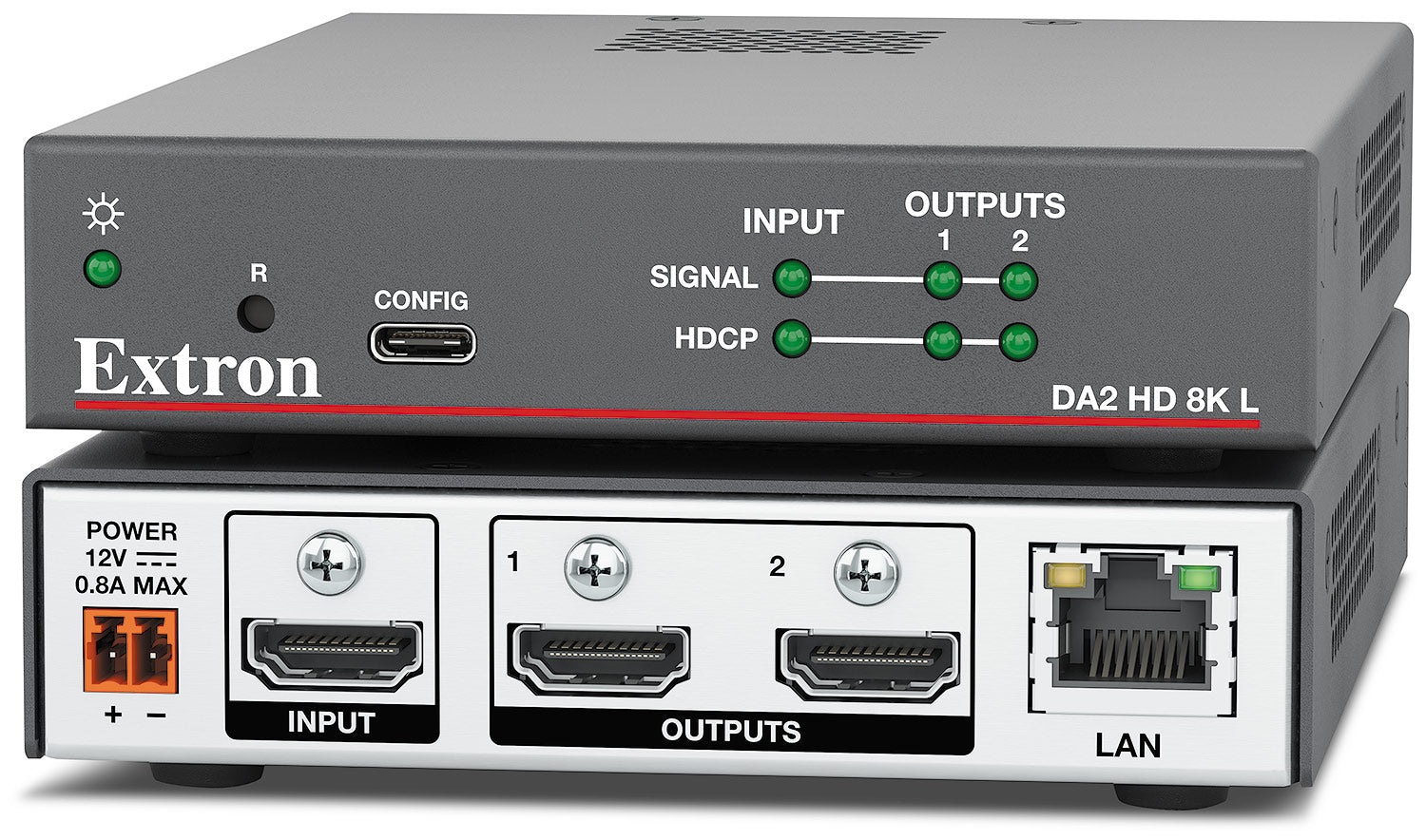

Extron DA2 HD 8K L (part number 60-1870-01) — a two output HDMI 2.1 distribution amplifier rated to 8K/60, in a one inch high quarter-rack metal enclosure.
Bandwidth is the whole story here. At 40.1 Gbps and a 2376 MHz pixel clock, this amplifier carries 7680x4320 at 60 Hz with 4:2:0 sampling, or 30 Hz at full 4:4:4, and covers the 5K formats Microsoft Teams rooms rely on. EDID Minder Plus is the quieter but equally important feature: it handles the extra memory blocks that 5K panels and 21:9 displays use to convey their capabilities over both EDID and DisplayID, which is where ordinary distribution amplifiers fall over. Key Minder keeps HDCP 2.3 authenticated on both outputs simultaneously, and if protected content reaches a non-compliant display, a full-screen green field says so immediately rather than leaving an installer guessing.
Key Capabilities
- Two single link HDMI outputs on female 19-pin type A connectors, driven from one HDMI input.
- 40.1 Gbps maximum data rate covering VESA resolutions from 640x480 up to 7680x4320.
- Each output delivers +5 VDC at 250 mA for peripherals such as active hybrid optical HDMI cables.
- Ethernet monitoring and control over a single RJ-45, with 802.1X port-based authentication.
- Outputs mute independently for video, audio or sync, and HDCP authorization is user-selectable.
- Front panel USB-C config port for Extron PCS, plus SIS command control.
Where It Is Used
Executive boardrooms fitted with 5K or 8K panels, Microsoft Teams rooms needing the 21:9 and 5K EDID handling, esports and gaming venues running 3840x2160 at 120 Hz, broadcast monitoring positions, and medical imaging suites where a diagnostic display and a review monitor take the same feed.
Specifications at a Glance
- I/O: 1 HDMI in, 2 HDMI out, all female 19-pin type A
- Signal: HDMI 2.1, HDCP 1.x and 2.3, 40.1 Gbps, 2376 MHz
- Control: LAN RJ-45 and front panel USB-C (no RS-232 on this model)
- Power: external 12 VDC 1.5 A 18 W supply; 7.4 W at the device
- Enclosure: metal, 1.00" H x 4.30" W x 6.00" D, 0.53 lbs
Also referenced as Extron DA2HD8KL, DA2-HD-8K-L, part number 60187001.
Specifications
Specifications

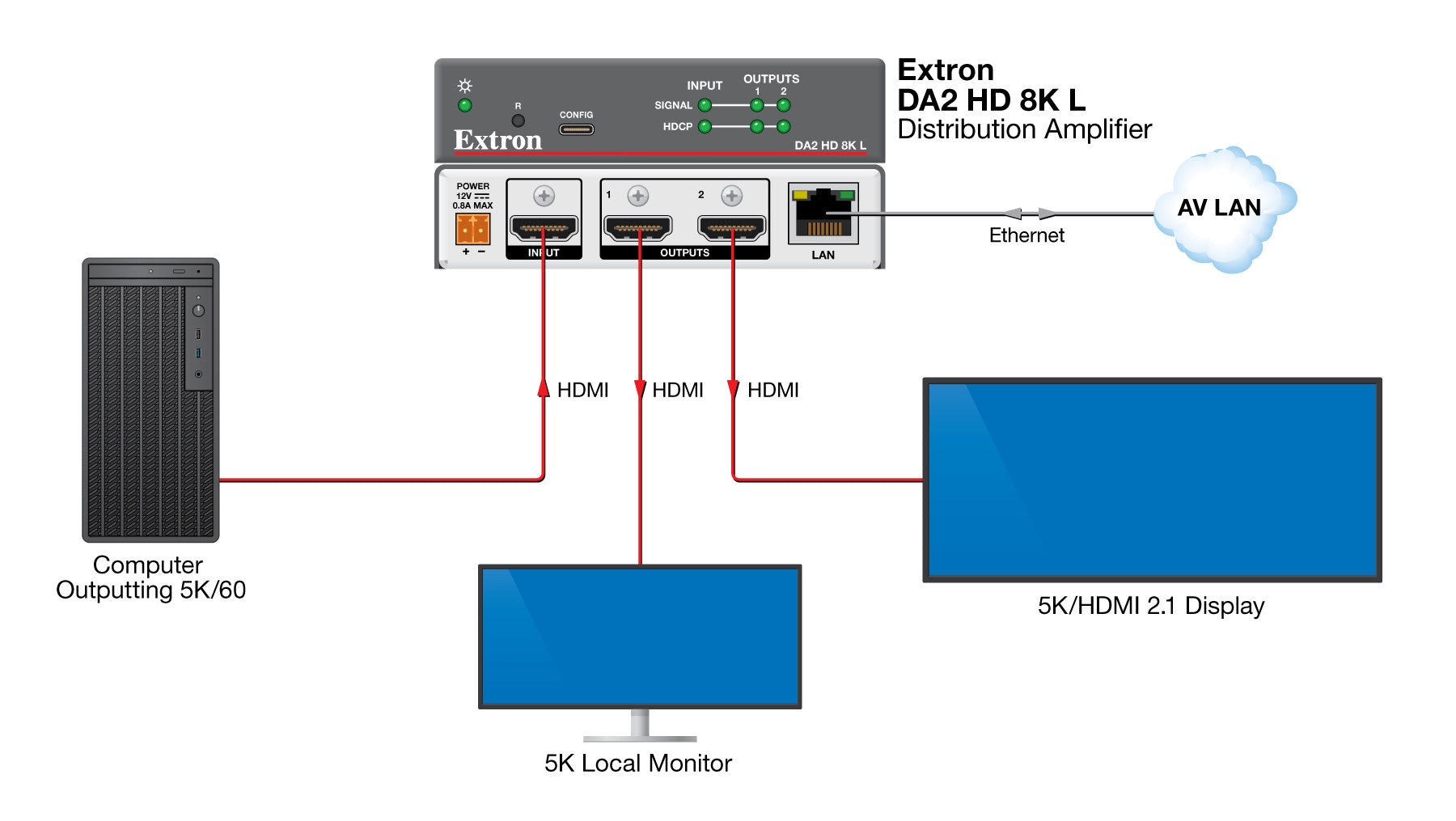

Diagram
