Extron DA2 HD 8K AI HDMI 2.1 Distribution Amplifier
- • One HDMI 2.1 input distributed to two HDMI outputs
- • Analogue stereo audio input embedded onto both outputs
- • Input gain adjustable -18 dB to +24 dB in 1 dB steps
- • 40.1 Gbps data rate; 8K at 60 Hz and 4K at 120 Hz
- • Accepts +21 dBu balanced or +15 dBu unbalanced audio
- • CMRR better than 60 dB at 1 kHz
- • Quarter-rack metal enclosure, 0.55 lb, 6.8 W
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

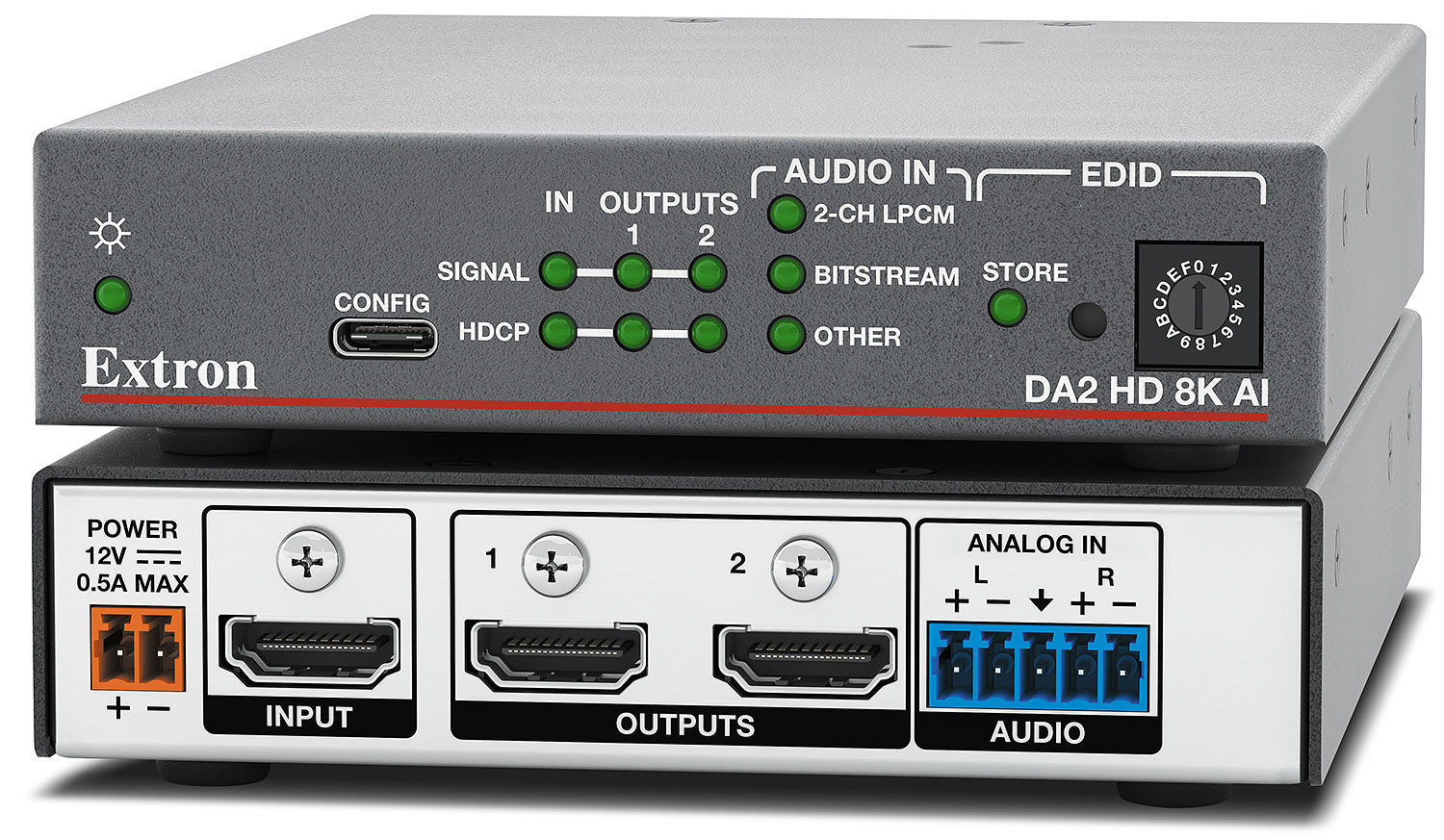

Extron DA2 HD 8K AI (part number 60-1870-13) — a one-in, two-out HDMI 2.1 distribution amplifier with an analogue audio input, so a separate stereo source can be embedded onto both HDMI outputs.

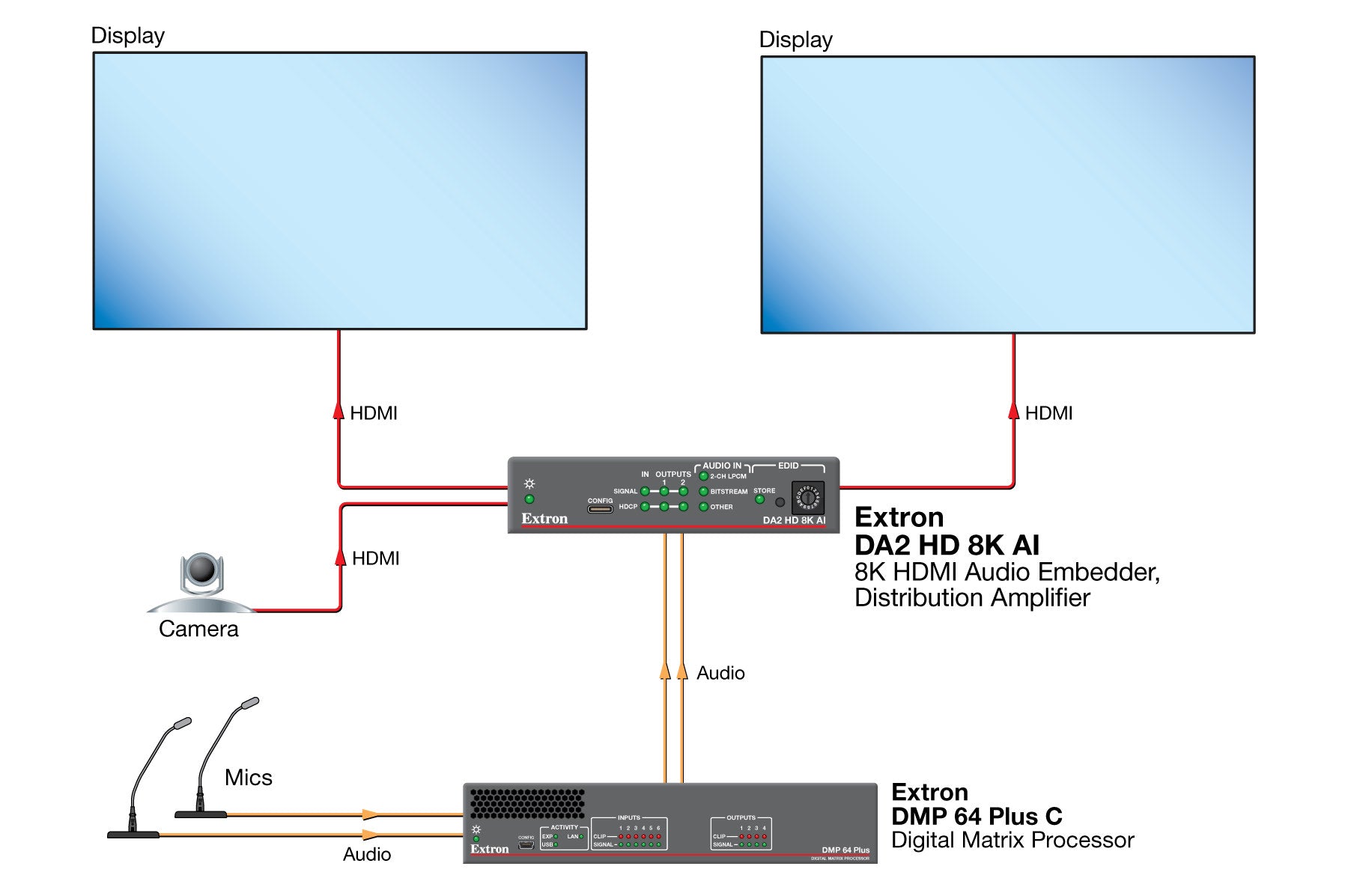

Where the AE model breaks audio out, the AI model brings it in. A 5-pole 3.5 mm captive screw input accepts a balanced or unbalanced stereo signal at either +4 dBu or -10 dBV, with 42 dB of gain range available in 1 dB steps and better than 60 dB of common mode rejection at 1 kHz. That signal joins the video on the two HDMI outputs, which is how a room adds program audio from a mixer or wireless receiver to a source that has none. Video handling is identical to the rest of the family: HDMI 2.1 at 40.1 Gbps, a 2376 MHz pixel clock, 8K at 60 Hz, HDR10, HDR10+ and Dolby Vision, and HDCP 2.3.
Key Capabilities
- One HDMI input to two HDMI outputs on 19-pin female Type A connectors
- Analogue stereo audio input embedded onto both outputs
- Input gain adjustable from -18 dB to +24 dB in 1 dB steps
- 40.1 Gbps maximum data rate; 8K at 60 Hz and 4K at 120 Hz
- Accepts +21 dBu balanced or +15 dBu unbalanced audio; CMRR above 60 dB at 1 kHz
- EDID emulation of 128 to 512 bytes; 250 mA peripheral power per output
Where It Is Used
Lecture theatres and houses of worship adding a mixer feed to a camera or computer source, corporate AV racks that need one HDMI signal on two displays with room audio embedded, and broadcast or clinical suites handling HDR video where the audio path is separate from the video path.
Specifications at a Glance
- Video: HDMI 2.1, HDCP 2.3, 40.1 Gbps, VESA 640x480 to 7680x4320
- Analogue audio in: 1 stereo balanced/unbalanced, 10k ohms unbalanced / 20k ohms balanced
- Audio levels: +4 dBu or -10 dBV nominal, +21 dBu balanced maximum
- Enclosure: 1.00 in. H x 4.30 in. W x 6.00 in. D metal, quarter rack, 0.55 lb
- Power: external 12 VDC, 6.8 W, 14.7 BTU/hr; 3 year warranty, 7 year Everlast supply warranty
Also referenced as Extron DA2HD8KAI, DA2-HD-8K-AI, part number 60187013.
