Extron DA2 HD 8K AE HDMI 2.1 Distribution Amplifier
- • One HDMI 2.1 input distributed to two HDMI outputs
- • 40.1 Gbps data rate with a 2376 MHz pixel clock
- • 8K at 60 Hz and ultra-wide formats to 5120 x 2880
- • De-embedded analogue stereo audio on a 5-pole captive screw
- • HDR10, HDR10+ and Dolby Vision pass-through
- • 250 mA peripheral power per HDMI output
- • Front USB-C control port with SIS and Extron PCS
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

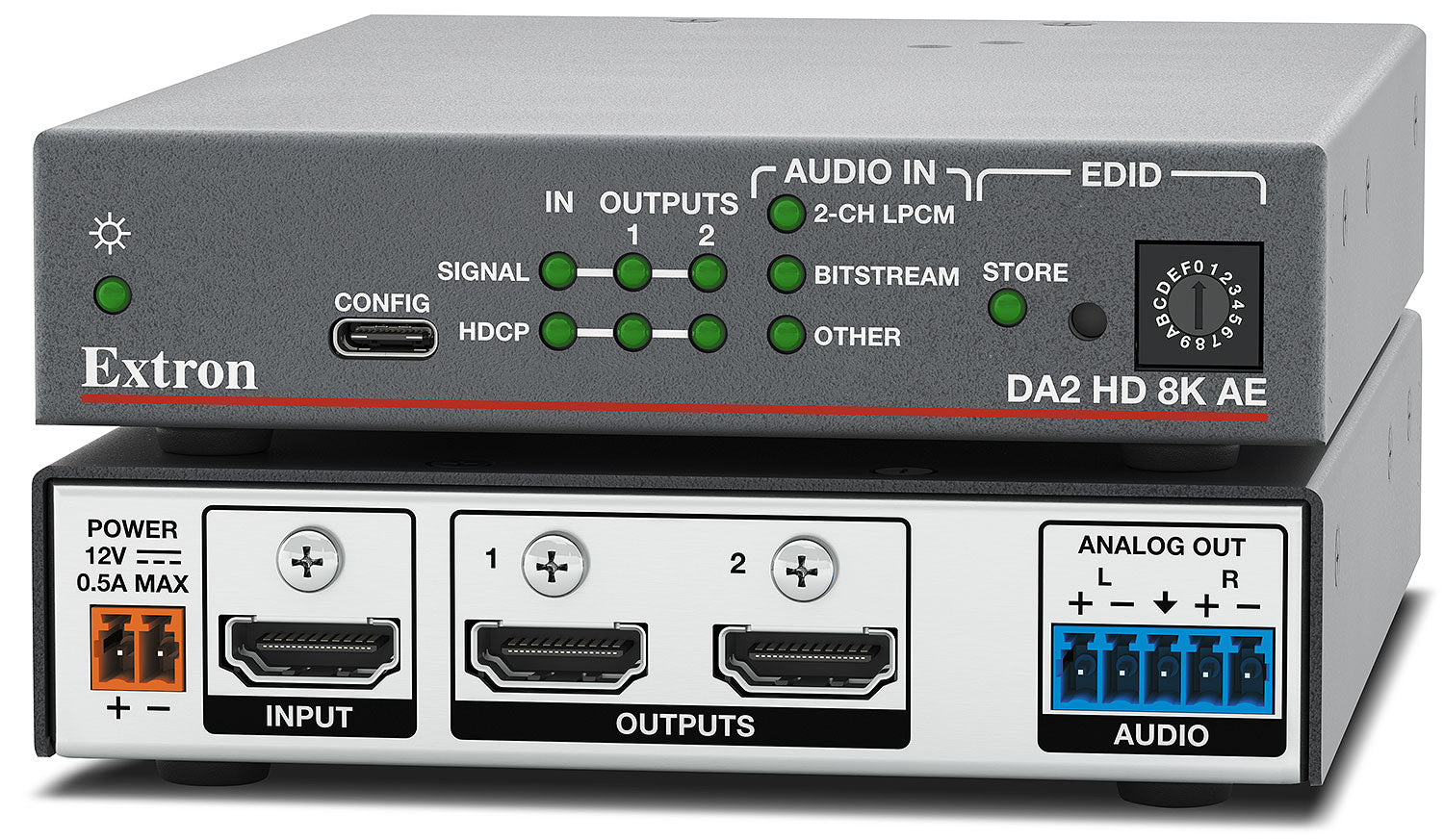

Extron DA2 HD 8K AE (part number 60-1870-12) — a one-input, two-output HDMI 2.1 distribution amplifier that also strips the embedded audio out to a balanced analogue pair.
The AE suffix is the reason to choose this model over its sibling: alongside the two HDMI outputs there is a 5-pole 3.5 mm captive screw connector carrying de-embedded stereo audio, so a display feed and a separate path to a DSP or amplifier come out of one box. Bandwidth is the full 40.1 Gbps of HDMI 2.1 with a 2376 MHz pixel clock, which covers 7680 x 4320 at 60 Hz, 4096 x 2160 at 12-bit colour, and ultra-wide formats out to 5120 x 2880. HDR10, HDR10+ and Dolby Vision pass through, as do HDCP 1.x and 2.3. EDID emulation holds 128 to 512 bytes across one to four blocks, and each HDMI output can supply 250 mA to a powered cable or dongle.
Key Capabilities
- One HDMI input distributed to two HDMI outputs, all 19-pin female Type A
- 40.1 Gbps maximum data rate with a 2376 MHz pixel clock
- 8K at 60 Hz, 4K at 120 Hz, and ultra-wide/5K formats to 5120 x 2880
- Analogue stereo audio output de-embedded to a 5-pole captive screw connector
- HDR10, HDR10+ and Dolby Vision support; HDMI 2.1 with HDCP 2.3
- Front-panel USB-C control port with SIS and Extron PCS program control
Where It Is Used
Boardrooms and auditoriums driving a main display plus a confidence monitor, broadcast and post-production suites handling HDR sources, and medical imaging and control rooms where a high-bandwidth feed must be split without generation loss. The analogue audio breakout makes it a common choice where room audio is handled by a separate DSP.
Specifications at a Glance
- Video: HDMI 2.1, HDCP 2.3, 40.1 Gbps, 640x480 to 7680x4320
- Inputs/outputs: 1 HDMI in, 2 HDMI out; input cable length up to 15 ft (4.0 m)
- Analogue audio out: 1 stereo balanced/unbalanced, 50 ohms unbalanced / 100 ohms balanced, above +12 dBV balanced
- Enclosure: 1.00 in. H x 4.30 in. W x 6.00 in. D metal, quarter rack, 0.55 lb
- Power: external 12 VDC supply, 7 W; 3 year warranty, 7 year Everlast supply warranty
Also referenced as Extron DA2HD8KAE, DA2-HD-8K-AE, part number 60187012.
Specifications
Specifications

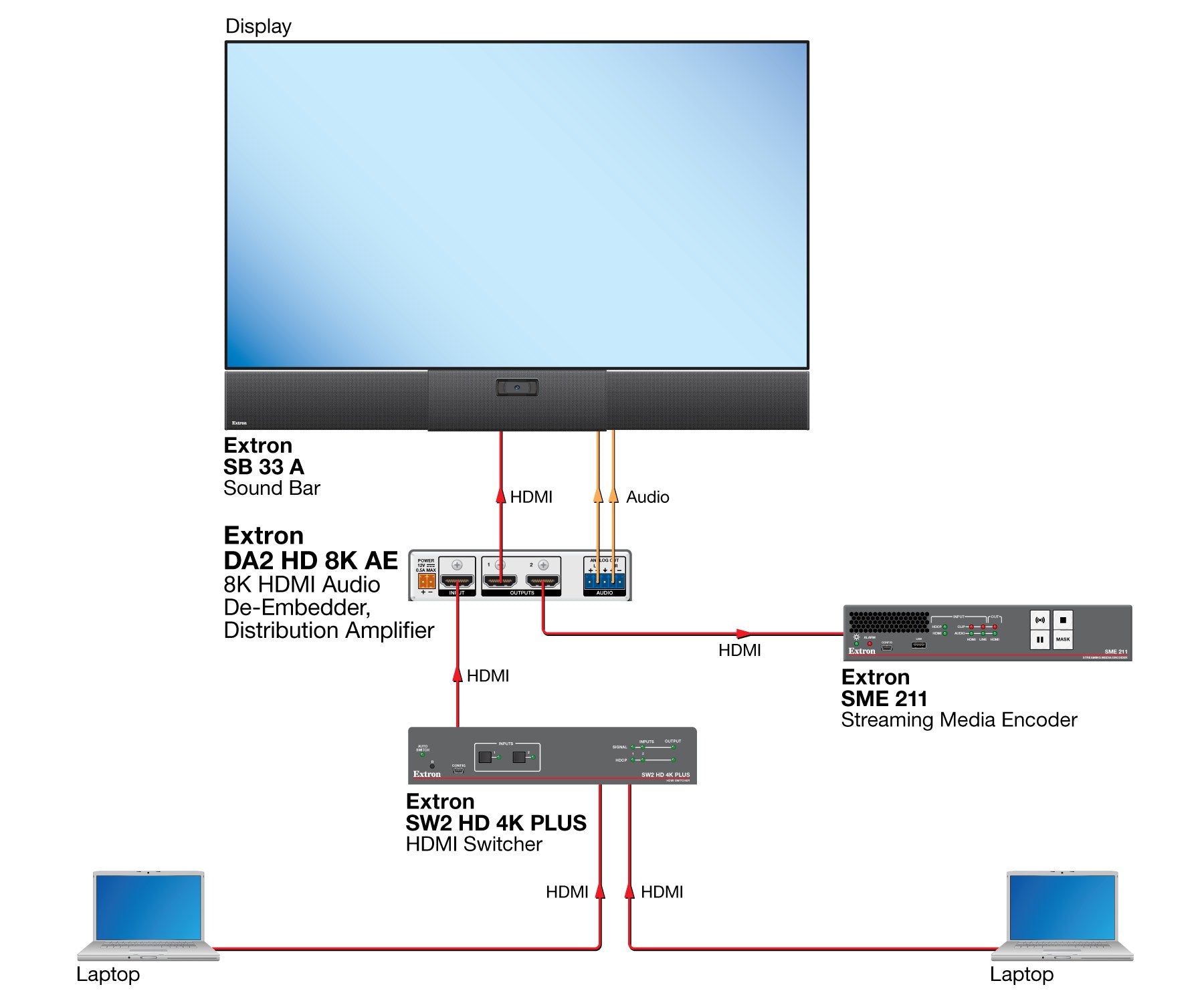

Diagram
