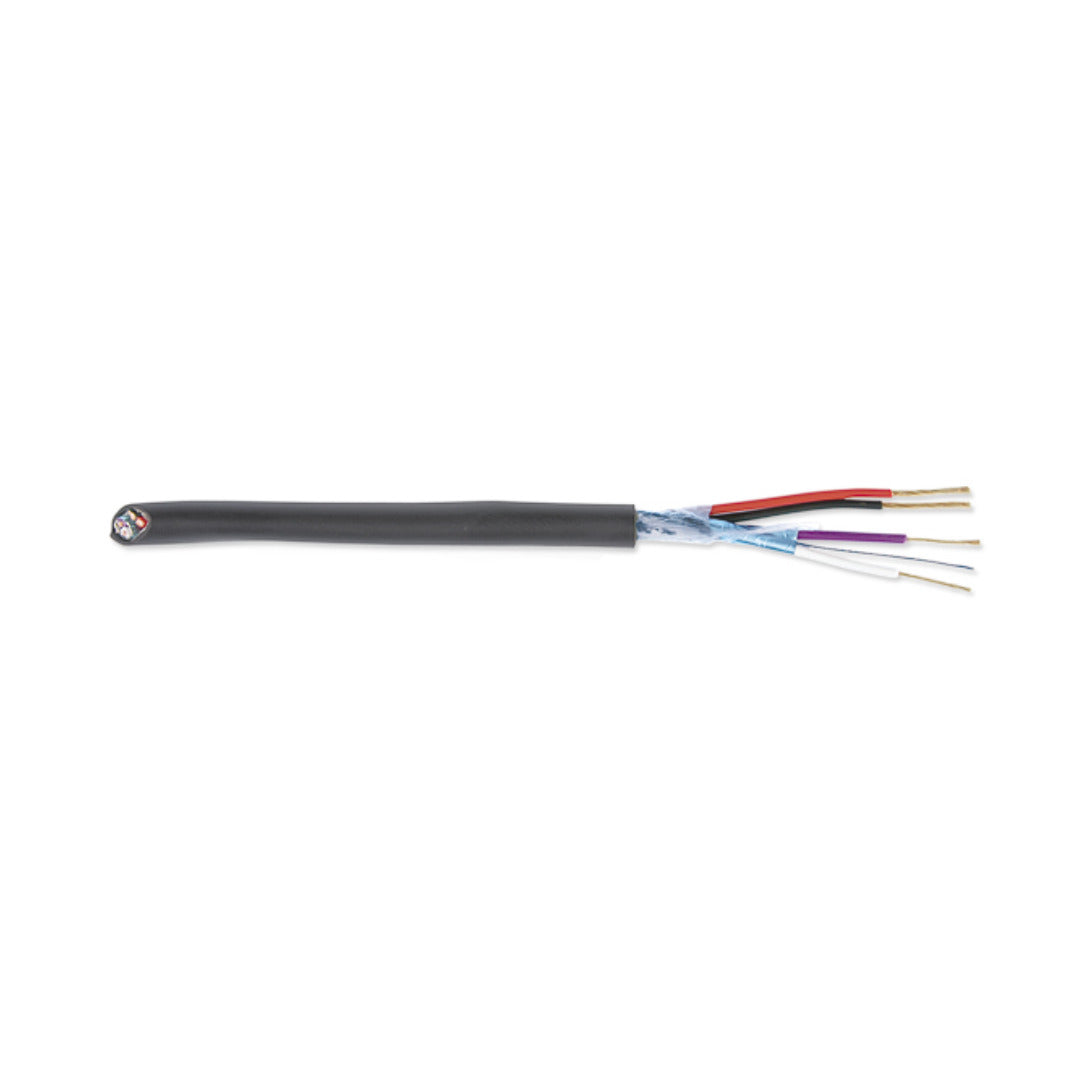

Extron CTLP/200 (part number 26-461-03) — a 200 ft pre-cut plenum Comm-Link run for control paths that span more than one room.

Two hundred feet is the length that usually shows up when the rack is centralised and the panels are not. Rather than measure and cut from bulk, an installer pulls a finished length and terminates both ends. The cable is the same plenum-listed CTLP build throughout — 18 AWG copper for power, a shielded 22 AWG twisted pair for signalling, foamed FEP dielectric, blue fire-resistant jacket.

Key Capabilities

• Pre-cut 200 ft (61 m) plenum length
• 18 AWG power pair, 6.2 ohms/1,000 ft (20.3 ohms/km) nominal DCR
• Shielded 22 AWG pair, 14.7 ohms/1,000 ft (48.2 ohms/km) nominal DCR
• 24 AWG tinned copper drain wire beneath a full-coverage tape shield
• NEC CMP, NFPA 262 and CSA FT-6
• 0.207 in (5.26 mm) nominal OD in a single blue jacket

Where It Is Used

Multi-room floors, auditorium and stage-to-booth links, hospital departments with a shared equipment room, and command centres where operator panels sit well away from the processing rack. The plenum listing lets the run take the shortest ceiling path instead of chasing conduit.

Specifications at a Glance

• Length: 200 ft (61 m), pre-cut
• Rating: Plenum (CMP)
• Outer jacket: Blue fire-resistant PVC
• Shield DCR: 26 ohms/1,000 ft (85.3 ohms/km)
• Insulation: Gas-injected foamed FEP

Also referenced as Extron CTLP200, CTLP-200, part number 2646103.
