Extron CCR 30 Three-Button Contact Closure Remote Control Panel
- • Simple remote input selection for Extron switchers
- • Brushed aluminum buttons with visual LED feedback
- • Compatible with MPS 601 and similar tally outputs
- • Powered by optional Extron Everlast supply
- • Complements Cable Cubby Series/2 enclosures
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

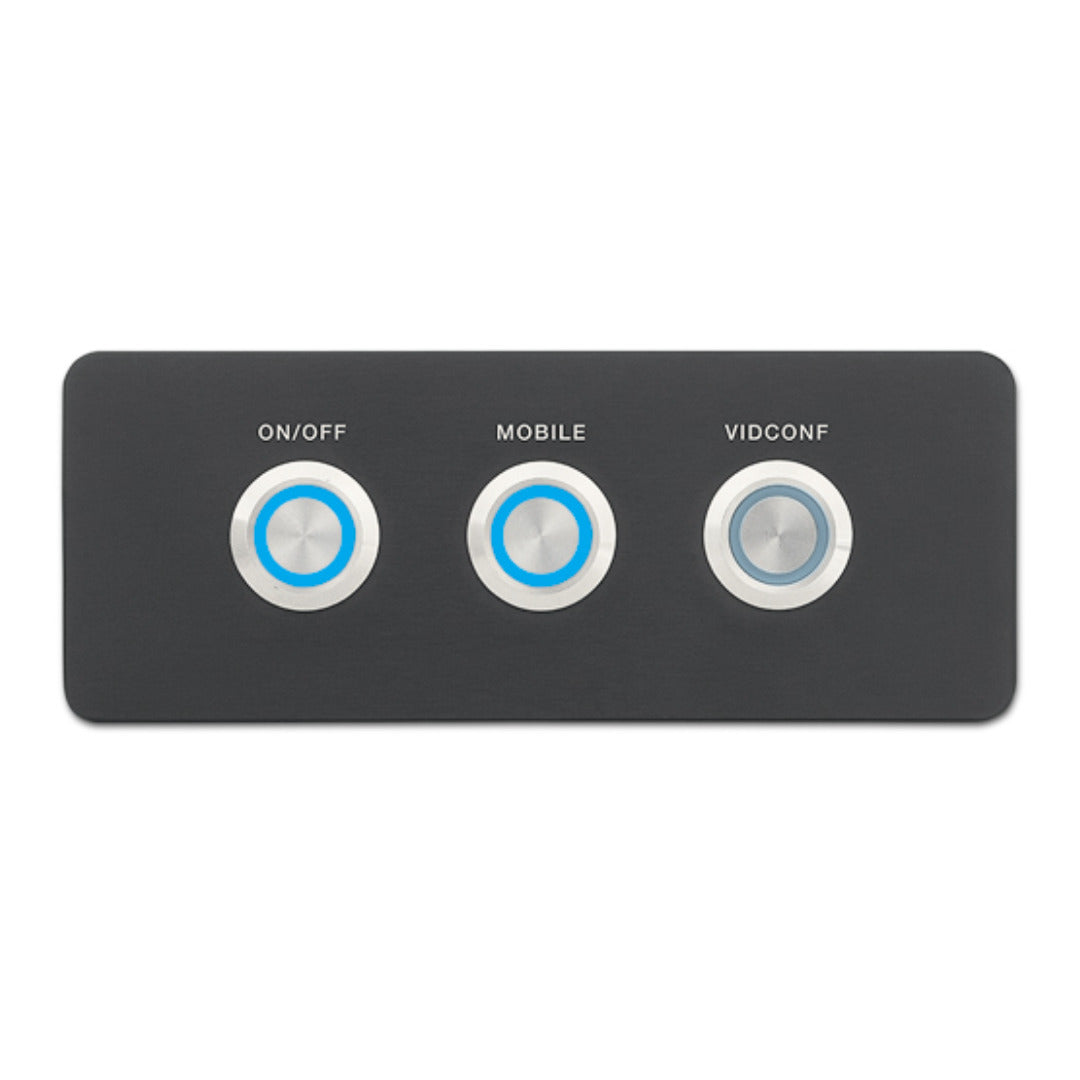

Part number 60-1446-02 — Three LED switches, black
The 60-1446-02 supplies three black switches with blue LED rings on a contact closure remote panel. Integrators connect it to switchers or control modules that accept contact closure signals, allowing remote input selection from a single location without dedicated control cabling.

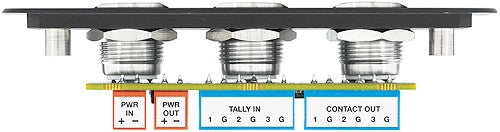

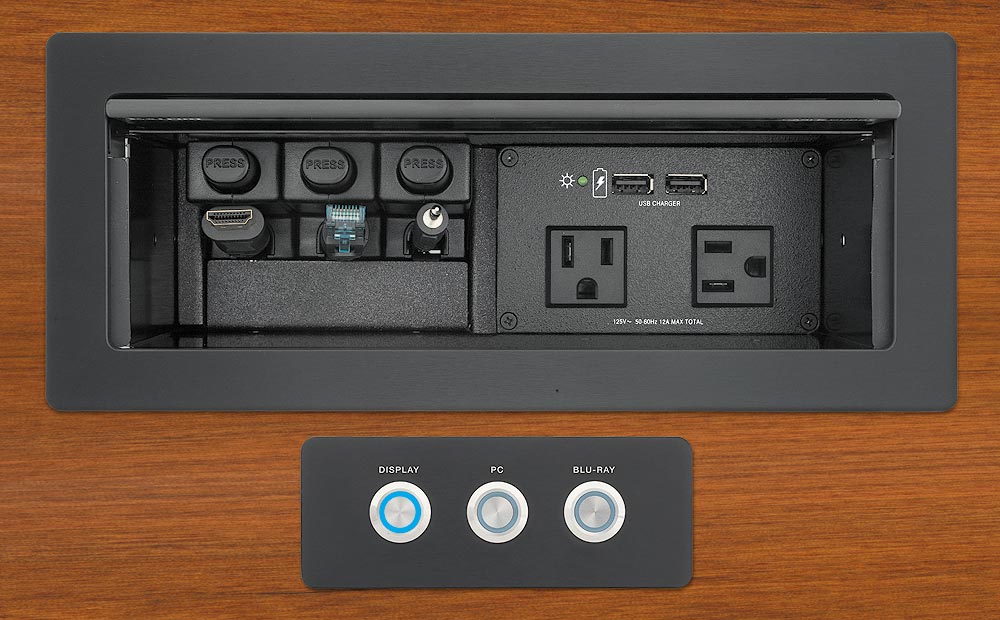

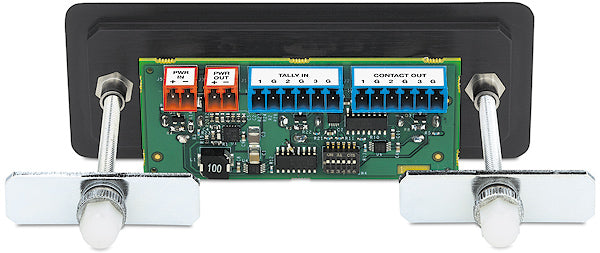

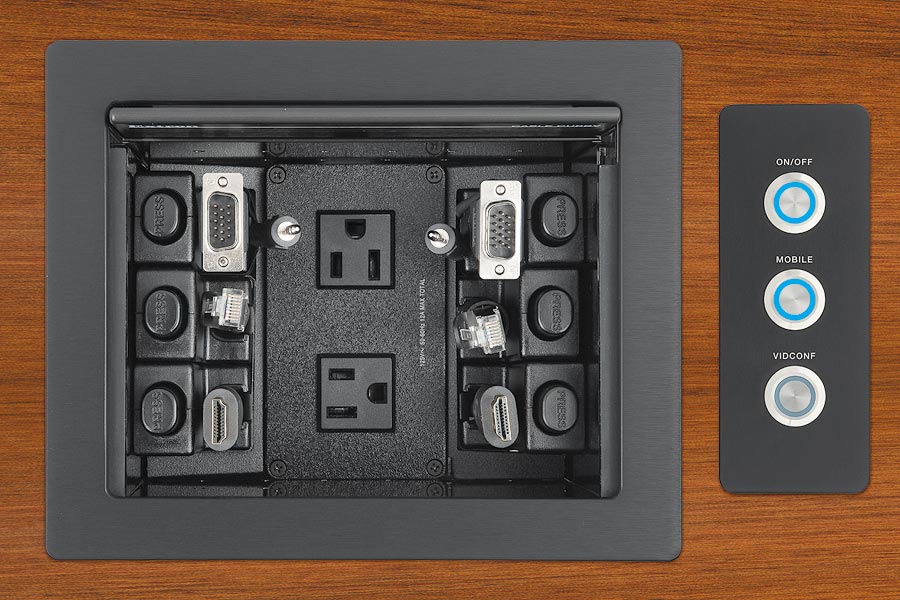

This version mounts in furniture for conference rooms, boardrooms or classrooms. Each switch can be set independently to latching or momentary action, with internal or external tally selection for the LEDs. Power is supplied at 12 VDC and a loop-out port permits sharing with another device. The anodized faceplate measures 1.75 in H by 4.5 in W by 0.2 in D. Consumption is 0.3 W at 12 VDC unloaded, and connections use two 3.5 mm 6-pole captive screw connectors plus one contact output port. Storage range is -13 to +131 °F at up to 90% noncondensing humidity.
Specifications
Specifications

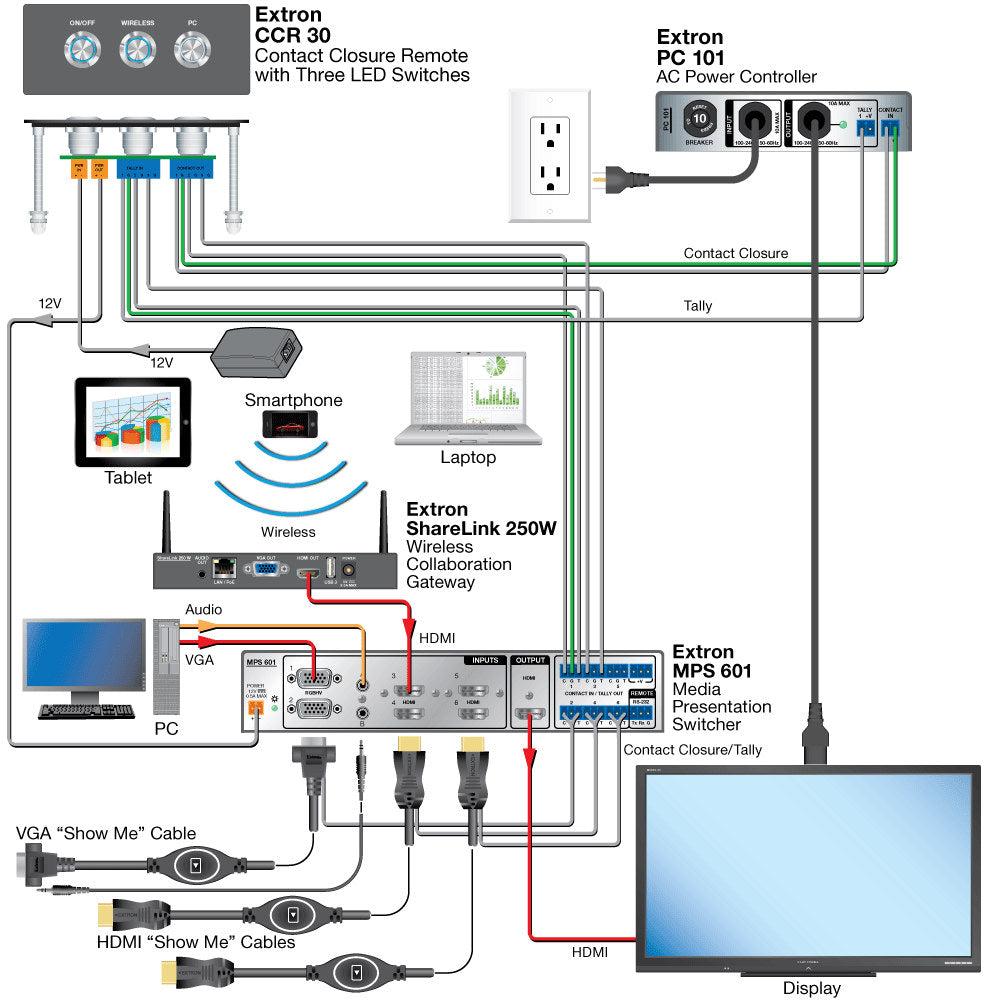

Diagram
