Extron CCD 320 (part number 70-1278-02) — the wide six-module Cable Cubby Drawer, doubling the connectivity of the CCD 220 while keeping the same slim 2.35 in profile.

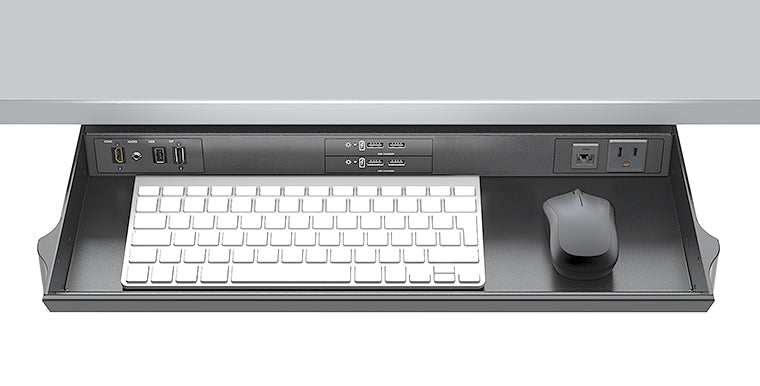

Where the smaller drawer suits a single user position, the CCD 320 is the choice when one table has to serve several seats or a mixed connector schedule. Its tray runs 19.92 in wide and carries six single-space or three double-space AAP AV Connectivity Modules, so HDMI, USB-C, network and control can all live in the same pull-out. Depth and height are unchanged from the 220, meaning the same clearance envelope beneath the furniture, and the same integrated track routes the cable loop as the drawer travels so nothing binds after repeated use.

Key Capabilities

• Six single-space or three double-space AAP AV Connectivity Modules
• 19.92 in wide interior tray — 12 in wider than the CCD 220
• Mounts directly beneath the furniture surface, no tabletop cutout

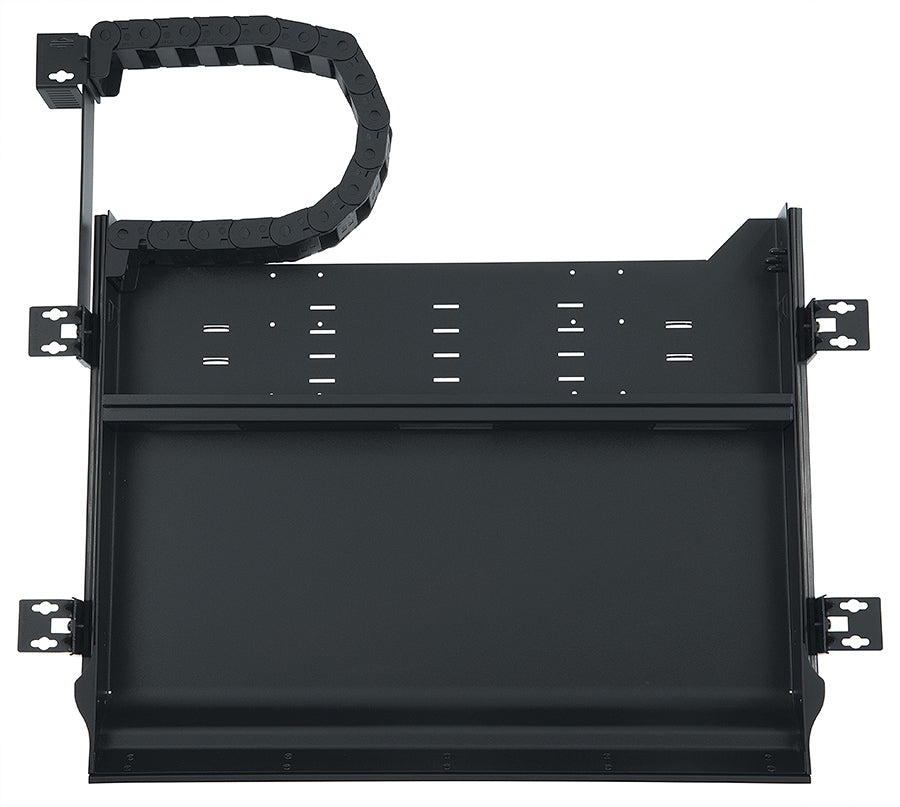

• Integrated track routes cables cleanly through the drawer travel
• Friction catch holds position when open and when closed

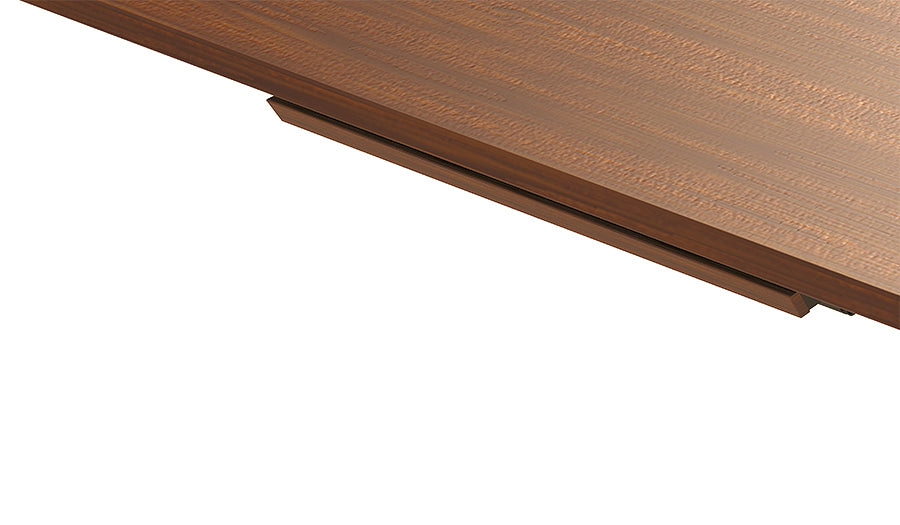

• Accepts a custom integrator-fitted façade to match the furniture
• Optional USB PowerPlate and AC AAP modules supply device power

Where It Is Used

Larger boardroom and council tables, multi-seat training benches, broadcast and control consoles, and hospitality or healthcare conference furniture where several people share one connectivity point and the surface must stay unbroken.

Specifications at a Glance

• Closed: 24.21 in W x 22.42 in D x 2.35 in H (614.9 x 569.5 x 59.7 mm)
• Extended: 24.21 in W x 32.67 in D x 2.35 in H (614.9 x 829.9 x 59.7 mm)
• Interior tray: 19.92 in W x 7.73 in D x 1.94 in H
• Weight: 8.8 lbs (4.0 kg)
• Compliance: UL, c-UL; 3-year parts and labor warranty

Also referenced as Extron CCD320, CCD-320, part number 70127802.
