Extron CCD 220 (part number 70-1277-02) — the four-module Cable Cubby Drawer, an under-table AV connectivity drawer that slides out when needed and disappears when it is not.

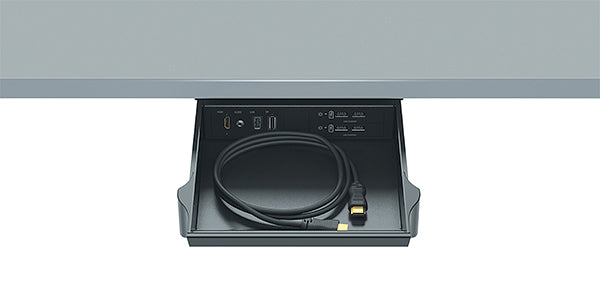

A drawer solves a problem that a fixed enclosure cannot: it keeps the tabletop completely uninterrupted. Nothing is cut into the surface, and the connectivity is out of sight until someone pulls it open. The CCD 220 mounts directly beneath the furniture and carries four single-space or two double-space AAP AV Connectivity Modules on its tray. An integrated cable track guides the service loop as the drawer travels, which is what stops cables binding or tangling after a few hundred cycles, and a friction catch holds the drawer at both ends of its travel rather than letting it drift.

Key Capabilities

• Holds four single-space or two double-space AAP AV Connectivity Modules

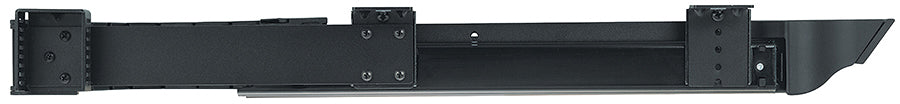

• Mounts directly beneath the furniture surface — the tabletop stays intact

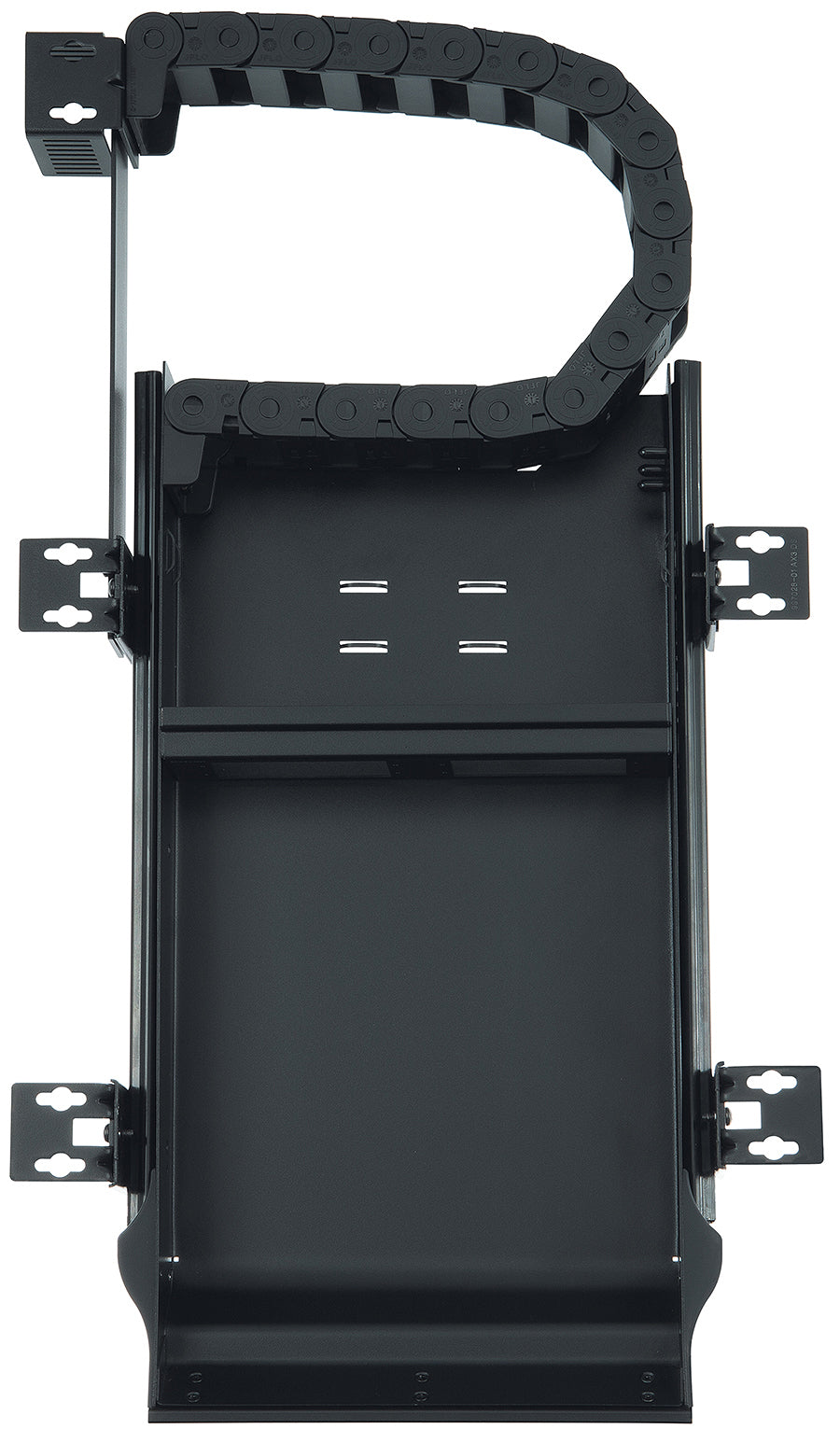

• Integrated cable track prevents binding and tangling as the drawer moves
• Friction catch secures the drawer both open and closed
• Integrator can fit a custom façade to the drawer front to match the furniture

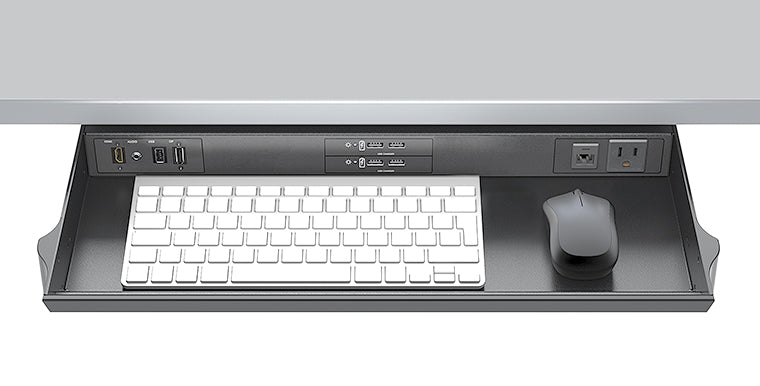

• Optional USB PowerPlate and AC AAP modules add device and laptop power
• Steel, aluminum and plastic construction; UL and c-UL listed

Where It Is Used

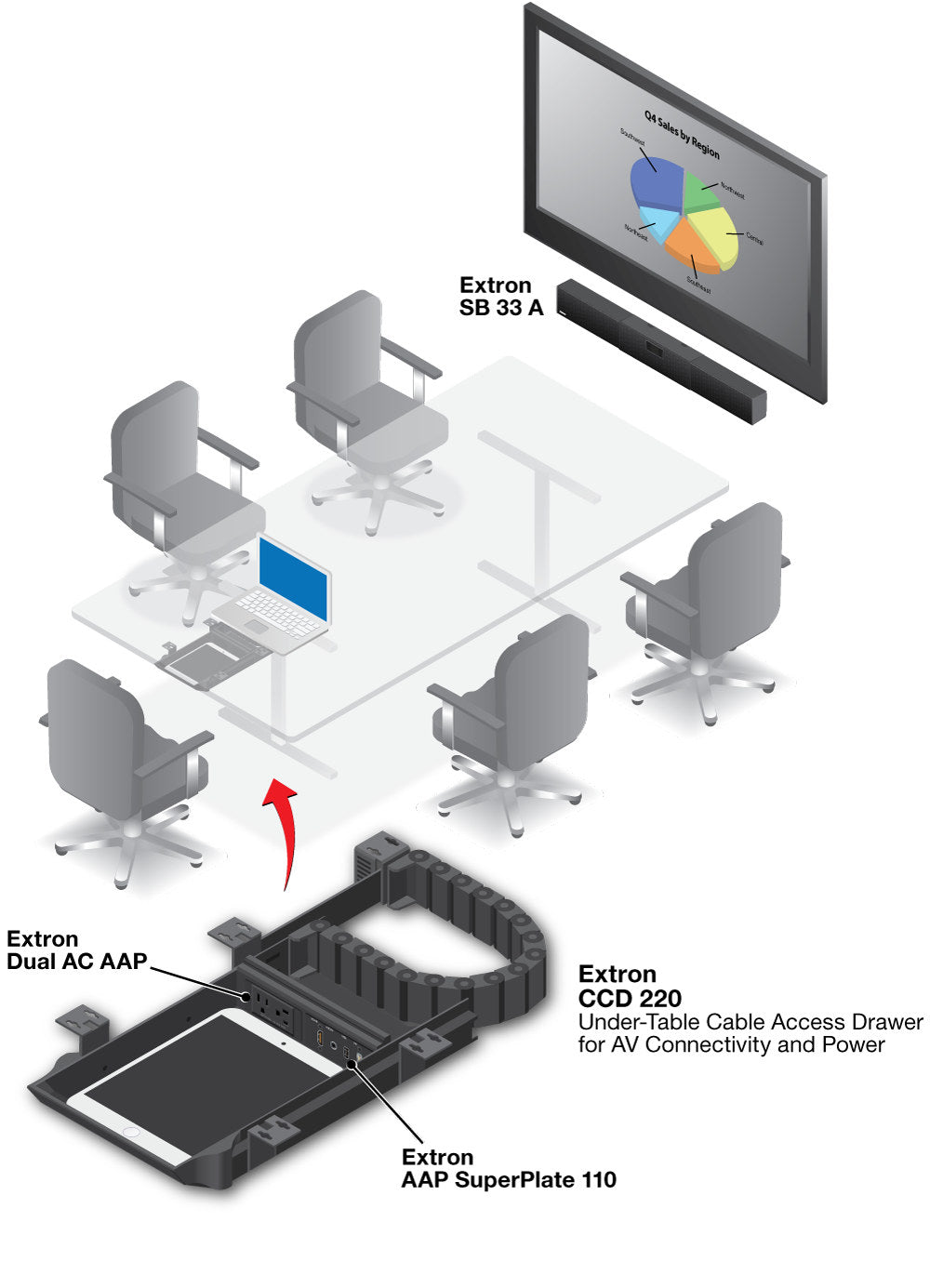

Executive boardrooms and high-specification joinery where the table finish is the design, plus courtrooms, council chambers, medical conference suites and hospitality meeting rooms in which connectivity must be available on demand yet invisible the rest of the time.

Specifications at a Glance

• Closed: 12.21 in W x 22.42 in D x 2.35 in H (310.1 x 569.5 x 59.7 mm)
• Extended: 12.21 in W x 32.67 in D x 2.35 in H (310.1 x 829.9 x 59.7 mm)
• Interior tray: 7.92 in W x 7.73 in D x 1.94 in H
• Weight: 5.9 lbs (2.7 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron CCD220, CCD-220, part number 70127702.
