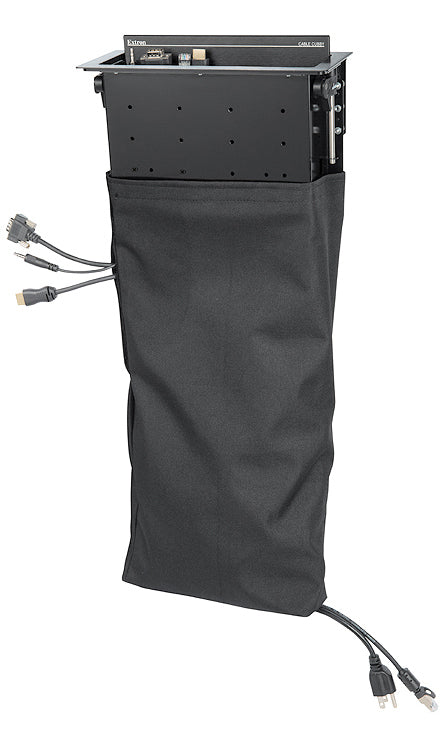

Extron CableCover – Small (part number 70-1080-03) — the narrow under-table cable bag matched to Extron's compact Cable Cubby enclosures.

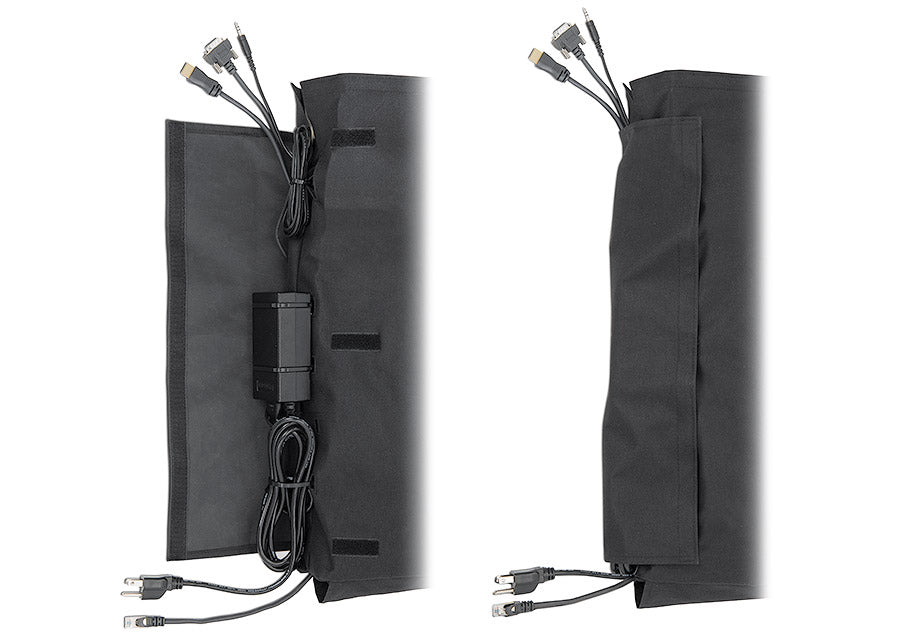

Compact enclosures create a specific problem: the enclosure itself is neat, but the loom hanging beneath it is not, and a full-width bag would look out of proportion under a small unit. At 6 in wide this version tracks the footprint of the smaller Cable Cubby models while keeping the same 21 in drop, so service loops stay contained and out of sight. It fastens at the base of the enclosure, and the fabric body adds effectively no weight to the furniture at 0.4 lbs.

Key Capabilities

• Sized for Cable Cubby 100, 200, 202, 300 and 500 / 500 CCB enclosures
• Mounts at the base of AVEdge, Cable Cubby Series/2 and TouchLink Cable Cubby enclosures
• 21 in H x 6 in W x 4 in D — narrow profile suited to compact units
• Weighs just 0.4 lbs, so nothing is loaded onto the enclosure
• Polyester fabric with a PVC coating for durability
• Meets California Technical Bulletin 117, Section E for flammability

Where It Is Used

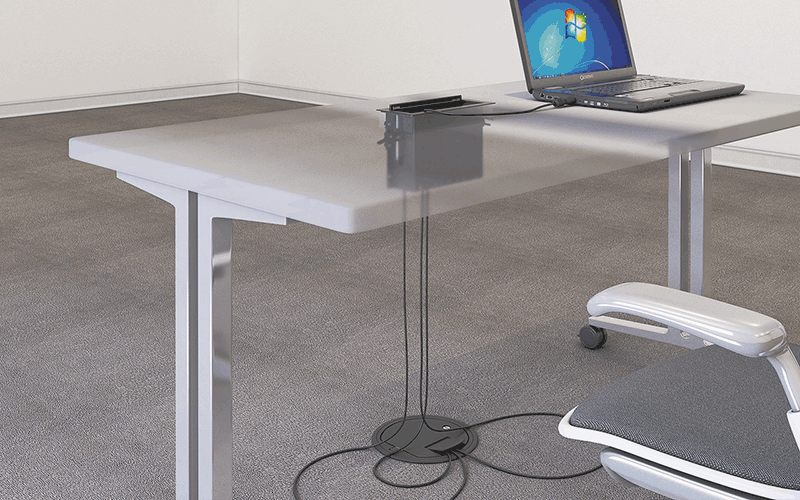

Huddle tables, single-user desks, small classroom instructor positions, lecterns and clinical carts built around compact Cable Cubby enclosures, where the cabling below is visible but a full-size bag would be oversized for the unit.

Specifications at a Glance

• Dimensions: 21 in H x 6 in W x 4 in D (53 x 15 x 10 cm)
• Weight: 0.4 lbs (0.2 kg)
• Material: polyester fabric with PVC coating
• Vibration: ISTA 1A in carton
• Warranty: 3 years parts and labor

Also referenced as Extron CableCoverSmall, CableCover-Small, part number 70108003.
