Extron CableCover – Large (part number 70-1080-02) — the wide under-table cable bag for higher-capacity Cable Cubby, AVEdge and TouchLink enclosures.

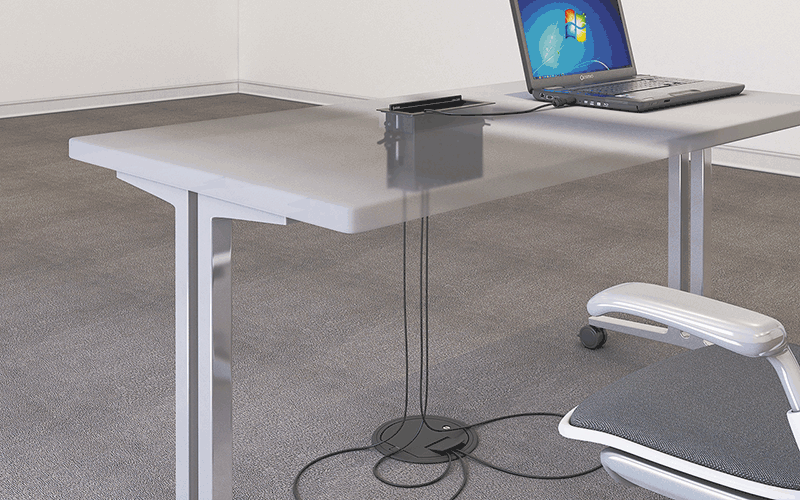

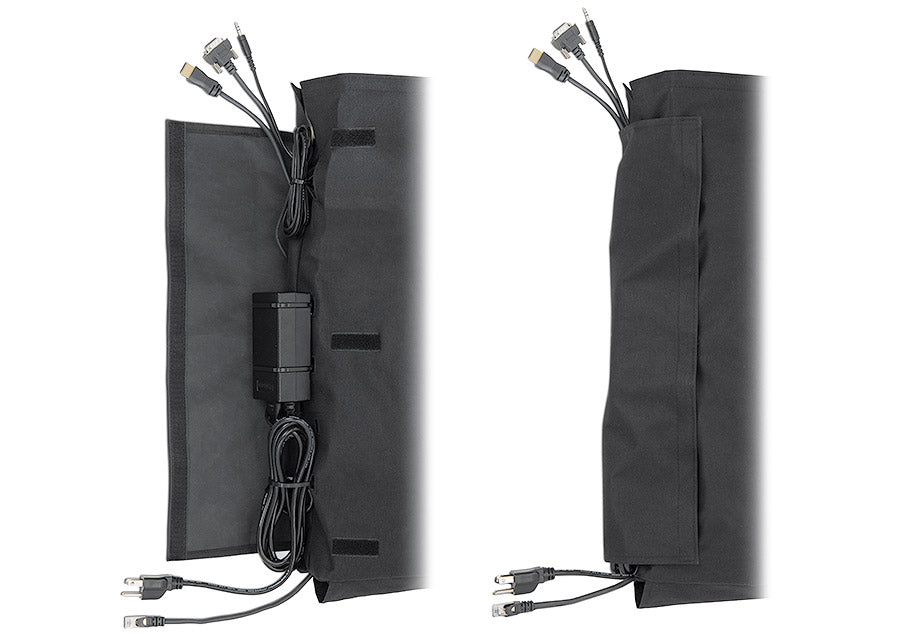

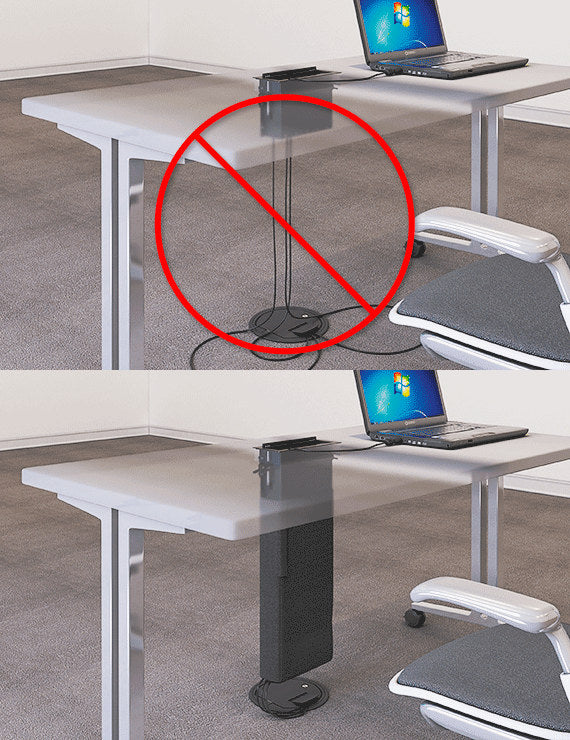

Cable management usually stops at the underside of the table, which is exactly where it starts to matter. This fitted bag mounts at the base of the enclosure and gathers the service loops and power leads that would otherwise hang in view or get caught by chairs and knees. At 10 in wide it is the larger of the two CableCover sizes, matched to enclosures that carry more cables or more retraction modules. Pass-through openings top and bottom let the bundle continue down to a floor box, and a covered side channel gives zip-tie points for cables and an Extron PS Series power supply.

Key Capabilities

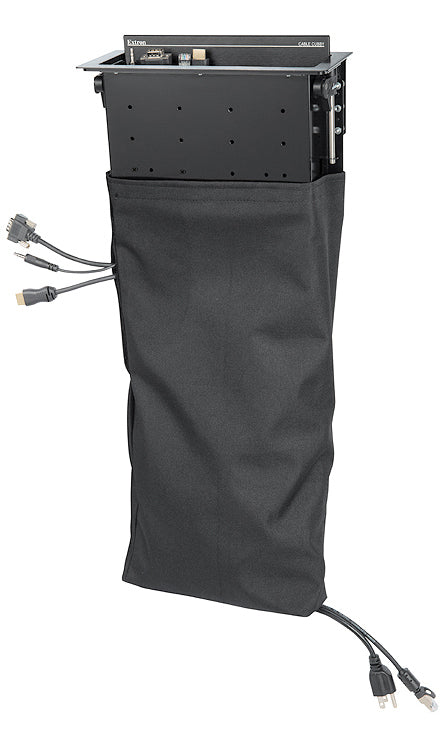

• Mounts at the base of AVEdge, Cable Cubby Series/2 and TouchLink Cable Cubby enclosures
• Listed for Cable Cubby 600, 650 UT, 700, 800, 1200 and 1400 enclosures
• Also for EBP 1200C, TLE 350, TLP Pro 320C, TLP 350CV and TLP Pro 725C
• 21 in H x 10 in W x 4 in D — the wider of the two CableCover sizes
• PVC-coated polyester fabric, weighing only 0.6 lbs
• Meets California Technical Bulletin 117, Section E for flammability

Where It Is Used

Conference and boardroom tables, courtroom benches, training desks and lecterns in spaces where people sit facing the underside of the furniture and a loose loom of cable would be both visible and vulnerable to accidental pulls.

Specifications at a Glance

• Dimensions: 21 in H x 10 in W x 4 in D (53 x 25 x 10 cm)
• Weight: 0.6 lbs (0.3 kg)
• Material: polyester fabric with PVC coating
• Vibration: ISTA 1A in carton
• Warranty: 3 years parts and labor

Also referenced as Extron CableCoverLarge, CableCover-Large, part number 70108002.
